YXHT-TW 2U 2KW Radio Transmitter Stereo Broadcast Free Shipping 6 Year Warranty
YXHT-TW 2U 2KW Radio Transmitter Stereo Broadcast Free Shipping 6 Year Warranty
Regular price
$2,680.00
Regular price
Sale price
$2,680.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Attributes
Brand: yxht
Certification: CE, FCC, ISO
Place Of Origin: China
Packaging & Delivery
| Selling Units: | Bag/Bags |
| Package Type: | Carton Wooden Box |
| Picture Example: |

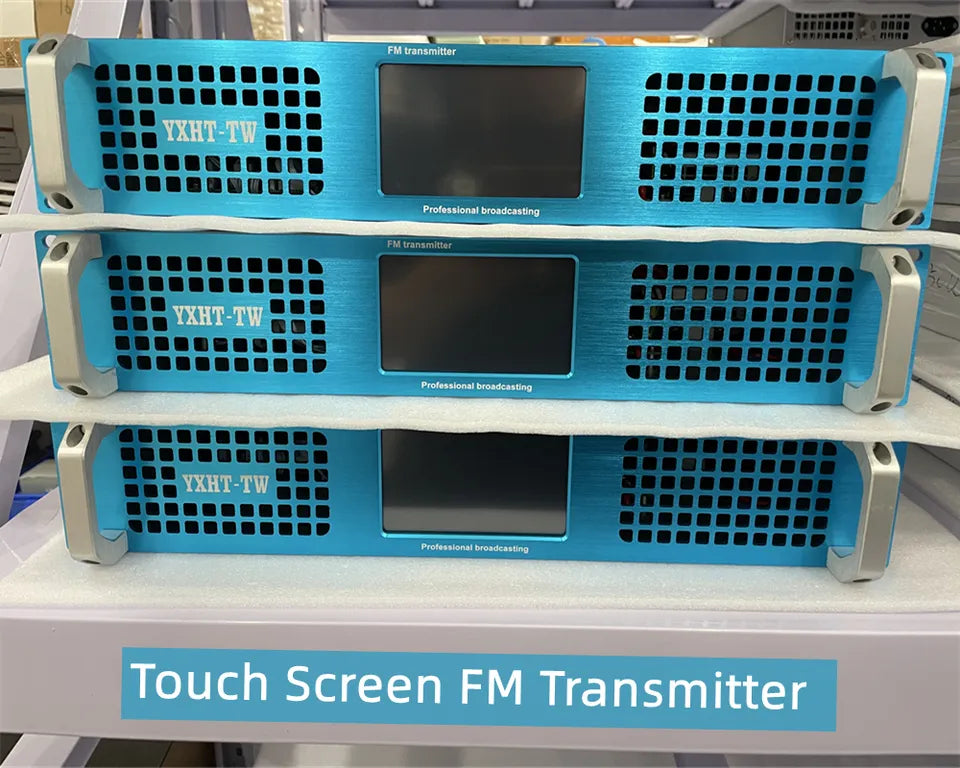

2000W YXHT-TW FM Transmitter Touch Screen Version
Details Images
The DSP(Digital Sound Processing) technology makes the 2000W YXHT-TW FM Transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions. As quality assurance, YXHT Provides 6 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.
Product Description
|
1. Frequency Range:
|
87.5MHz~108 MHz
|
|
2. Frequency Setting step:
|
10KHz
|
|
3. Carrier Frequency precision:
|
±200Hz
|
|
4. Residual Wave Radiation:
|
≥65dBc
|
|
5. Audio Input Impedance:
|
600Ω,Balance
|
|
6. Separation:
|
60dB Pilot Signal Modulation:8%~10%
|
|
7. Audio Input Level:
|
±10dBm,step 0.01dB
|
|
8. S/N:
|
≥75dB(30H~15kHz,100%)
|
|
9. Audio Harmonic Distortion:
|
<0.05%
|
|
10. Audio response:
|
±0.05dB(30Hz~15KHz)
|
|
11. Output Load Impedance:
|
50Ω
|
|
12. Output Power:
|
2000W
|
|
13. Pre-emphasis:
|
0μS,50μS,75μS
|
|
14. Deviation:
|
±75kHz
|
|
15. Pilot Frequency:
|
19 kHz±1Hz
|
|
16. Sub-carrier Suppression:
|
≥65dB
|
|
17.RF Output Connector:
|
7/16'(female)or7/8'Flange
|
|
18.Size:
|
460mm*480mm*88mm
|
|
19.Weight:
|
15KG
|
New Professional 2000W FM Broadcast Transmitter
The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter, DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
High performance and very good reliability has been proved by the large usage of 2000W YXHT-TW FM transmitters.Also it is low cost and small size.
High performance and very good reliability has been proved by the large usage of 2000W YXHT-TW FM transmitters.Also it is low cost and small size.
Warranty：The warranty of all transmitters in our factory is 6 years.
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 2000W YXHT-TW FM Transmitter is continuously adjustable from 0-2000 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...2000w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs.
