6 Bay Dipole Antenna
6 Bay Dipole Antenna
Regular price
$2,390.00
Regular price
Sale price
$2,390.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Attributes
Brand: yxht
Packaging & Delivery
| Selling Units: | Bag/Bags |
| Package Type: | Carton Wooden Box |
| Picture Example: |

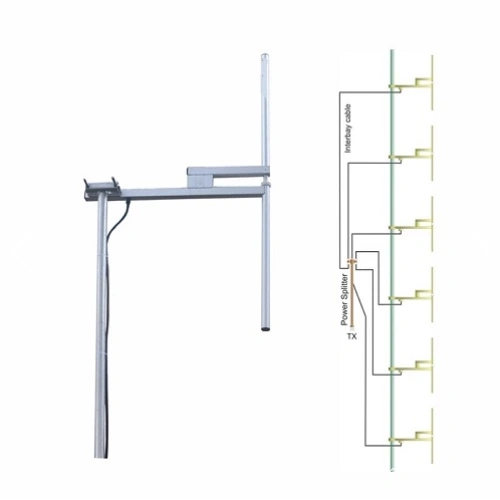

Dipole Antenna
Band II dipole
Broadband 87.5~108 MHz, 9.8dBd gain
Vertical Polarization
Omni directional pattern, Stainless steel
Broadband 87.5~108 MHz, 9.8dBd gain
Vertical Polarization
Omni directional pattern, Stainless steel
|
ELECTRICAL DATA
|
MECHANICAL DATA
|
||
|
Item
|
FM-DV1(HP)
|
Shape size (mm)
|
1360*1060*60
|
|
Impedance
|
50ohm
|
Weight
|
30kg
|
|
Frequency range
|
87.5-108MHz
|
Maximum wind speed
|
225km/h
|
|
Gain (relative half-wave dipole)
|
9.8dBd
|
Wind load
|
32kg.150Km/h
|
|
VSWR
|
<1.10
|
Mast diameter
|
φ50-100mm
|
|
Polarization
|
Vertical polarization
|
Material
|
External parts:stainless steel
|
|
Voltage standing wave ratio
|
<1.25(Full-bandwidth)
|
Internal parts:passivated aluminium
|
|
|
Rated input power
|
<1.10(Designated frequency)
1KW( FM-DV1) 3KW( FM-DV1HP) |
Internal parts:Copper
|
|
|
Matrix
|
The antenna is especially suitable for array
|
Fixture: Hot-dip zinc Steel
|
|
|
Input interface
|
7/16' or 7/8'
|
||
