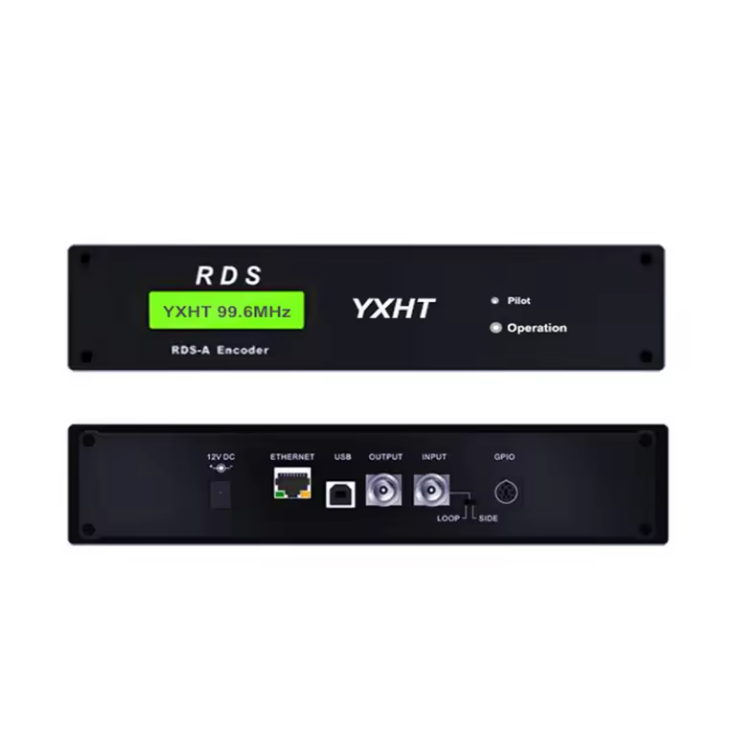

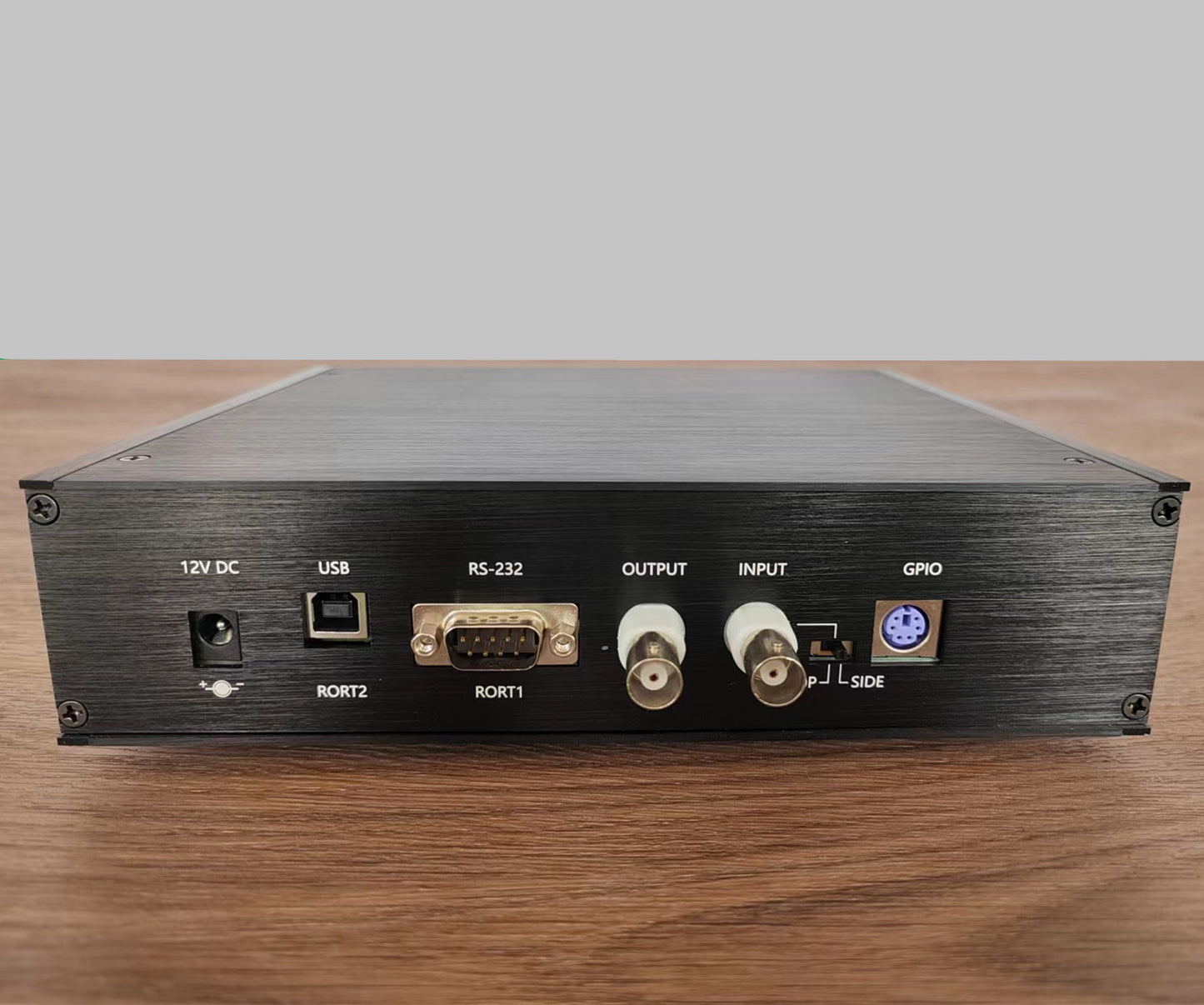

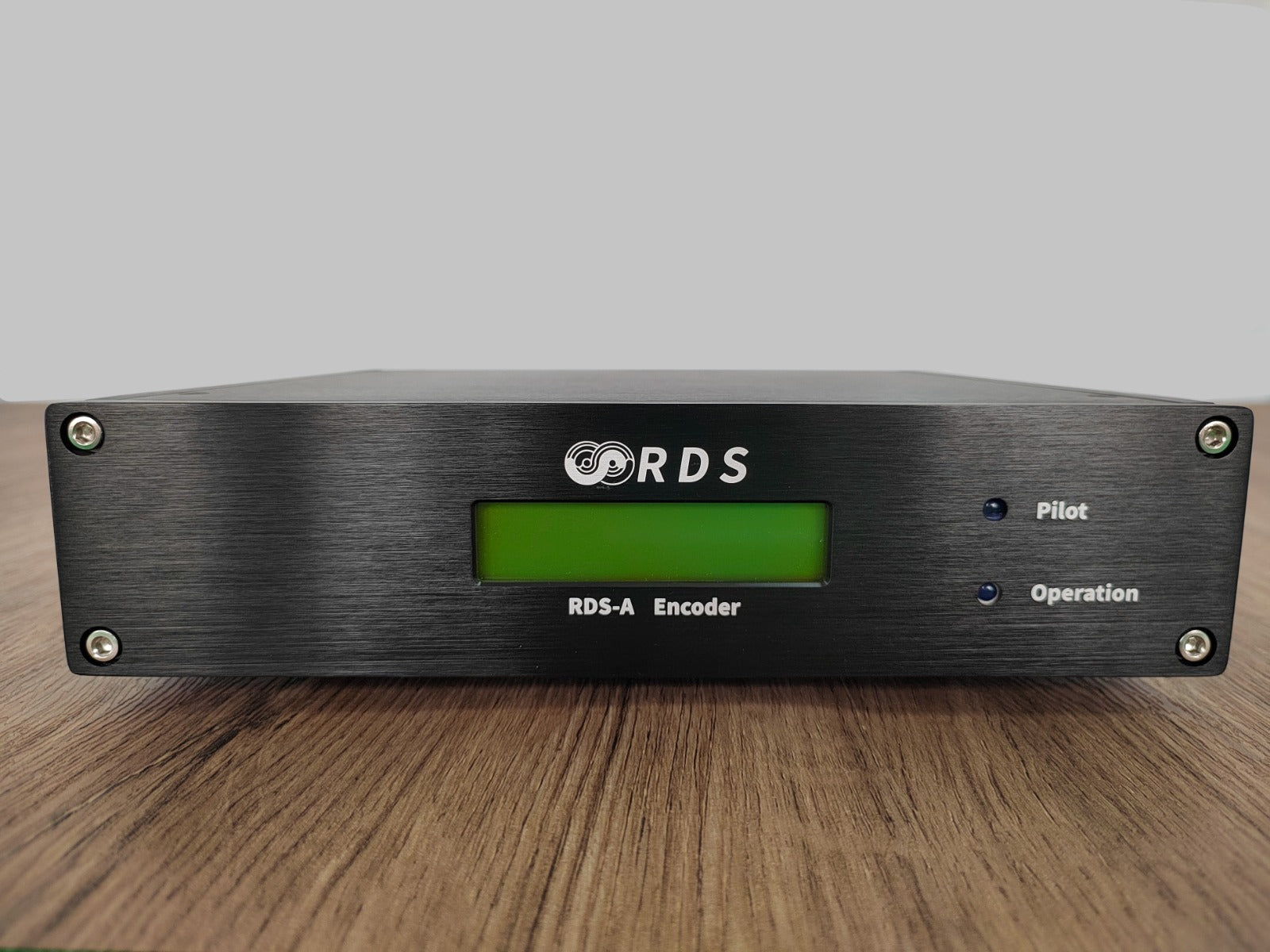

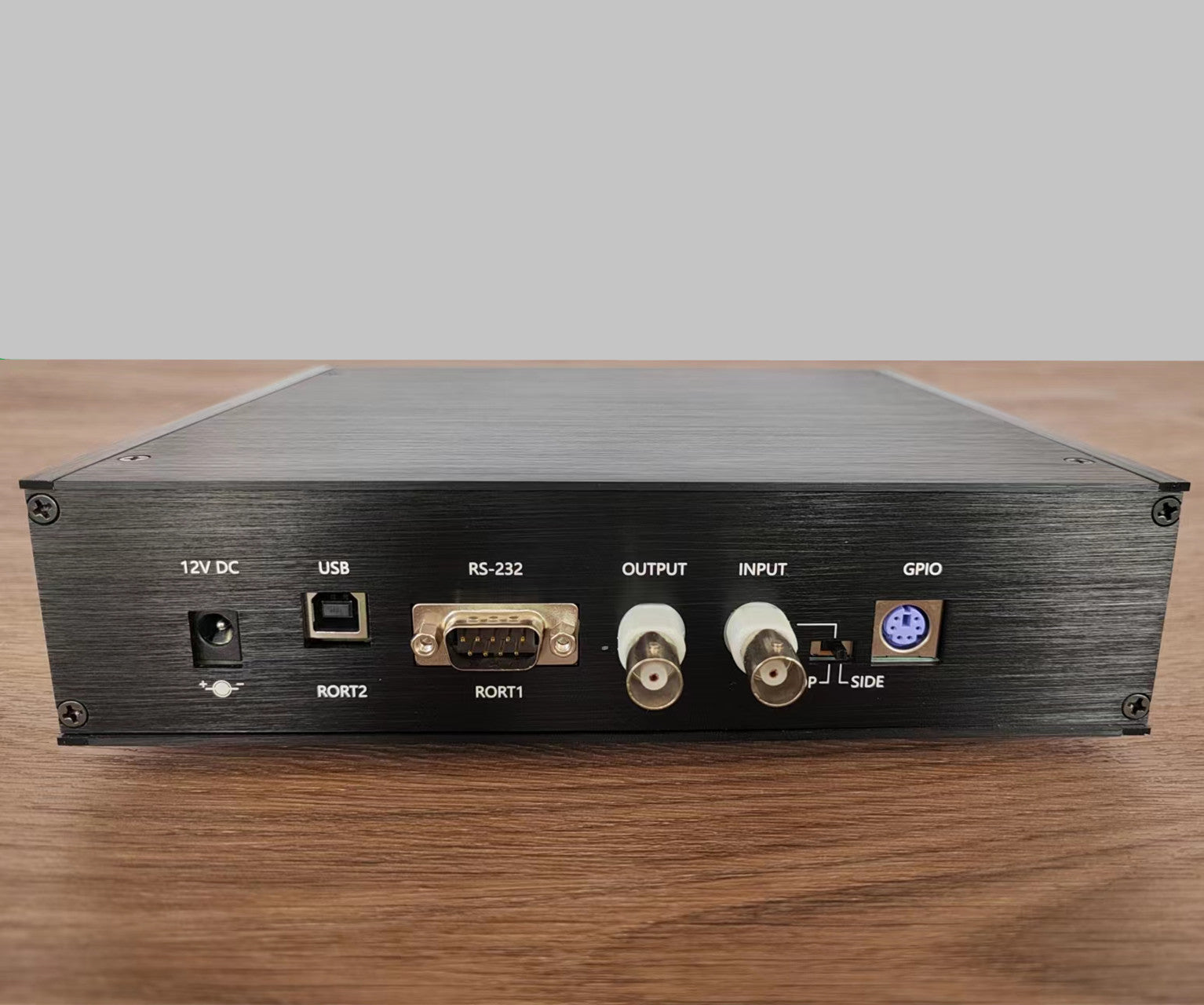

YXHT FM Broadcast RDS-A Encoder Radio Data System Encoder For FM Transmitter Radio Station
YXHT FM Broadcast RDS-A Encoder Radio Data System Encoder For FM Transmitter Radio Station
Regular price
$520.00
Regular price
$560.00
Sale price
$520.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Attributes
Brand: yxht
Certification: CE, FCC, ISO
Place Of Origin: China
Packaging & Delivery
Selling Units: | Bag/Bags |
Package Type: | Carton Wooden Box |
Picture Example: |
Digital RDS Encoder for FM Radio Station
![](http://sc04.alicdn.com/kf/H4d0b93910685470d83c9344a3ad5b2bdm/240044863/H4d0b93910685470d83c9344a3ad5b2bdm.jpg)
Overview
RDS-A Encoder is well suited for most regional, local, RSL, LPFM and other medium- and small-coverage radio stations which use Ethernet for dynamic RDS data distribution. Built-in Ethernet controller supports multiple TCP/UDP ports, internet functions and remote monitoring .
RDS-A Encoder have Fully DSP concept and effective design ensures high reliability, excellent signal characteristics and gives the user many advanced features while maintaining low acquisition costs.
![](http://sc04.alicdn.com/kf/H32734bde386e4de38e49ba7a42b00eadr/240044863/H32734bde386e4de38e49ba7a42b00eadr.jpg)
![](http://sc04.alicdn.com/kf/Hc7b035ab3fc046fc8fe4ca90468b9ba2u/240044863/Hc7b035ab3fc046fc8fe4ca90468b9ba2u.jpg)
![](http://sc04.alicdn.com/kf/H2fc23685cfb5487eab24646d743c9eceg/240044863/H2fc23685cfb5487eab24646d743c9eceg.jpg)
Specification
![](http://sc04.alicdn.com/kf/Hd49dcc7e52c64f47aa578a8cd1bb87ffm/240044863/Hd49dcc7e52c64f47aa578a8cd1bb87ffm.jpg)
![](http://sc04.alicdn.com/kf/H97a2f0fba1534b1093dd51677ea7cab56/240044863/H97a2f0fba1534b1093dd51677ea7cab56.jpg)
![](http://sc04.alicdn.com/kf/H7b90487291554e82badb768dc950d739j/240044863/H7b90487291554e82badb768dc950d739j.jpg)
Features
* Fully dynamic FM broadcast RDS encoder with up to four independent communication ports
* USB connectivity for local settings and maintenance purposes
* Ethernet connectivity for linking with broadcast automation system
* Control interface based on ASCII commands and UECP protocol
* Supports internet functions and remote monitoring* Bypass relay, high reliability
* Switchable MPX loopthrough mode (Loop/Side)
* Internal real-time clock incl. backup battery
* Excellent compatibility with broadcast automation systems
* Control software includes powerful Windows GUI application
* Supports control from external PHP/ASP scripts
* Easy and fast set-up* Two switchable program sets (with optional DSN and PSN setting)
* External TA and Program set switch
* Text features include dynamic PS, parsing, scrolling, tagging, fixed messages, scheduling and HTTP reading
* No special 19 kHz input needed - pilot tone internally recovered from MPX signal using digital PLL
* Excellent spectral purity, direct digital RDS signal synthesis; compliant with EN 50067 / EN 62106
* USB connectivity for local settings and maintenance purposes
* Ethernet connectivity for linking with broadcast automation system
* Control interface based on ASCII commands and UECP protocol
* Supports internet functions and remote monitoring* Bypass relay, high reliability
* Switchable MPX loopthrough mode (Loop/Side)
* Internal real-time clock incl. backup battery
* Excellent compatibility with broadcast automation systems
* Control software includes powerful Windows GUI application
* Supports control from external PHP/ASP scripts
* Easy and fast set-up* Two switchable program sets (with optional DSN and PSN setting)
* External TA and Program set switch
* Text features include dynamic PS, parsing, scrolling, tagging, fixed messages, scheduling and HTTP reading
* No special 19 kHz input needed - pilot tone internally recovered from MPX signal using digital PLL
* Excellent spectral purity, direct digital RDS signal synthesis; compliant with EN 50067 / EN 62106
