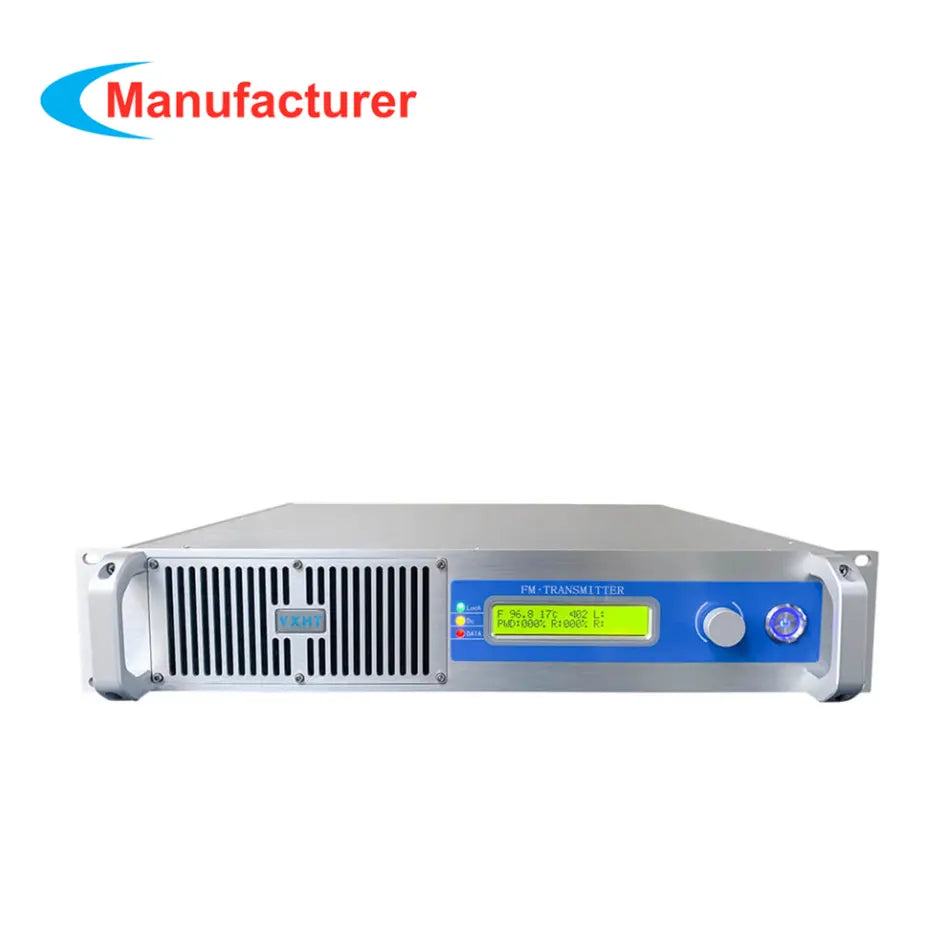

YXHT-1, 2KW 2U FM Transmitter Radio Broadcast Equipment

YXHT-1, 2KW 2U FM Transmitter Radio Broadcast Equipment

$2,350.00
$2,450.00 $2,350.00
Sale Sold out
Shipping calculated at checkout.
Product Attributes

Brand: yxht

Certification: CE，FCC, ISO

Place Of Origin: China

Packaging & Delivery
Selling Units: Bag/Bags
Package Type: Carton Wooden Box
Picture Example:
2KW FM Broadcast Transmitter

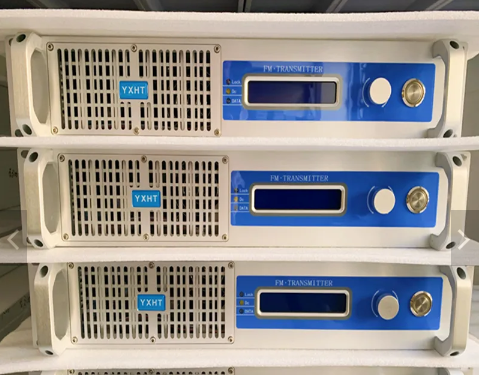

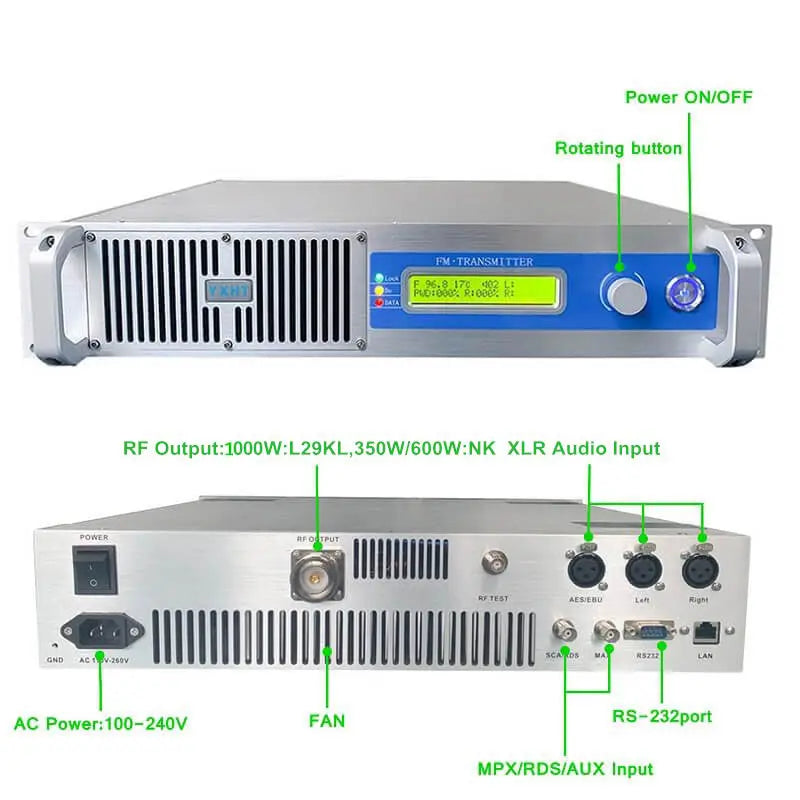

Details Images
The DSP(Digital Sound Processing) technology makes the YXHT- 2000W FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions. As quality assurance, YXHT Provides 6 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.
Warranty：The warranty of all transmitters in our factory is 6 years.
Product Description

2KW FM Broadcast Transmitter

New High Reliability 2000W FM Broadcast Transmitter
YXHT-2000C is a compact FM stereo broadcasting transmitters. The
advanced digital technologies, Digital Signal Processor (DSP) and
Digital Direct Synthesizer (DDS), are used in the transmitters to get
little size, high performance and high reliability. They are widely
used for professional radio stations to transmit high quality FM radio programs.

Features:

· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure

FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
1. Frequency Range:
87.5MHz~108 MHz
2. Output Power:
0~2000W
3. Output power deviation:
<± 10%
4. Output power stability:
<± 3%
5. Output Load Impedance:
50Ω 20. LR channel level difference:<0.1dB (100% modulation)
6. RF Output Interface:
7/16"(female) or 7/8"Flange
7. SFDR:
< -70dBM
8. High Harmonic:
< -65dBM
9. Residual Amplitude Modulation:
< -50dB
10.Carrier Frequency Precision:
±200Hz
11. Analog Audio Input:
-12dBm~+8dBm
12. Audio Input Level Gain:
-15dB~+15dB, step 0.1dB
13. Audio Input Impedance:
600Ω, Balance, XLR
14. AES / EBU input impedance:
110Ω, Balance, XLR
15. AES / EBU input level:
0.2 ~ 10Vpp
16. AES / EBU sample rate:
30kHz ~ 96kHz
17.SCA Input:
Unbalance (optional) BNC connector
18.Pre-emphasis:
0μS, 50μS, 75μS (optional)
19.Audio Response:
±0.1dB (30Hz~15000Hz)
20.Stereo Separation:
≥50dB 30Hz ~ 15000Hz
21.Stereo S/N ratio:
≥70dB 1KHz, 100% modulation
22.Distortion:
< 0.1% 30Hz~15000Hz
23.Cooling mode:
Forced Convection
24.Temperature Range:
-10°C~+45°C
25.Relative humidity:
<95%
26.Working Altitude:
<4500m
27.Power Consumption
3300VA
28.Size:
460mm*480mm*88mm
29.Weight:
15KG

OUTSTANDING FEATURES:

1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range. 2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile. 3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen. 4) ADJUSTABLE POWER OUTPUT The RF out of this 2kw FM transmitter is continuously adjustable from 0-2000 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...500w...1000w...2000w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
