600W FM Transmitter Touch Screen
600W FM Transmitter Touch Screen
Regular price
$1,680.00
Regular price
$1,880.00
Sale price
$1,680.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Attributes
Brand: yxht
Certification: Ce
Place Of Origin: China
Packaging & Delivery
| Selling Units: | Bag/Bags |
| Package Type: | Carton Wooden Box |
| Picture Example: |

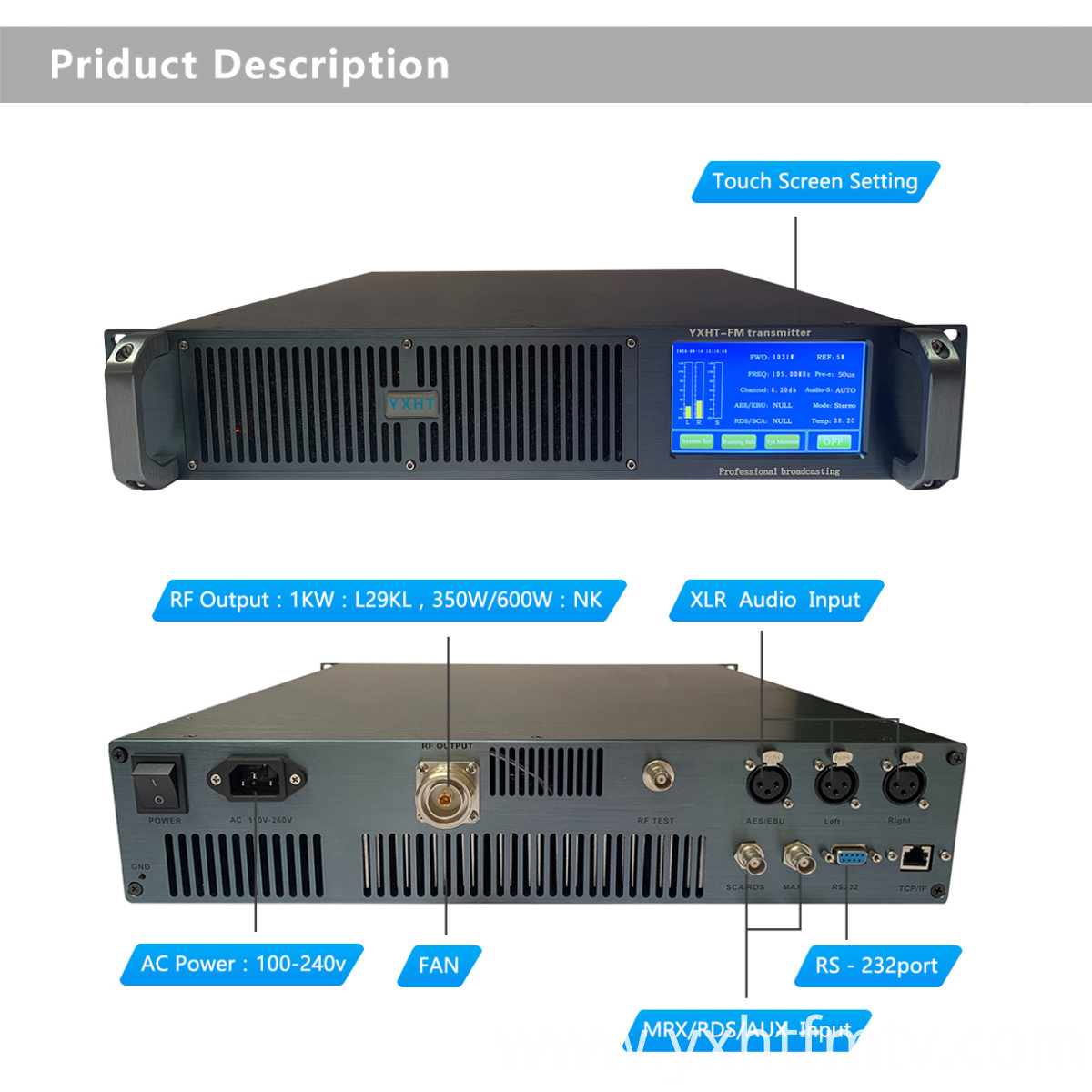

Overview
FM YXHT-2 600W/LIGHT stereo FM radio transmitter is an integrated high-quality FM transmitter that stereo-encodes the input left and right channel audio signals and adjusts the FM modulation to the broadcast band, then RF amplify to the 600W output power for wireless broadcasting. The transmitter adopts the most advanced software radio technology to achieve the international leading level of product performance indicators.
With a new large-scale field-programmable gate array (FPGA) and direct digital frequency synthesis (DDS) technology at up to 5G, the product achieves the highest technical specifications in the industry to date, providing listeners with a CD-like sound experience.
With a new large-scale field-programmable gate array (FPGA) and direct digital frequency synthesis (DDS) technology at up to 5G, the product achieves the highest technical specifications in the industry to date, providing listeners with a CD-like sound experience.
The product consists of audio interface unit, digital processing and frequency modulation unit, RF power amplifier unit,
human-machine interface unit, communication interface unit, clock synchronization unit and power supply unit. The transmitter is installed in a 19-inch 2U standard chassis, intensive design, small size and light weight. The whole transmitter is designed with high reliability, which makes the product run continuously and stably for a long time.
human-machine interface unit, communication interface unit, clock synchronization unit and power supply unit. The transmitter is installed in a 19-inch 2U standard chassis, intensive design, small size and light weight. The whole transmitter is designed with high reliability, which makes the product run continuously and stably for a long time.
Warranty: 6 years for all transmitters in our factory.
|
Technical specifications
|
|
|
1.Nominal emission frequency:
|
87MHz~108MHz (other frequencies can be customized), stepping 10kHz
|
|
2.Carrier frequency tolerance:
|
±200Hz
|
|
3.Output power:
|
0~600W continuously adjustable
|
|
4.Output power tolerance:
|
±1dB
|
|
5.Output impedance:
|
50Ω
|
|
6.RF output connector:
|
7/16”or7/8”
|
|
7.Residual wave radiation:
|
<-70dB
|
|
8.Parasitic amplitude modulation noise:
|
<-50dB
|
|
9.Pilot frequency deviation:
|
±0.1Hz
|
|
10.38KHz residual component in the S signal:
|
< -50dB
|
|
11.100% modulation frequency offset:
|
±75KHz (maximum modulation frequency offset 112.5KHz)
|
|
12.Audio pre-emphasis:
|
0μs/25μs/ 50μs/75μs optional
|
|
13.Distortion:
|
<0.05% (30Hz ~ 15000Hz, 100% modulation)
|
|
14.Frequency response:
|
±0.1dB (no emphasis, no de-emphasis); ±0.2dB (emphasis, de-emphasis)
|
|
15.Signal to noise ratio:
|
≥88dB (1kHz, 100% modulation)
|
|
16.Stereo resolution:
|
≥70dB (L→R, R→L)
|
|
17.Left and right channel level difference:
|
<0.05dB (100% modulation)
|
|
18.Analog audio input:
|
-12dBm ~ +8dBm
|
|
19.Analog audio input impedance:
|
600Ω balance
|
|
20.AES input impedance :
|
110Ω balance
|
|
21.AES input level:
|
0.2~10Vpp
|
|
22.AES sampling rate:
|
30kHz ~ 96kHz
|
|
23.Audio Level Gain:
|
-15dB~+15dB Step 0.1dB
|
|
24. Heat dissipation method:
|
Forced convection
|
|
25. Power supply voltage:
|
100VAC~265VAC/ 47Hz~63Hz
|
|
26.Chassis Standard:
|
19"
|
|
27.Operating environment temperature:
|
-10 ° C ~ +45 ° C
|
|
28.Relative humidity:
|
<95%
|
|
29.Altitude:
|
<4500m
|
Technical characteristics and principle block diagram
Product technology has the following technical features:
• Full process digital processing to achieve a perfect auditory effect of CD-like sound quality
• Full-scale digital processing with large-scale field-programmable gate array (FPGA) technology
• Direct digital frequency synthesis (DDS) technology at speeds up to 5G to peak transmitter specifications
• High reliability microprocessor (ARM) technology as the primary controller
• Support for multiple audio source inputs (transmitters can be automatically selected by priority):
AES/EBU digital audio signal input (highest priority)
Analog stereo analog audio signal input (2nd priority)
MPX stereo composite signal input (3rd priority)
• Supports one RDS or SCA subcarrier input
• Upgradeable to FM synchronous broadcast transmitter
• Electronically controlled AGC controls output power zero drift
• Perfect over-current, over-voltage, over-temperature, over-power, standing wave ratio alarm and protection
• One-touch shuttle quick keyboard input

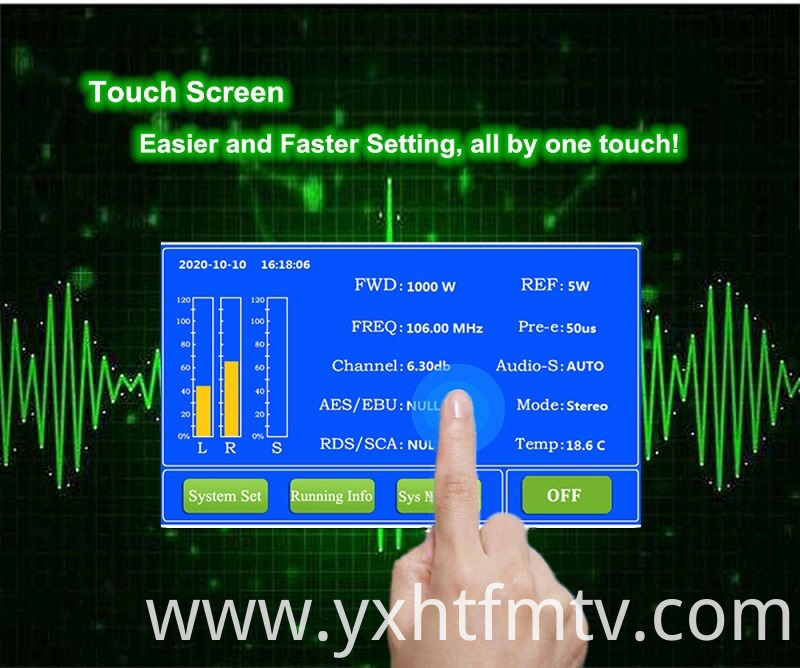

• Real-time display of operating parameters using OLED
• With TCP/IP, RS232 communication interface
• 19-inch standard chassis, height 2U
• Full process digital processing to achieve a perfect auditory effect of CD-like sound quality
• Full-scale digital processing with large-scale field-programmable gate array (FPGA) technology
• Direct digital frequency synthesis (DDS) technology at speeds up to 5G to peak transmitter specifications
• High reliability microprocessor (ARM) technology as the primary controller
• Support for multiple audio source inputs (transmitters can be automatically selected by priority):
AES/EBU digital audio signal input (highest priority)
Analog stereo analog audio signal input (2nd priority)
MPX stereo composite signal input (3rd priority)
• Supports one RDS or SCA subcarrier input
• Upgradeable to FM synchronous broadcast transmitter
• Electronically controlled AGC controls output power zero drift
• Perfect over-current, over-voltage, over-temperature, over-power, standing wave ratio alarm and protection
• One-touch shuttle quick keyboard input
• Real-time display of operating parameters using OLED
• With TCP/IP, RS232 communication interface
• 19-inch standard chassis, height 2U

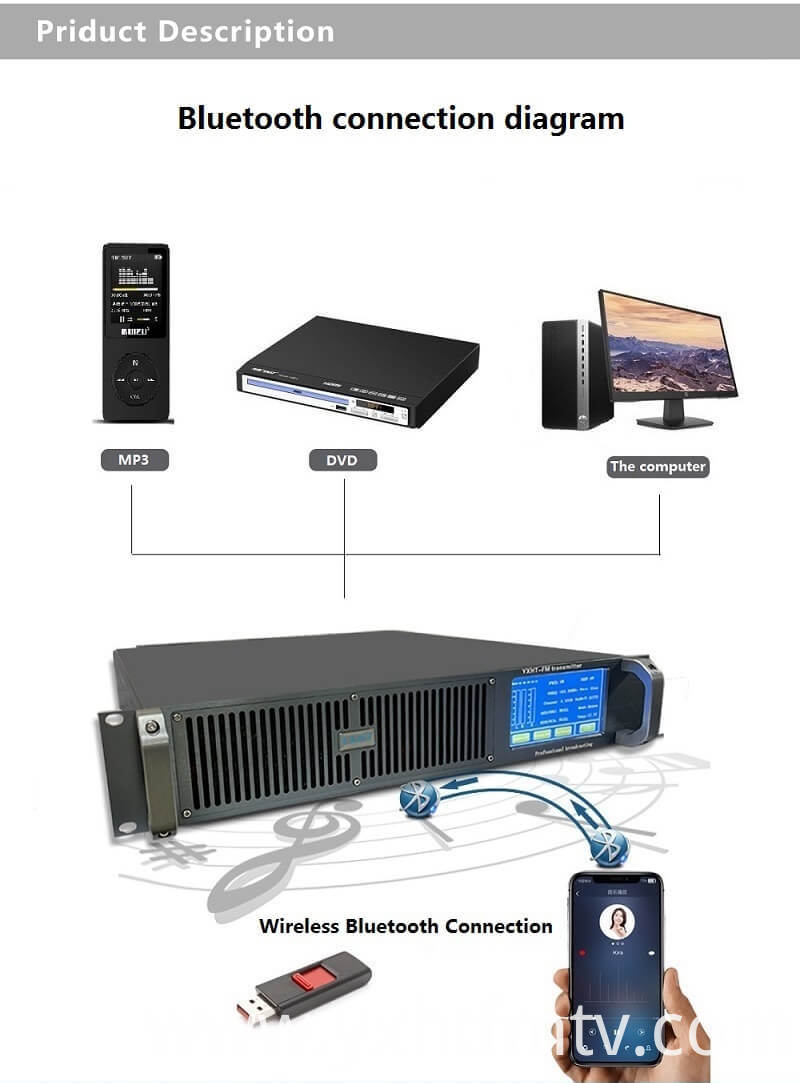

AI Smart 5.0 BT Audio Receiver / U Disk / FM playback / Computer Upgrade Wireless Module
5.0 BT + U disk TF card playback + FM + audio input + AI song + computer + MP3 player + mobile phone
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
EXAMPLE 5W Fm Transmitter use in the city and hometown:
I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).
I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).
I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W Fm Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM
Certifications
Exhibition
Packing & Delivery
Company Overview
We are original manufacturer specialized in professional FM & TV transmitters, Antennas, Digital audio equipments, etc. We are serving thousands of Radio & TV stations all over the world. Also we do ODM or OEM for companies all over the world. We are using advanced technology in all products. Our products are all High performance, High reliability and Reasonable price.
As a high-tech enterprise registered in and approved by liaoning Administration of Industry and Commerce, YXHT(China)Technology Electronics Co., Ltd the designated Wireless Transmission Equipment production enterprise by Ministry of Information Industry, it is the enterprise which has the radio transmission equipment network certification by State Administration of Radio Film and Television, and it is one of the major radio equipment supplier in China.
YXHT is engaged in R & D; production; marketing; engineering installation and after-sales service of FM Radio & TV Wireless Broadcasting Equipment in professional. The leading products of YXHT include: FM Radio Transmitter; TV Transmitter; Digital Radio Exciter; Digital TV Transmitter; FM & TV Antenna; Digital Audio Equipment; Transmitter Telemetry & Remote Control Management System etc.
YXHT adopted by ISO9001 International Quality Management System; wireless transmission equipment production license certification; FM Radio & TV equipment network certification.
As a high-tech enterprise, YXHT has gathered a batch of outstanding talents of science; technology and management. YXHT can adhering to orientation of independent research and development by relying on the R & D team with their strong capability of tackling problems and hard working spirit; and a management team with rich experience. In addition, YXHT has attached great importance to foreign communication and cooperation; actively introduces and sells the advanced wireless equipment from abroad. Meanwhile, YXHT also pays close attention to the international advanced technologies. TXHT devotes itself to providing quality technologies and service for national radio & television department.
As a high-tech enterprise registered in and approved by liaoning Administration of Industry and Commerce, YXHT(China)Technology Electronics Co., Ltd the designated Wireless Transmission Equipment production enterprise by Ministry of Information Industry, it is the enterprise which has the radio transmission equipment network certification by State Administration of Radio Film and Television, and it is one of the major radio equipment supplier in China.
YXHT is engaged in R & D; production; marketing; engineering installation and after-sales service of FM Radio & TV Wireless Broadcasting Equipment in professional. The leading products of YXHT include: FM Radio Transmitter; TV Transmitter; Digital Radio Exciter; Digital TV Transmitter; FM & TV Antenna; Digital Audio Equipment; Transmitter Telemetry & Remote Control Management System etc.
YXHT adopted by ISO9001 International Quality Management System; wireless transmission equipment production license certification; FM Radio & TV equipment network certification.
As a high-tech enterprise, YXHT has gathered a batch of outstanding talents of science; technology and management. YXHT can adhering to orientation of independent research and development by relying on the R & D team with their strong capability of tackling problems and hard working spirit; and a management team with rich experience. In addition, YXHT has attached great importance to foreign communication and cooperation; actively introduces and sells the advanced wireless equipment from abroad. Meanwhile, YXHT also pays close attention to the international advanced technologies. TXHT devotes itself to providing quality technologies and service for national radio & television department.
YXHT will keep going as always with customer-centered orientation and quality principle of independent innovation; superior quality; sincere service; sustainable development and whole-heartedly provide all-dimensional products and service for customers old and fresh.
Company Photos
FAQ
In order to be more comprehensive understanding of the knowledge about our products,we collect all the analyses of problems for every order,hope it will help you.
Q1: Is your company a manufacturer or a trading company?
A: We are a transmitter manufacturer located in Anshan, Liaoning, China.
Q2: I am very interested in your product, can you send me your full catalog and price list?
A:We can select some popular products for you immediately. Please let us know your requirements so that we can send the quotation to you.
Q3: What's the payment method you accept?
A:30% deposit T/T in advance, the 70% balance must be paid before the delivery normally,about special condition, we can discuss and solve it.
Q4. What are these equipments used for?
A. We are original manufacturer in FM Radio & TV Broadcasting equipments; they are professional used for FM Radio & TV Broadcasting Station (Transmitting equipments.)
Q5. What equipment & solution does your company can provide?
A. We can do complete solution for FM Radio Station System. It includes:Studio--Link--Transmitter--Cables--Antenna.
We also can provide complete Transmitting part of TV Station. It includes:Link—Transmitter—Cables—Antenna.
Q6. How large areas can One Station cover?
A. One FM or TV Station can cover one city or one town.
The Maximum cover ranges of one station can not exceed 100KM Radius because the Earth is Curve.
You can use multiple Stations and different frequency to cover larger area.
Q7. How do I choose suitable equipments for my station?
A. The most import factors are power and frequency.
We need to know the power and frequency you need exactly.
What's the distance do you want to cover in Radius?
What's the height can your antenna can be installed?
Q8. How to calculate the cover range of the broadcasting equipments?
A. The cover range depends on 4 factors:
1. Power from transmitter; 2. The height of antenna; 3. Gain from antenna; 4. Environment around.
Then we can know the cover range of your station.
Q9. Is the Frequency Adjustable?
A. FM Radio Band Frequency is 87~108MHz, TV Band Frequency includes UHF/VHF band.
For FM Radio Transmitter; Power Below 2KW is all adjustable. Above 2KW would be narrow.
For TV Transmitter; all Frequency Band is very Narrow, only can contain around 3 Channels; so it’s not adjustable.
Q10. Is it available for your analog TV transmitter to be upgraded to digital?
A. Yes. But the frequency bands should be the same.
The only difference between analog and digital TV transmitter is its TV modulator.
After upgraded to digital, the power from TV transmitter reduced 5 times.
For example: 1KW analog TV transmitter can be upgraded to 200W digital TV Transmitter.
Q11. How to do installation of these equipments?
A. For small power station, the equipments are very easy for installation.
For large power station, we can send our engineer to your country to help you do the installation, but you should pay the cost.
We also can do training for your engineer here in our company
Q12. How to operate these broadcasting equipments?
A. We will provide all English version user manual and operation software together with our equipments.
We also can do training for your engineer here in our company.
Q13. What about after sales?
A. The warranty time is one year after goods leaving factory.
We can provide technical support on line or in our company.
We can send spare parts to you directly when the equipment damaged.
Q1: Is your company a manufacturer or a trading company?
A: We are a transmitter manufacturer located in Anshan, Liaoning, China.
Q2: I am very interested in your product, can you send me your full catalog and price list?
A:We can select some popular products for you immediately. Please let us know your requirements so that we can send the quotation to you.
Q3: What's the payment method you accept?
A:30% deposit T/T in advance, the 70% balance must be paid before the delivery normally,about special condition, we can discuss and solve it.
Q4. What are these equipments used for?
A. We are original manufacturer in FM Radio & TV Broadcasting equipments; they are professional used for FM Radio & TV Broadcasting Station (Transmitting equipments.)
Q5. What equipment & solution does your company can provide?
A. We can do complete solution for FM Radio Station System. It includes:Studio--Link--Transmitter--Cables--Antenna.
We also can provide complete Transmitting part of TV Station. It includes:Link—Transmitter—Cables—Antenna.
Q6. How large areas can One Station cover?
A. One FM or TV Station can cover one city or one town.
The Maximum cover ranges of one station can not exceed 100KM Radius because the Earth is Curve.
You can use multiple Stations and different frequency to cover larger area.
Q7. How do I choose suitable equipments for my station?
A. The most import factors are power and frequency.
We need to know the power and frequency you need exactly.
What's the distance do you want to cover in Radius?
What's the height can your antenna can be installed?
Q8. How to calculate the cover range of the broadcasting equipments?
A. The cover range depends on 4 factors:
1. Power from transmitter; 2. The height of antenna; 3. Gain from antenna; 4. Environment around.
Then we can know the cover range of your station.
Q9. Is the Frequency Adjustable?
A. FM Radio Band Frequency is 87~108MHz, TV Band Frequency includes UHF/VHF band.
For FM Radio Transmitter; Power Below 2KW is all adjustable. Above 2KW would be narrow.
For TV Transmitter; all Frequency Band is very Narrow, only can contain around 3 Channels; so it’s not adjustable.
Q10. Is it available for your analog TV transmitter to be upgraded to digital?
A. Yes. But the frequency bands should be the same.
The only difference between analog and digital TV transmitter is its TV modulator.
After upgraded to digital, the power from TV transmitter reduced 5 times.
For example: 1KW analog TV transmitter can be upgraded to 200W digital TV Transmitter.
Q11. How to do installation of these equipments?
A. For small power station, the equipments are very easy for installation.
For large power station, we can send our engineer to your country to help you do the installation, but you should pay the cost.
We also can do training for your engineer here in our company
Q12. How to operate these broadcasting equipments?
A. We will provide all English version user manual and operation software together with our equipments.
We also can do training for your engineer here in our company.
Q13. What about after sales?
A. The warranty time is one year after goods leaving factory.
We can provide technical support on line or in our company.
We can send spare parts to you directly when the equipment damaged.
