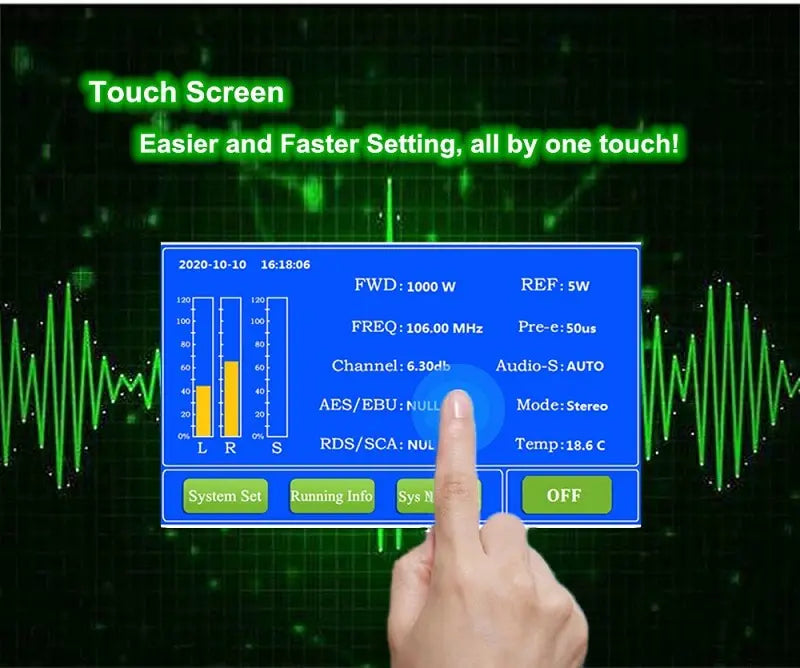

Touch screen 1000W 1kw FM Transmitter complete package for radio station
Touch screen 1000W 1kw FM Transmitter complete package for radio station
Regular price
$2,770.00
Regular price
$2,778.00
Sale price
$2,770.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Attributes
Brand: yxht
Certification: CE, FCC, ISO
Place Of Origin: China
Packaging & Delivery
Selling Units: | Bag/Bags |
Package Type: | Carton Wooden Box |
Picture Example: |

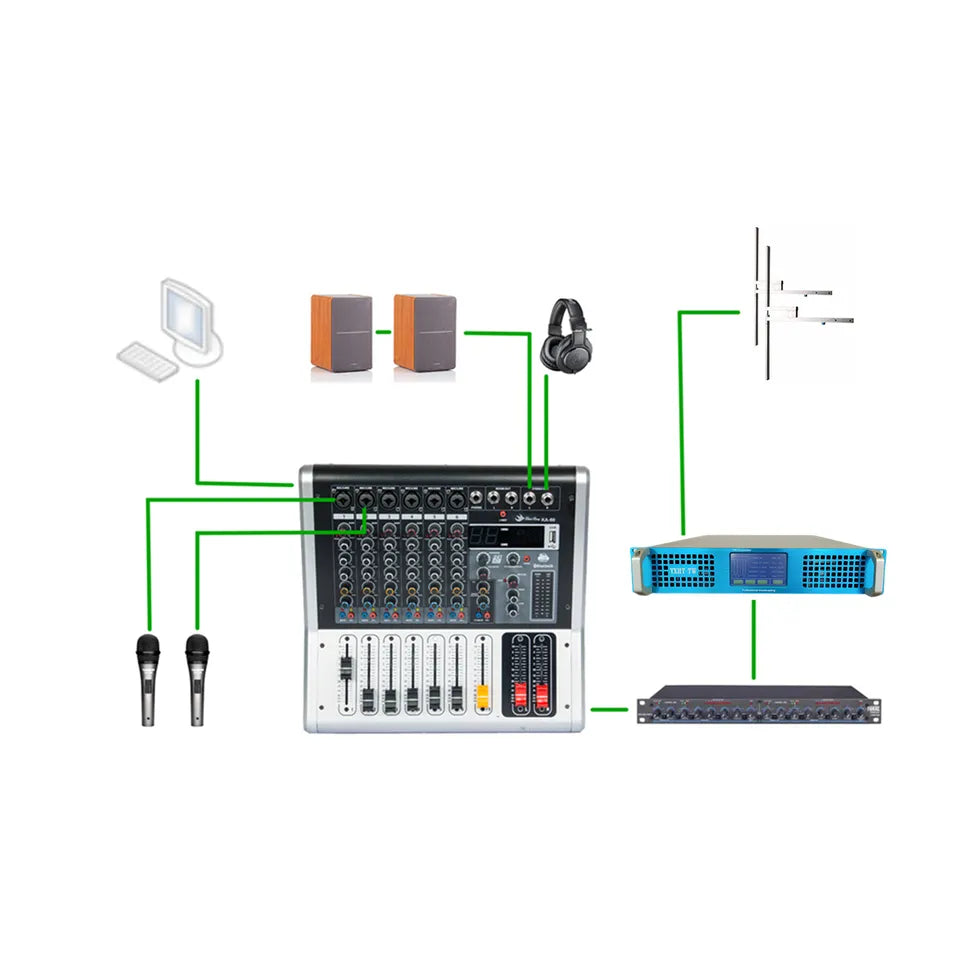

YXHT-TW 1KW FM Complete Package for Radio Station
![](http://sc04.alicdn.com/kf/H98c7d54b094645958c4c8996cc9f1254V/240044863/H98c7d54b094645958c4c8996cc9f1254V.jpg)
Package Includes:
![](http://sc04.alicdn.com/kf/Hacb665b2b97a47e5ab8154eb19d3f3eby/240044863/Hacb665b2b97a47e5ab8154eb19d3f3eby.jpg)

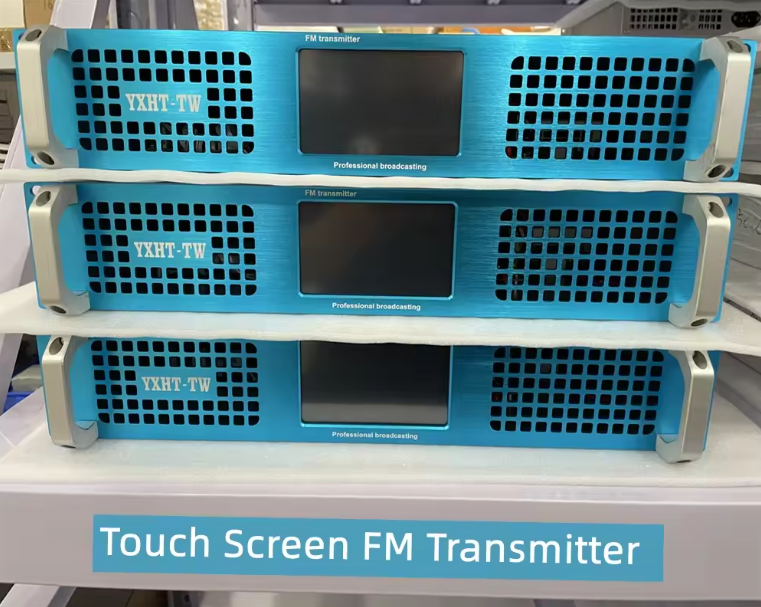

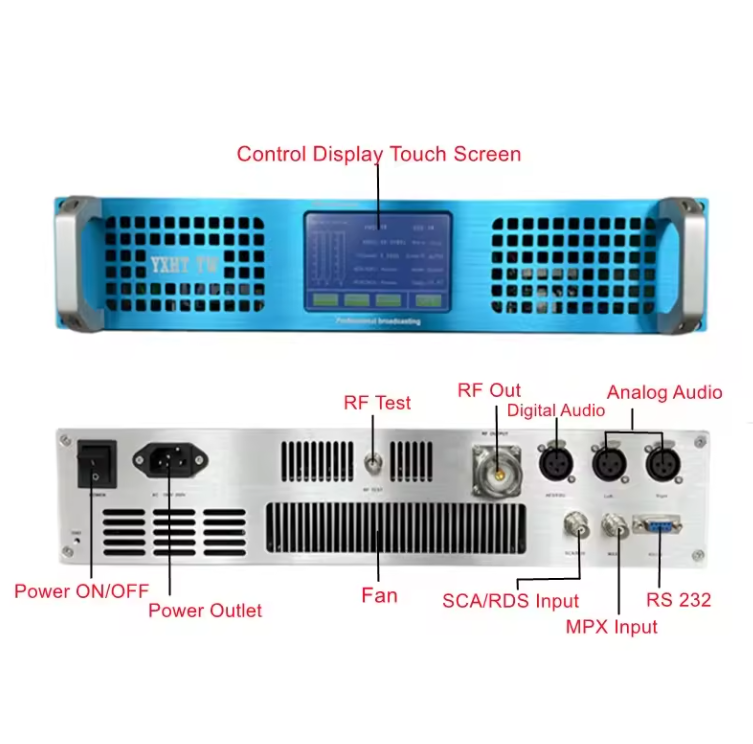

1000W YXHT-TW FM Transmitter
General features:
* Professional stereo sound with excellent separation
* Standard 19″ 2H rack, clean design and high quality
* Low distortion and good Signal/Noise ratio
* Built-in CPU system for controlling and monitoring
* Advanced TEMP and SWR protection
* Frequency range: 87.5-108 MHz, 10 KHz/Step
* RF output impedance: 50 Ω
* Professional stereo sound with excellent separation
* Standard 19″ 2H rack, clean design and high quality
* Low distortion and good Signal/Noise ratio
* Built-in CPU system for controlling and monitoring
* Advanced TEMP and SWR protection
* Frequency range: 87.5-108 MHz, 10 KHz/Step
* RF output impedance: 50 Ω
* RF output connector: L29 type -female
* Audio input connector: XLR-female
* MPX and AUX input connector: BNC-female
* Pre-emphasis: 0 / 50 / 75 us
* Mains power supply requirements: 90~264VAC;127~370VDC
* Operating temperature range: -10 to 45 ℃
* Weight: 13 Kg
* Size:460mm*480mm*88mm
* MPX and AUX input connector: BNC-female
* Pre-emphasis: 0 / 50 / 75 us
* Mains power supply requirements: 90~264VAC;127~370VDC
* Operating temperature range: -10 to 45 ℃
* Weight: 13 Kg
* Size:460mm*480mm*88mm
![](http://sc04.alicdn.com/kf/H3ca69273727441bbb54154fef2c30852M/240044863/H3ca69273727441bbb54154fef2c30852M.jpg)
1-Bay Dipole Antenna
Electrical specification:
* Frequency Range: 87.5Mhz-108Mhz
* Impedance:50ohm
* Connector:NK
* VSWR:<1.35:1 MAX
* Frequency Range: 87.5Mhz-108Mhz
* Impedance:50ohm
* Connector:NK
* VSWR:<1.35:1 MAX
* Polarization:Vertical
* Dimensions:1400*900*50mm
* Weight:4kg with hardware mounting
* Gain:2.0dB
* Max handle power:2KW
* Dimensions:1400*900*50mm
* Weight:4kg with hardware mounting
* Gain:2.0dB
* Max handle power:2KW
![](http://sc04.alicdn.com/kf/H3c11a52efc824591806d4f39b5279adfz/240044863/H3c11a52efc824591806d4f39b5279adfz.jpg)
* 1/2" 30meters feeder cable
![](http://sc04.alicdn.com/kf/Hd8cd249df7864bc58f4fb60d8c49c3d3E/240044863/Hd8cd249df7864bc58f4fb60d8c49c3d3E.jpg)

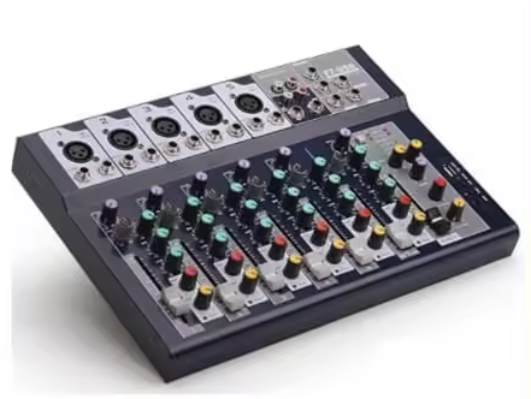

6-way Mixer
1.6/8/12/16channel mono MIC input
2.Provide high quality +48v phantom power
3.Each channel have high&low equalizer,optimized musical performance and adjusted indoor acoustic parameters
4.1 aux sending per channel for pre/post fader swithable for monitoring
5.Built in 10 effects which includes reverb,chorus,flanger,delay,pitch shifter,multieffects,tap function and storable parmeter settings
6.Built in high quality mp3(U-DISK MP3 INPUT)
7.All channel have peak signal indications and pre-fader monitor options
8.Idependent earphone monitor and level diaplay system.
2.Provide high quality +48v phantom power
3.Each channel have high&low equalizer,optimized musical performance and adjusted indoor acoustic parameters
4.1 aux sending per channel for pre/post fader swithable for monitoring
5.Built in 10 effects which includes reverb,chorus,flanger,delay,pitch shifter,multieffects,tap function and storable parmeter settings
6.Built in high quality mp3(U-DISK MP3 INPUT)
7.All channel have peak signal indications and pre-fader monitor options
8.Idependent earphone monitor and level diaplay system.
![](http://sc04.alicdn.com/kf/H64a2c93d65c245b6958a455a98f5c112T/240044863/H64a2c93d65c245b6958a455a98f5c112T.jpg)

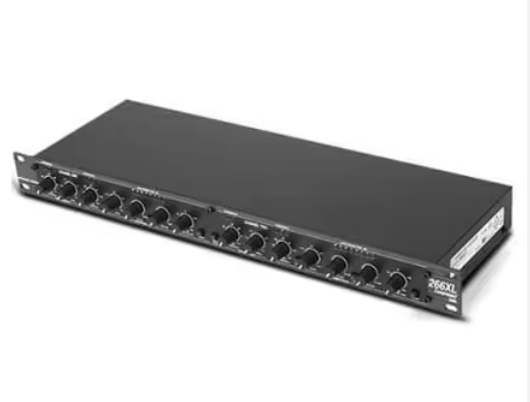

Audio Processor
* Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated Dynamic Enhancer, De-Esser and Low Contour Filter
* Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
* Adjustable dynamic Enhancer with level meter for brilliant, lively audio even with heavy compression
* IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
* Switchable De-esser removes excessive sibilance from your vocal tracks
* IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
* Automatically or manually adjustable attack and release times
* Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
* Adjustable dynamic Enhancer with level meter for brilliant, lively audio even with heavy compression
* IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
* Switchable De-esser removes excessive sibilance from your vocal tracks
* IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
* Automatically or manually adjustable attack and release times
![](http://sc04.alicdn.com/kf/Hc23b38f9b6cc4591b383131684323b52U/240044863/Hc23b38f9b6cc4591b383131684323b52U.jpg)

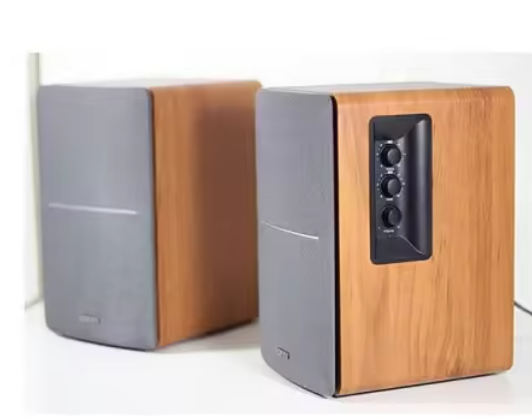

Monitor Speaker
* Bass is 5.25 inch magnetic steel tape
* 1-inch tweeter with magnetic
* Power 50w
* Peak power 70w
* 1-inch tweeter with magnetic
* Power 50w
* Peak power 70w
* Physical divider
* Treble independent regulation
* Bass independent regulation
* All wooden box 9mm thick planks
* Rated voltage 220v or 110V
* Treble independent regulation
* Bass independent regulation
* All wooden box 9mm thick planks
* Rated voltage 220v or 110V
![](http://sc04.alicdn.com/kf/Hd2b324d7726644a5b8e252daac2152f9I/240044863/Hd2b324d7726644a5b8e252daac2152f9I.jpg)

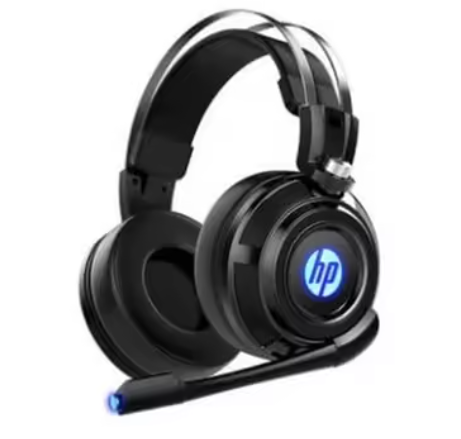

Headphone
* Wear mode: wearing ear
* Headphones Type: Wired
* Whether the microphone: No
* Headset service: Genius
* Frequency response 18-20000Hz
* impedance of 32 Ohms
* Headphones Type: Wired
* Whether the microphone: No
* Headset service: Genius
* Frequency response 18-20000Hz
* impedance of 32 Ohms
* SPL 115 dB SPL / V
* harmonic distortion: <1%, maximum
* input power of 200mW
* leather earmuffs, automatic adjustableand comfortable headset
* lightweight form factor
* Back retractable headphones
* excellent cost performance
* input power of 200mW
* leather earmuffs, automatic adjustableand comfortable headset
* lightweight form factor
* Back retractable headphones
* excellent cost performance
![](http://sc04.alicdn.com/kf/H9c35a847c05444c780bc4c4ffd703d1cf/240044863/H9c35a847c05444c780bc4c4ffd703d1cf.jpg)
Microphone
* Tuner Type: Dynamic
* Wireless: Wired
* Wireless: Wired
* Channel: 1
* Pointing characteristics: Cardioid
* Pointing characteristics: Cardioid
![](http://sc04.alicdn.com/kf/H932201d8b1fe4847aed211016a2d5db7G/240044863/H932201d8b1fe4847aed211016a2d5db7G.jpg)

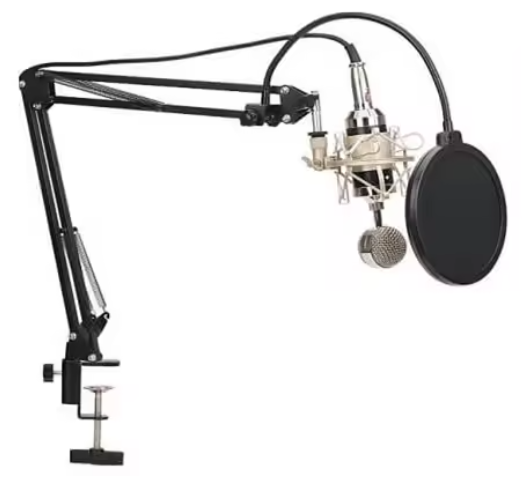

Microphone Stand
* Four external springs
* Cantilever fastening knob
* Upper two tubes, the lower three tubes, increase stability
* Cantilever fastening knob
* Upper two tubes, the lower three tubes, increase stability
* Can be used for horizontal and vertical installation
* Hollow stent may be passing through the cable from the boom
* Chassis Mount Standard accessories
* Chassis Mount Standard accessories
![](http://sc04.alicdn.com/kf/H3d41048f4f154c14aefd8c95cbec71a7W/240044863/H3d41048f4f154c14aefd8c95cbec71a7W.png)
Audio line
![](http://sc04.alicdn.com/kf/Hb85413ea16c548dcacb4ba7f2d23ec4c4/240044863/Hb85413ea16c548dcacb4ba7f2d23ec4c4.jpg)
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
