1. Overview
FM YXHT-2 3000W/LIGHT stereo FM radio transmitter is an integrated high-quality FM transmitter that stereo-encodes the input left and right channel audio signals and adjusts the FM modulation to the broadcast band, then RF amplify to the 3000W output power for wireless broadcasting. The transmitter adopts the most advanced software radio technology to achieve the international leading level of product performance indicators.
With a new large-scale field-programmable gate array (FPGA) and direct digital frequency synthesis (DDS) technology at up to 5G, the product achieves the highest technical specifications in the industry to date, providing listeners with a CD-like sound experience.
|
Technical specifications
|
| 1.Nominal emission frequency :87MHz~108MHz (other frequencies can be customized), stepping 10kHz |
| 2.Carrier frequency tolerance : ±200Hz |
| 3.Output power : 0~3000W continuously adjustable |
| 4.Output power tolerance:±1dB |
| 5.Output impedance :50Ω |
| 6.RF output connector :7/16”or7/8” |
| 7.Residual wave radiation :<-70dB |
| 8.Parasitic amplitude modulation noise:<-50dB |
| 9.Pilot frequency deviation: ±0.1Hz |
| 10.38KHz residual component in the S signal:< -50dB |
| 11.100% modulation frequency offset:±75KHz (maximum modulation frequency offset 112.5KHz) |
| 12.Audio pre-emphasis :0μs/25μs/ 50μs/75μs optional |
| 13.Distortion :<0.05% (30Hz ~ 15000Hz, 100% modulation) |
| 14.Frequency response :±0.1dB (no emphasis, no de-emphasis); ±0.2dB (emphasis, de-emphasis) |
| 15.Signal to noise ratio : ≥88dB (1kHz, 100% modulation) |
| 16.Stereo resolution :≥70dB (L→R, R→L) |
| 17.Left and right channel level difference: <0.05dB (100% modulation) |
| 18.Analog audio input:-12dBm ~ +8dBm |
| 19.Analog audio input impedance: 600Ω balance |
| 20.AES input impedance :110Ω balance |
| 21.AES input level:0.2~10Vpp |
| 22.AES sampling rate:30kHz ~ 96kHz |
| 23.Audio Level Gain : -15dB~+15dB Step 0.1dB |
| 24. Heat dissipation method: Forced convection |
| 25. Power supply voltage :100VAC~265VAC/ 47Hz~63Hz |
| 26.Chassis Standard :19" |
| 27.Operating environment temperature:-10 ° C ~ +45 ° C |
| 28.Relative humidity :<95% |
| 29.Altitude: <4500m |
2. Technical characteristics and principle block diagram
Product technology has the following technical features:
• Full process digital processing to achieve a perfect auditory effect of CD-like sound quality
• Full-scale digital processing with large-scale field-programmable gate array (FPGA) technology
• Direct digital frequency synthesis (DDS) technology at speeds up to 5G to peak transmitter specifications
• High reliability microprocessor (ARM) technology as the primary controller
• Support for multiple audio source inputs (transmitters can be automatically selected by priority):
AES/EBU digital audio signal input (highest priority)
Analog stereo analog audio signal input (2nd priority)
MPX stereo composite signal input (3rd priority)
• Supports one RDS or SCA subcarrier input
• Upgradeable to FM synchronous broadcast transmitter
• Electronically controlled AGC controls output power zero drift
• Perfect over-current, over-voltage, over-temperature, over-power, standing wave ratio alarm and protection
• One-touch shuttle quick keyboard input
• Real-time display of operating parameters using OLED
• With TCP/IP, RS232 communication interface
• 19-inch standard chassis, height 3U

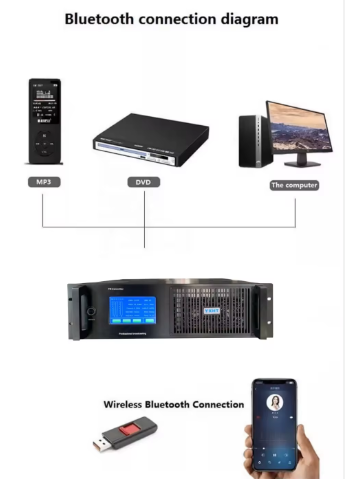

AI Smart 5.0 BT Audio Receiver / U Disk / FM playback / Computer Upgrade Wireless Module
5.0 BT + U disk TF card playback + FM + audio input + AI song + computer + MP3 player + mobile phone
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM
