150w FM Transmitter 150W FM Transmitter with Antenna and Cable
150w FM Transmitter 150W FM Transmitter with Antenna and Cable
Regular price
$899.00
Regular price
$929.00
Sale price
$899.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Attributes
Brand: YXHT
Packaging & Delivery
| Selling Units: | Bag/Bags |
| Package Type: | Carton Wooden Box |
| Certification: CE, FCC, ISO | Place Of Origin: China |

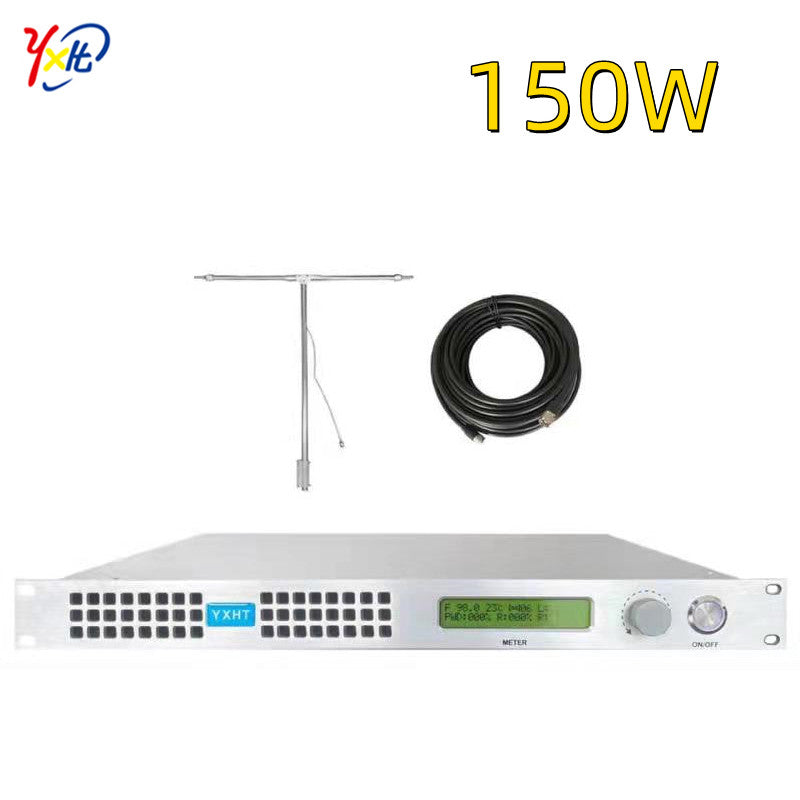

150W FM Broadcast Transmitter + Antenna + Cable+Audio line+Power line
Warranty：The warranty of all transmitters in our factory is 6 years.

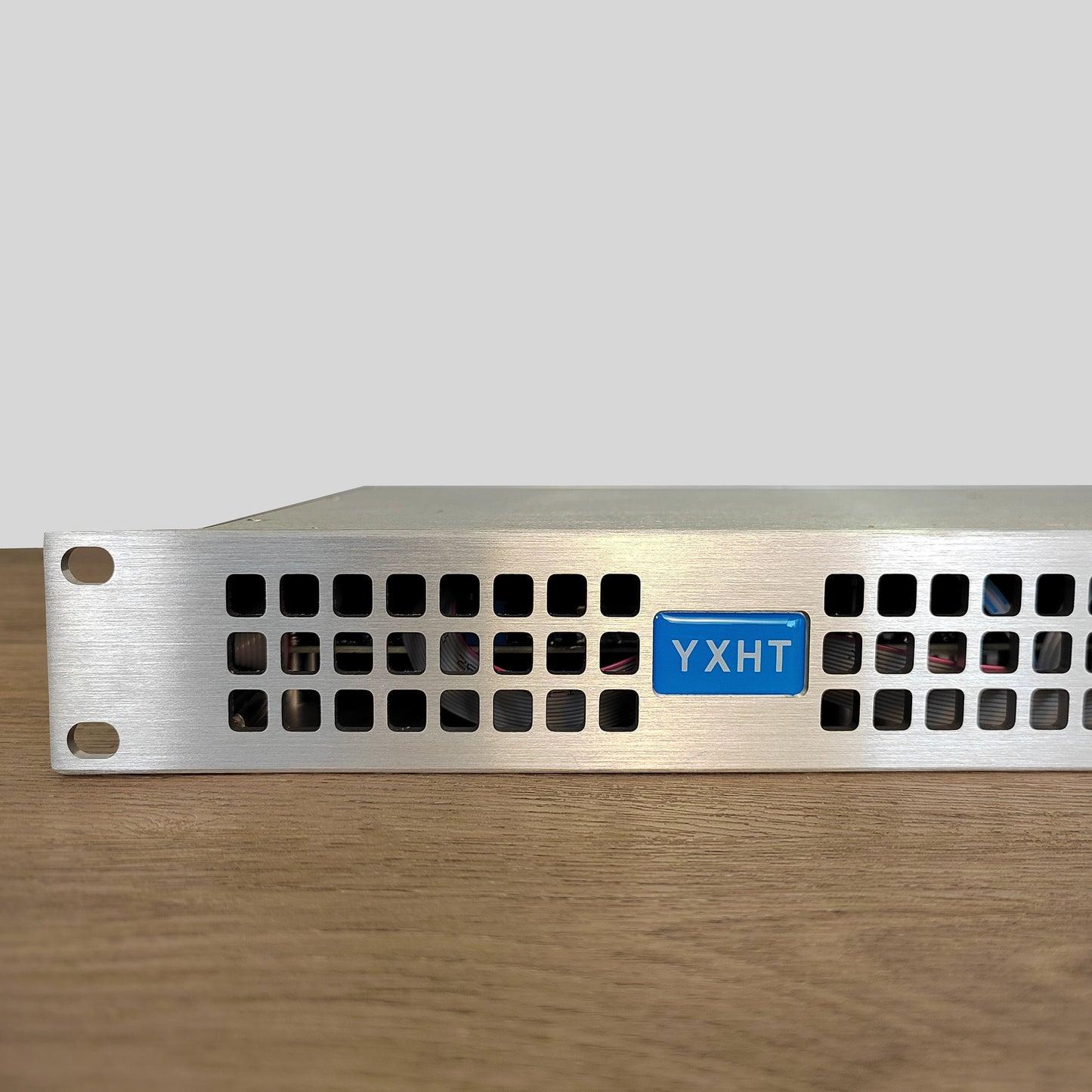

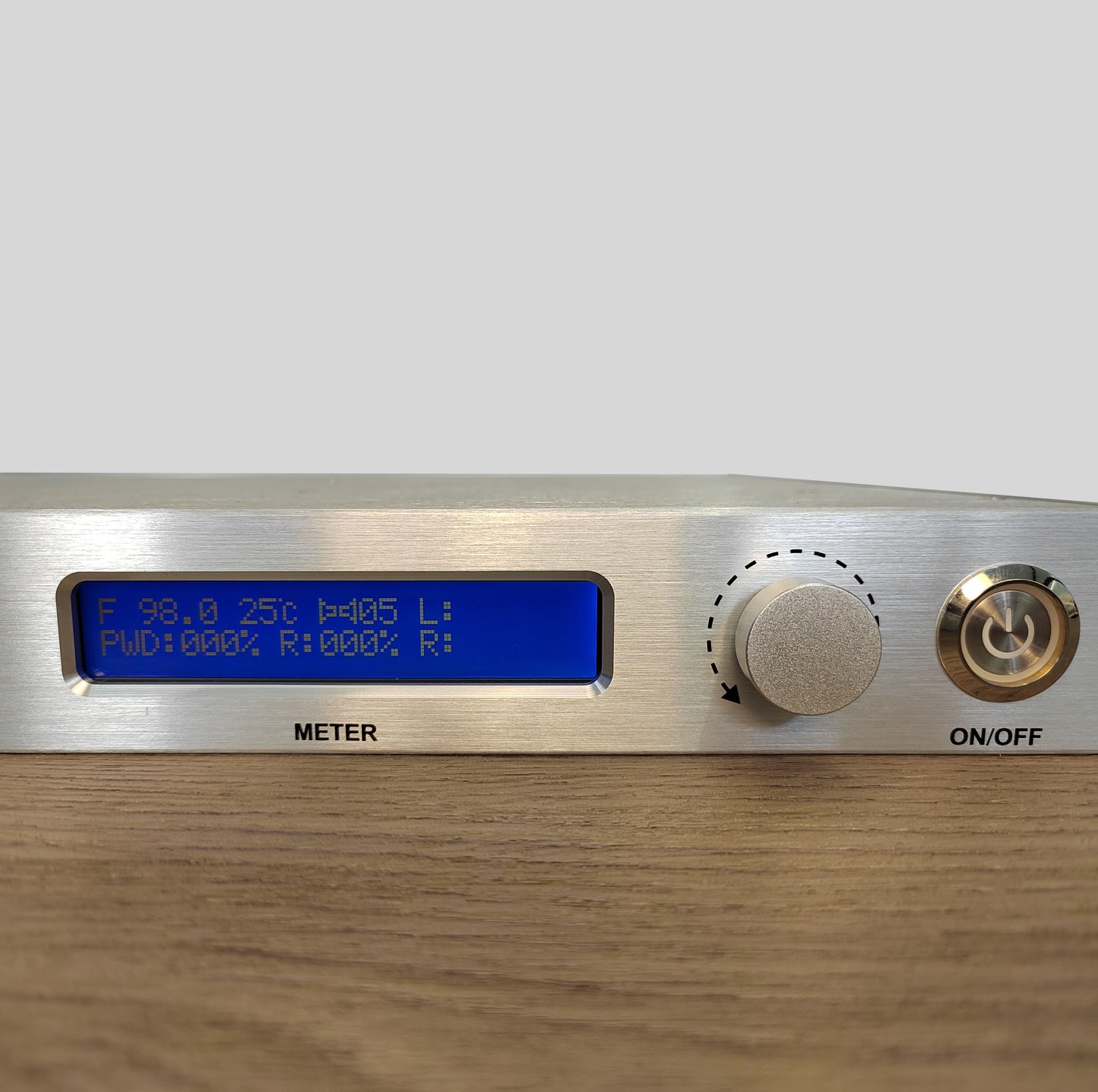

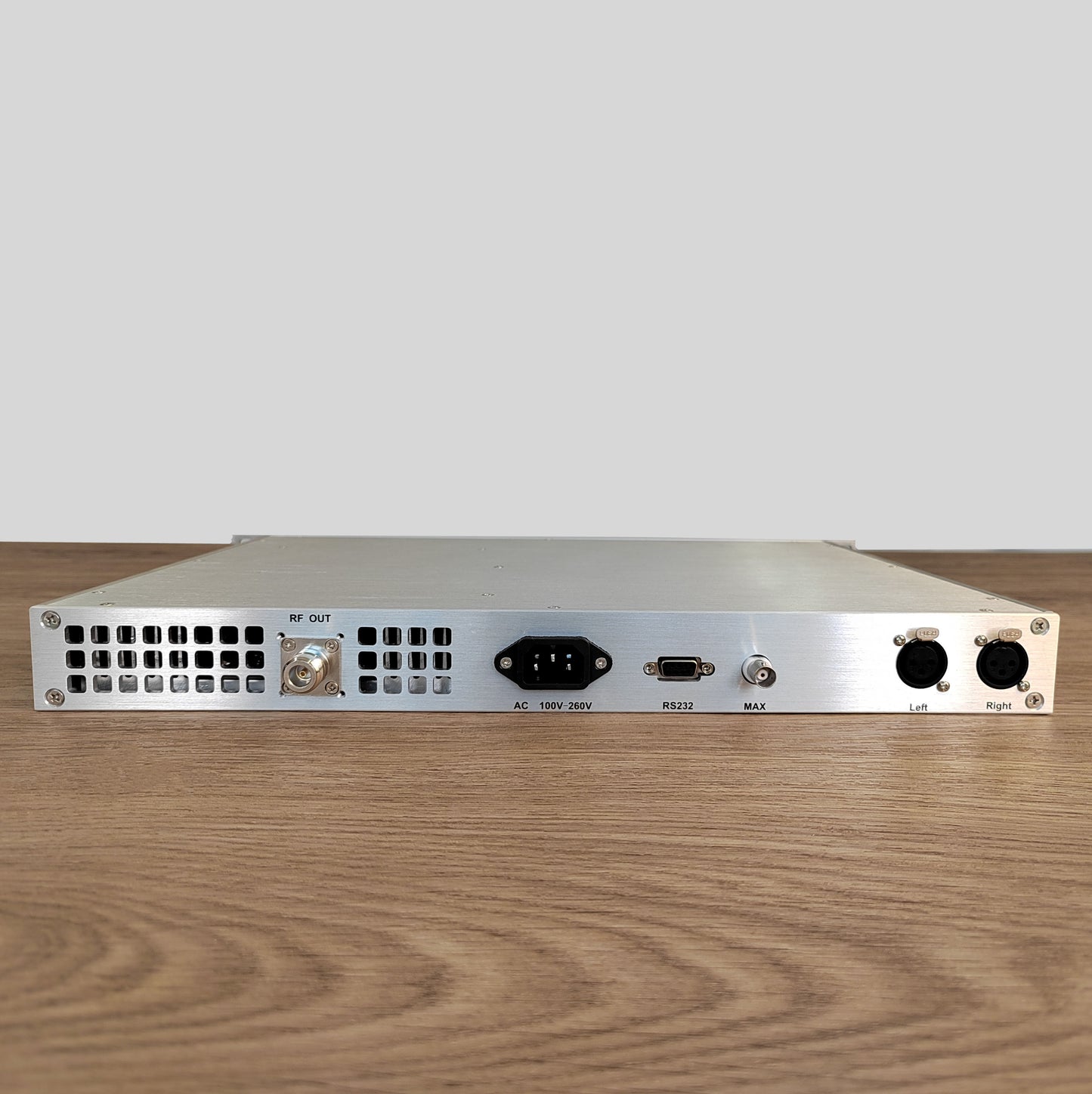

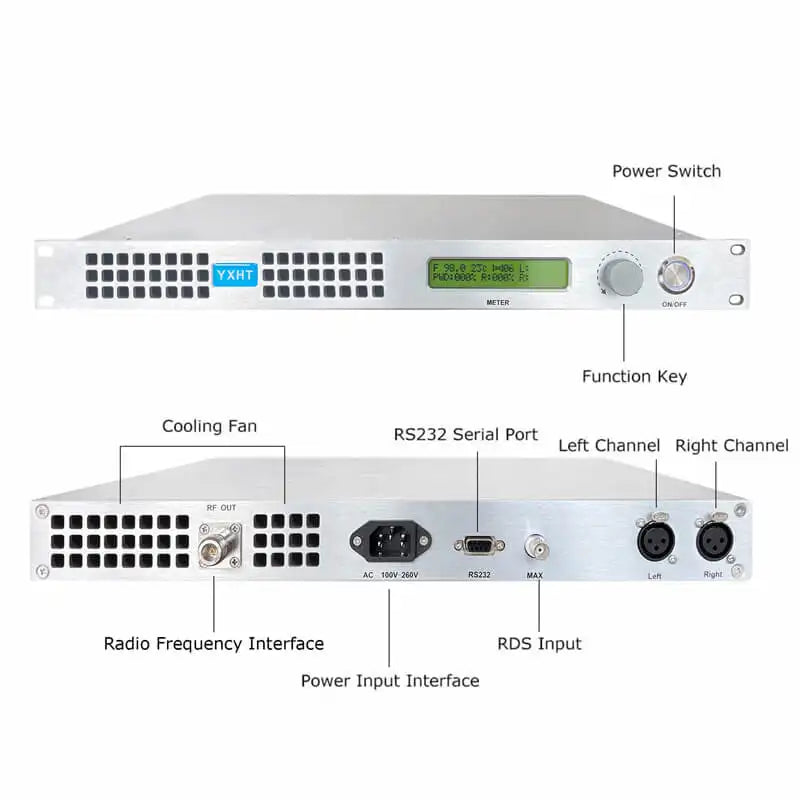

150W FM Broadcast Transmitter
|
1. Frequency Range:
|
87.5MHz~108 MHz
|
|
2. Frequency Setting step:
|
10KHz
|
|
3. Carrier Frequency precision:
|
±200Hz
|
|
4. Residual Wave Radiation:
|
≥65dBc
|
|
5. Audio Input Impedance:
|
600Ω,Balance
|
|
6. Separation:
|
60dB Pilot Signal Modulation:8%~10%
|
|
7. Audio Input Level:
|
±10dBm,step 0.01dB
|
|
8. S/N:
|
≥75dB(30H~15kHz,100%)
|
|
9. Audio Harmonic Distortion:
|
<0.05%
|
|
10. Audio response:
|
±0.05dB(30Hz~15KHz)
|
|
11. Output Load Impedance:
|
50Ω
|
|
12. Output Power:
|
150W
|
|
13. Pre-emphasis:
|
0μS,50μS,75μS
|
|
14. Deviation:
|
±75kHz
|
|
15. Pilot Frequency:
|
19 kHz±1Hz
|
|
16. Sub-carrier Suppression:
|
≥65dB
|
|
17.RF Output Connector:
|
7/16'(female)or7/8'Flange
|
|
18.Size:
|
460mm*480mm*88mm
|
|
19.Weight:
|
7KG
|
|
20.Pilot Signal Modulation:
|
8%~10%
|

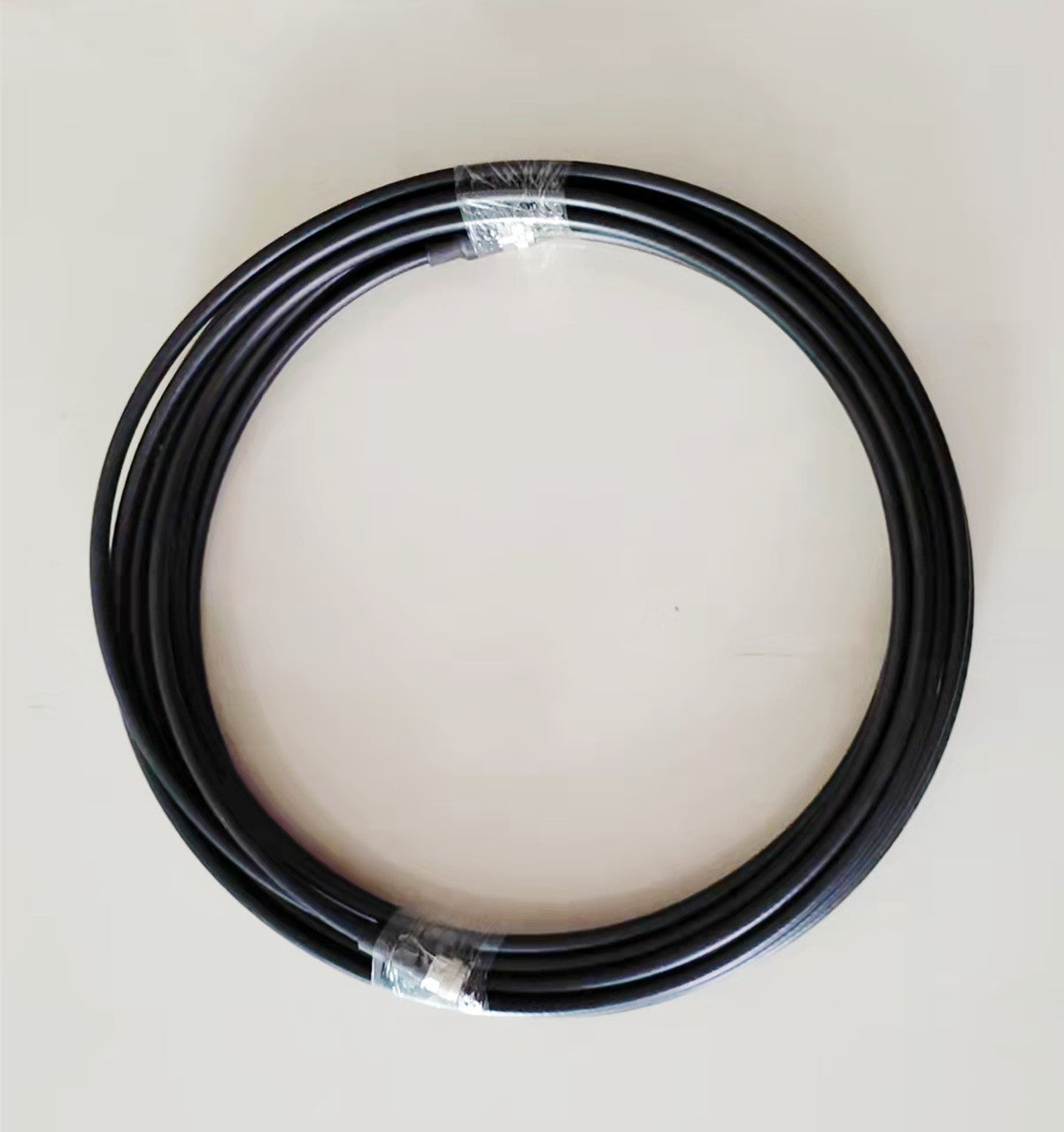

Feeder Cable with Connector
|
Name:
|
Feeder Cables with Connectors
|
|
Specification
|
1/2" Feeder Cables with connectors
|
|
Length:
|
15 meters or as required
|
1-Bay Dipole Antenna
- Model Number: 100-250W Antenna + Cable
- Frequency Range: 87.5MHz~108 MHz
- Frequency Setting step: 10KHz
- Carrier Frequency precision: ±200Hz
- Residual Wave Radiation: ≥65dBc
- Audio Input Impedance: 600Ω,Balance
- Separation: 60dB Pilot Signal Modulation:8%~10%
- Audio Input Level: ±10dBm,step 0.01dB
- S/N: 75dB(30H~15kHz,100%)
- Audio Harmonic Distortion:<0.05%
- Audio response: ±0.05dB(30Hz~15KHz)
- Gift : Radio
Certifications
