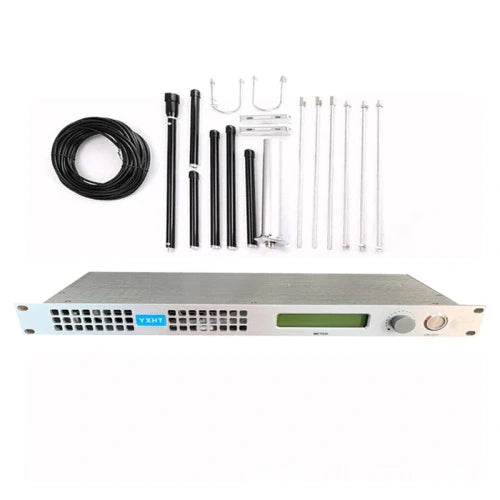

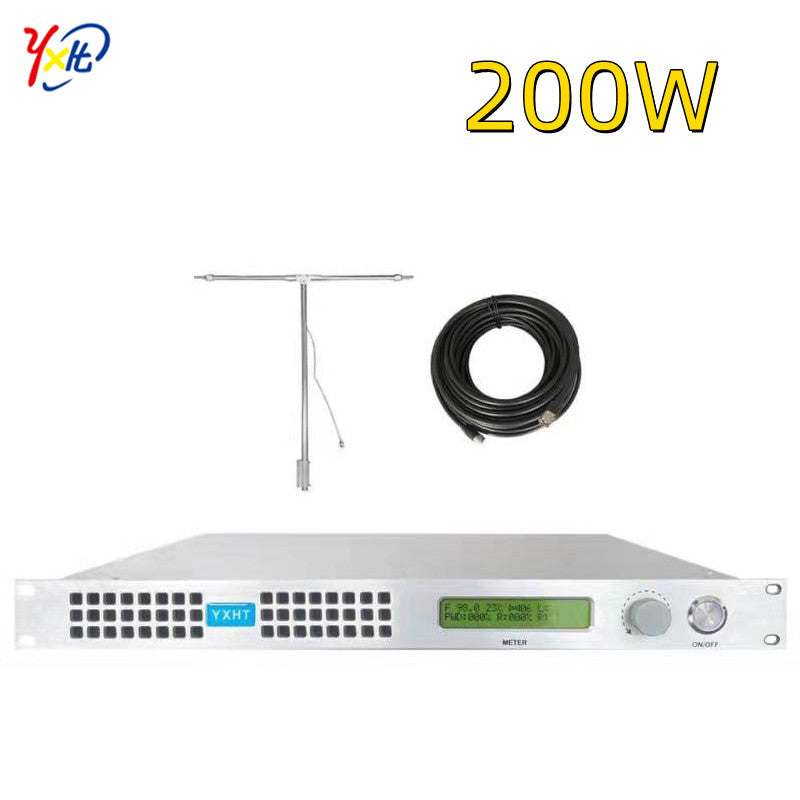

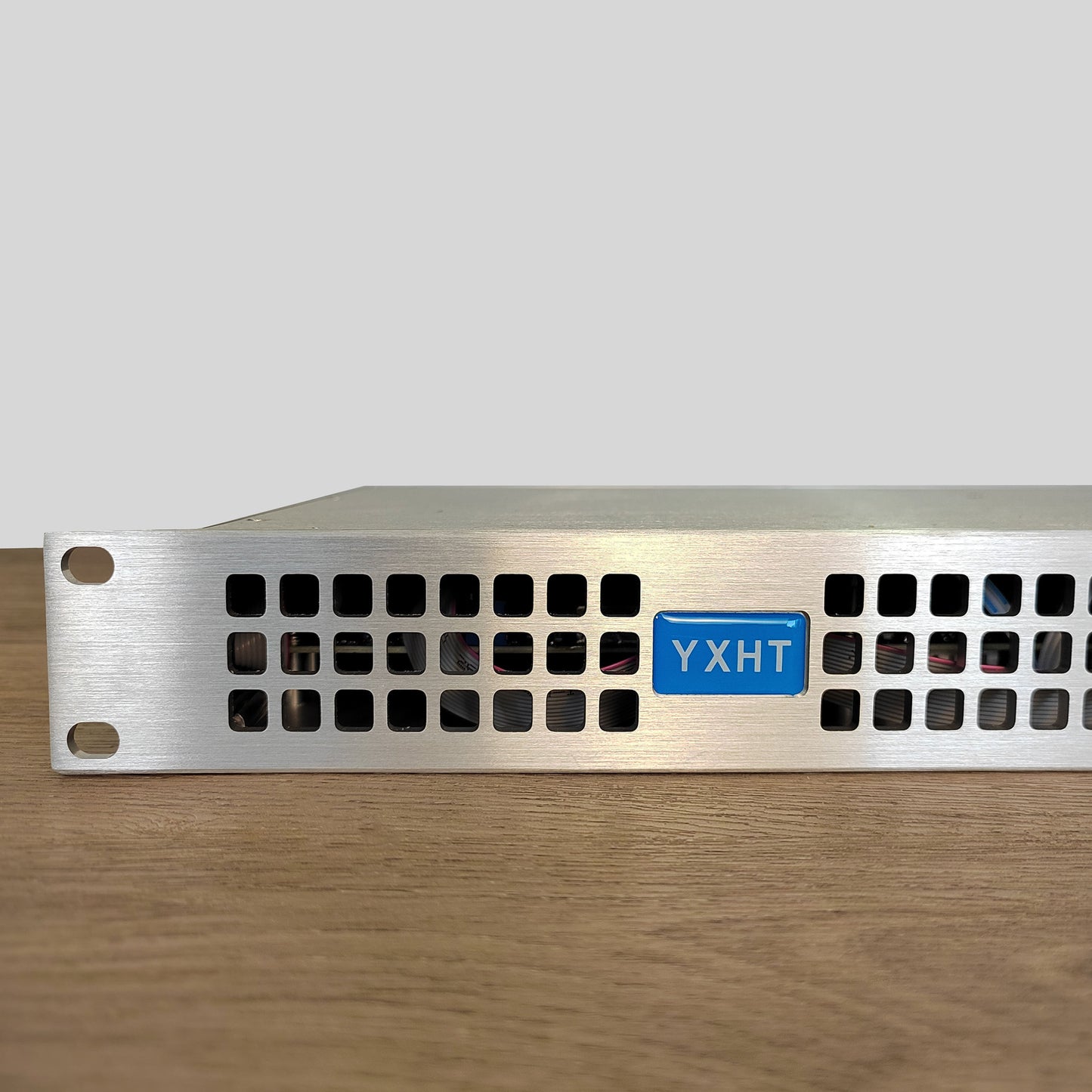

200W FM Broadcast Transmitter + Antenna + Cables Free shipping
200W FM Broadcast Transmitter + Antenna + Cables Free shipping
Regular price
$969.00
Regular price
Sale price
$969.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Attributes
Brand: yxht | Bag/Bags |
Place Of Origin: China | Carton Wooden Box |
Certification: CE, FCC, ISO |
200W FM Broadcast Transmitter
![](http://s.alicdn.com/@sc04/kf/H41ea27954429412e8448037e72e38192Q/240044863/H41ea27954429412e8448037e72e38192Q.jpg?quality=close)
Warranty:The warranty of all transmitters in our factory is 6 years.
1. Frequency Range:
|
87.5MHz~108 MHz
|
2. Frequency Setting step:
|
10KHz
|
3. Carrier Frequency precision:
|
±200Hz
|
4. Residual Wave Radiation:
|
≥65dBc
|
5. Audio Input Impedance:
|
600Ω,Balance
|
6. Separation:
|
60dB Pilot Signal Modulation:8%~10%
|
7. Audio Input Level:
|
±10dBm,step 0.01dB
|
8. S/N:
|
≥75dB(30H~15kHz,100%)
|
9. Audio Harmonic Distortion:
|
<0.05%
|
10. Audio response:
|
±0.05dB(30Hz~15KHz)
|
11. Output Load Impedance:
|
50Ω
|
12. Output Power:
|
200W
|
13. Pre-emphasis:
|
0μS,50μS,75μS
|
14. Deviation:
|
±75kHz
|
15. Pilot Frequency:
|
19 kHz±1Hz
|
16. Sub-carrier Suppression:
|
≥65dB
|

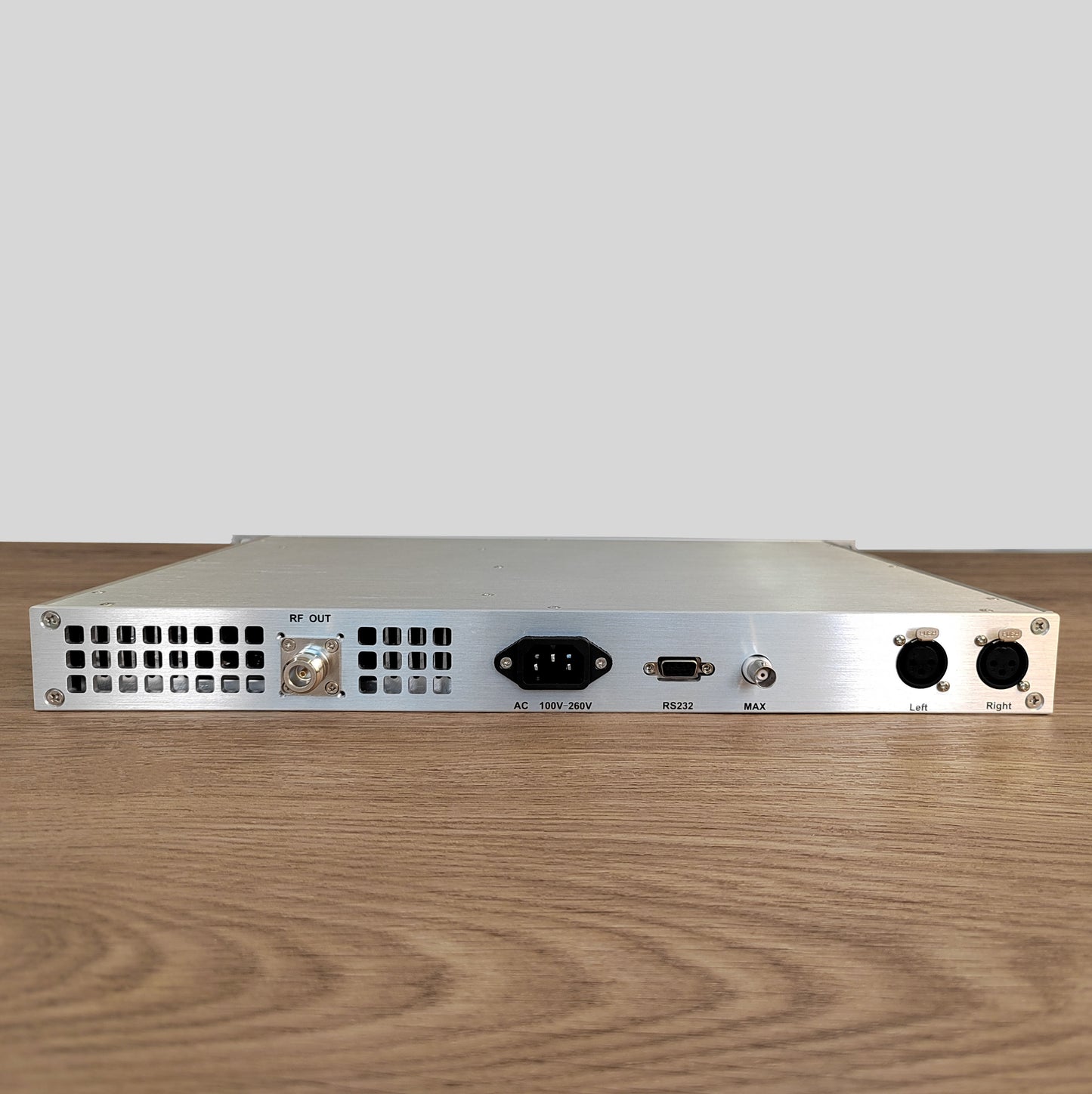

17.RF Output Connector:
|
7/16'(female)or7/8'Flange
|
18.Size:
|
460mm*480mm*88mm
|
19.Weight:
|
7KG
|
20.Pilot Signal Modulation:
|
8%~10%
|

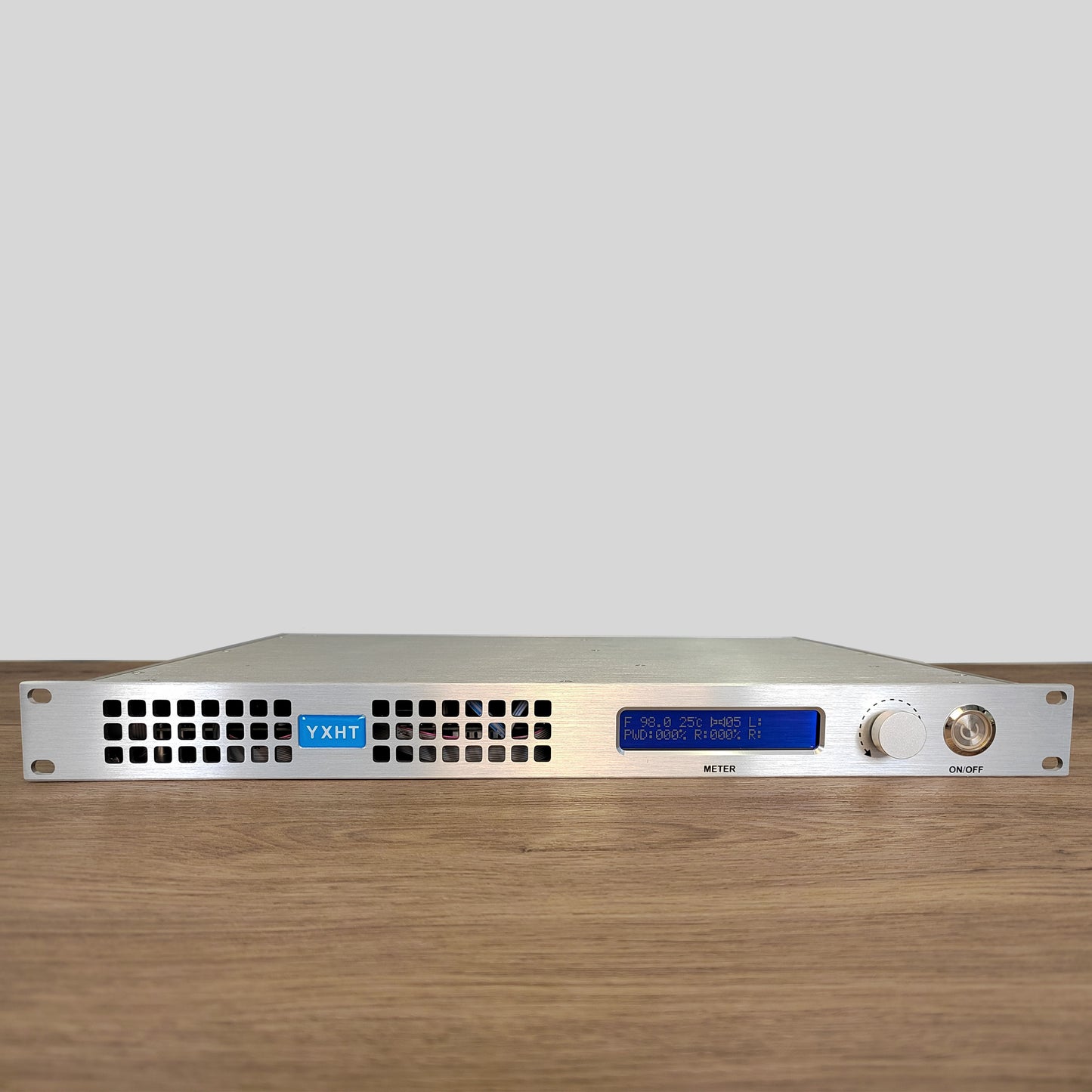

200W FM Broadcast Transmitter
· The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
· High performance and very good reliability has been proved by the large usage of YXHT-200C transmitters.Also it is low cost and small size.
· High performance and very good reliability has been proved by the large usage of YXHT-200C transmitters.Also it is low cost and small size.
![](http://s.alicdn.com/@sc04/kf/H060b39f3dc2c4d389a3b34bc3b62b3aca/240044863/H060b39f3dc2c4d389a3b34bc3b62b3aca.jpg?quality=close)

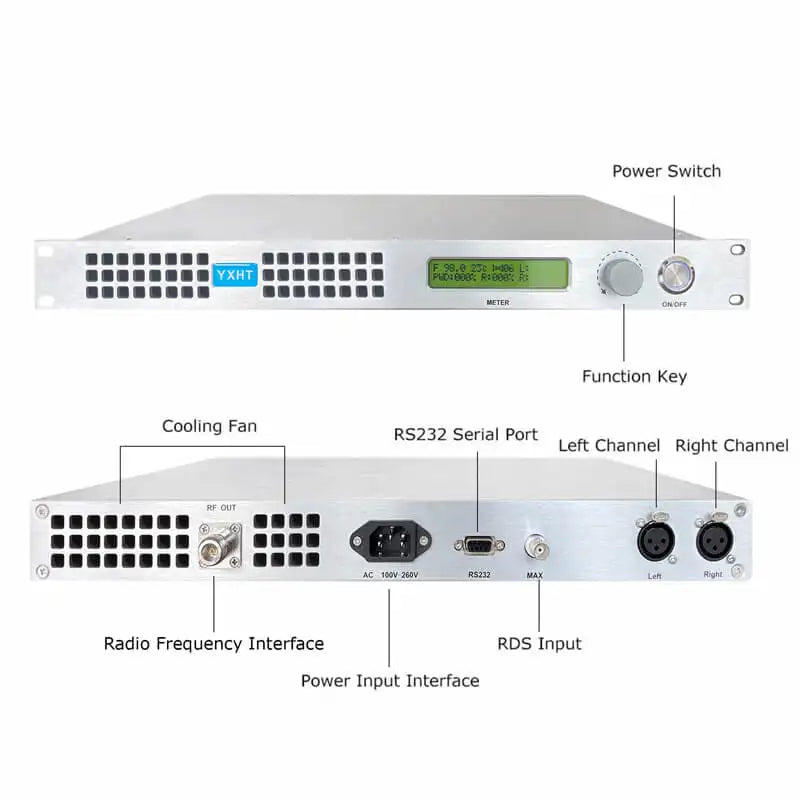

Features:
· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.

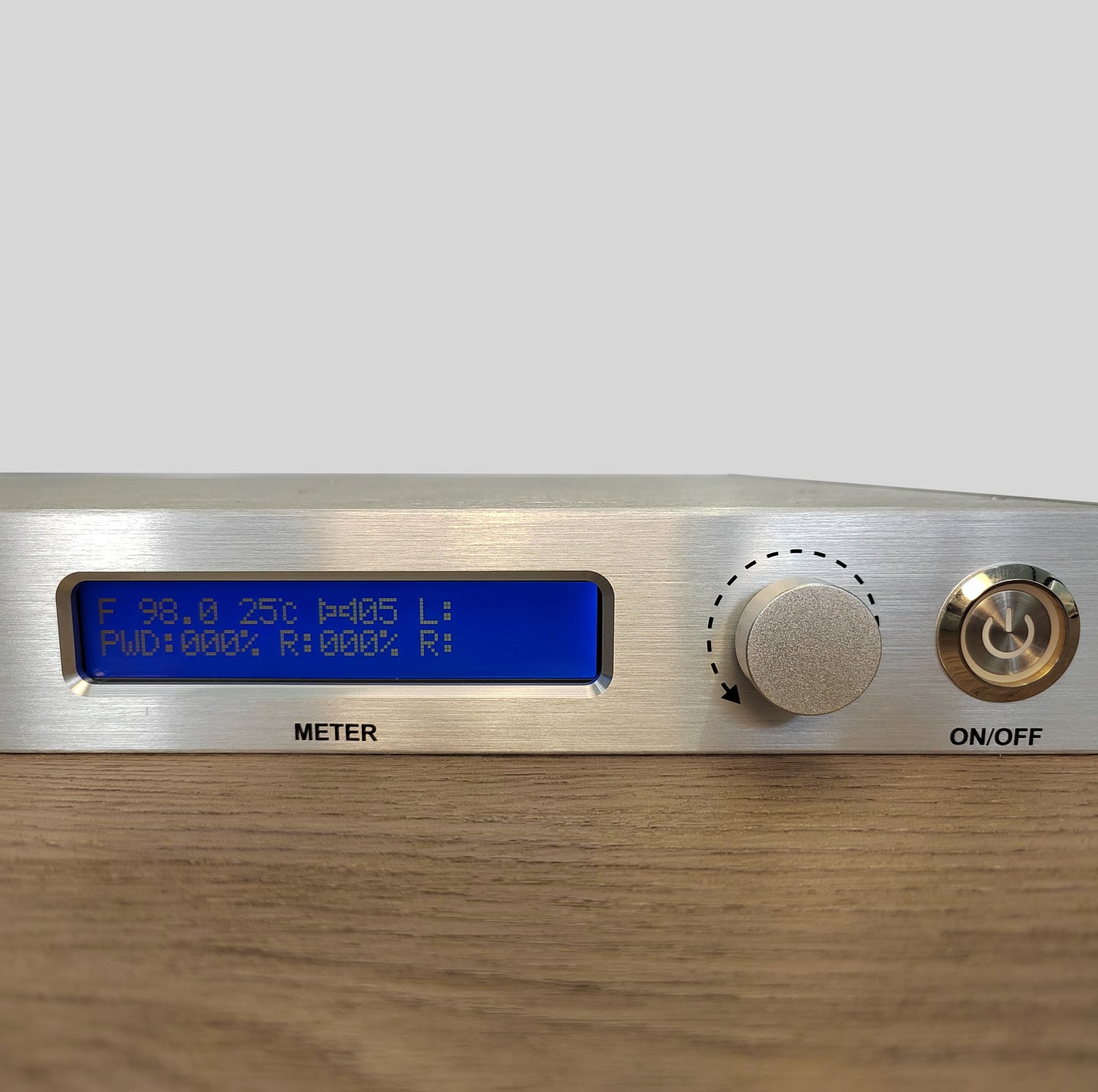

· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
Warranty: 6 years for all transmitters in our factory.
OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
