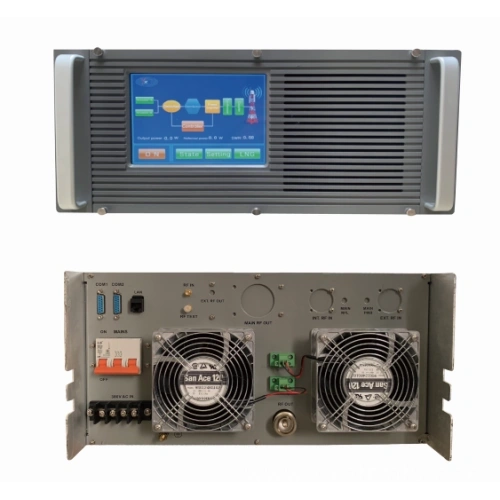

500W TV Transmitter for TV Station

500W TV Transmitter for TV Station

Regular price $5,000.00
Regular price Sale price $5,000.00
Sale Sold out
Shipping calculated at checkout.
Product Attributes



Place Of OriginChina

Packaging & Delivery
Selling Units: Bag/Bags
Package Type: Carton Wooden Box
Picture Example:

Product Description

500W Digital Tv Transmitter

1. Working frequency: UHF 13-48 channel arbitrary choice
2. Channel bandwidth: 8MHz
3. Output power: 500W
4. Output impedance: 50Ω
5. Output interface: Φ40
6. Output load return loss:Normal operation: -32dB, Allowed operation: -20dB
7. Power input level: 0dBm
8. Amplifier input impedance: 50Ω
9. Amplifier input interface: L16
10.Useless transmission: ≤-60dB

This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the
single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias
(with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
The power amplifier and power supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.
The 200W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.

500W Digital TV Transmitter

Supported Standards DVB-T,DVB-T2,DVB-H,DTMB,ATSC,ISDB-T
All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
Pre-distortion correction, dual-exciters switch automatically.
High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous

Quick Details

1. Working frequency: UHF 13-48 channel arbitrary choice
2. Output power: 500W
3. Output impedance: 50Ω
4. Channel bandwidth: 8MHz
5. Output interface: 40
6. Output load return loss: Normal
7. operation: -32dB
8. Allowed operation: -20dB
9. Power input level: 0dBm
10. Amplifier input impedance: 50Ω
11.Amplifier input interface: L16
12. Useless transmission: ≤-60dB
13. Band fluctuations: ±0.5dB
14. Band shoulder: better than 36dB
15. MER: better than 30dB
16. Size: 4U,19-inch standard
17. Weight: 45KG


1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
