3KW 5U FM Complete Package For Radio Station Free shipping

3KW 5U FM Complete Package For Radio Station Free shipping

Regular price $11,000.00
Regular price Sale price $11,000.00
Sale Sold out
Shipping calculated at checkout.

Product Attributes


CertificationCE, FCC, ISO

Place Of OriginChina

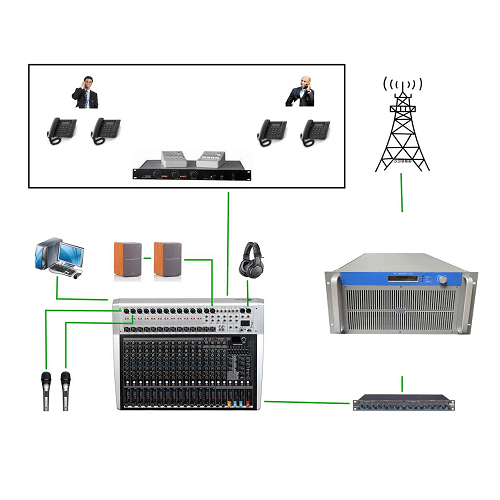

3KW 5U FM Complete Package For Radio Station
Products Description

3000W FM Transmitter

General features:
* Professional stereo sound with excellent separation
* Standard 19″ 5H rack, clean design and high quality
* Low distortion and good Signal/Noise ratio
* Built-in CPU system for controlling and monitoring
* Advanced TEMP and SWR protection
* Frequency range: 87.5-108 MHz, 10 KHz/Step
* RF output impedance: 50 Ω
* RF output connector: 7/8" or 1-5/8" flange -female
* Audio input connector: XLR-female
* MPX and AUX input connector: BNC-female
* Pre-emphasis: 0 / 50 / 75 us
* Mains power supply requirements: 90~264VAC;127~370VDC
* Operating temperature range: -10 to 45 ℃
* Weight: 63 Kg
* Size:840mm*470mm*380mm

4-Bay Dipole Antenna

Electrical specification:
* Frequency Range: 87.5Mhz-108Mhz
* Impedance:50ohm
* Connector:NK
* VSWR:<1.35:1 MAX
* Polarization:Vertical
* Dimensions:930*280*50mm
* Weight:40kg with hardware mounting
* Gain:9.8dB
* Max handle power:5KW

* 7/8" 50meters feeder cable

16-way Mixer

1.6/8/12/16channel mono MIC input
2.Provide high quality +48v phantom power
3.Each channel have high&low equalizer,optimized musical performance and adjusted indoor acoustic parameters
4.1 aux sending per channel for pre/post fader swithable for monitoring
5.Built in 10 effects which includes reverb,chorus,flanger,delay,pitch shifter,multieffects,tap function and storable parmeter
6.Built in high quality mp3(U-DISK MP3 INPUT)
7.All channel have peak signal indications and pre-fader monitor options
8.Idependent earphone monitor and level diaplay system.

Audio Processor

* Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated Dynamic Enhancer, De-Esser and Low Contour
* Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and
soft-knee characteristics
* Adjustable dynamic Enhancer with level meter for brilliant, lively audio even with heavy compression
* IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible
protection against signal peaks
* Switchable De-esser removes excessive sibilance from your vocal tracks
* IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
* Automatically or manually adjustable attack and release times

Monitor Speaker

* Bass is 5.25 inch magnetic steel tape
* 1-inch tweeter with magnetic
* Power 50w
* Peak power 70w
* Physical divider
* Treble independent regulation
* Bass independent regulation
* All wooden box 9mm thick planks
* Rated voltage 220v or 110V


* Wear mode: wearing ear
* Headphones Type: Wired
* Whether the microphone: No
* Headset service: Genius
* Frequency response 18-20000Hz
* impedance of 32 Ohms
* SPL 115 dB SPL / V
* harmonic distortion: <1%, maximum
* input power of 200mW
* leather earmuffs, automatic adjustableand comfortable headset
* lightweight form factor
* Back retractable headphones
* excellent cost performance


* Tuner Type: Dynamic
* Wireless: Wired
* Channel: 1
* Pointing characteristics: Cardioid

Microphone Stand

* Four external springs
* Cantilever fastening knob
* Upper two tubes, the lower three tubes, increase stability
* Can be used for horizontal and vertical installation
* Hollow stent may be passing through the cable from the boom
* Chassis Mount Standard accessories

Hot Line Telephone Coupler
DVD Player

ON AIR LED Warning


1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
