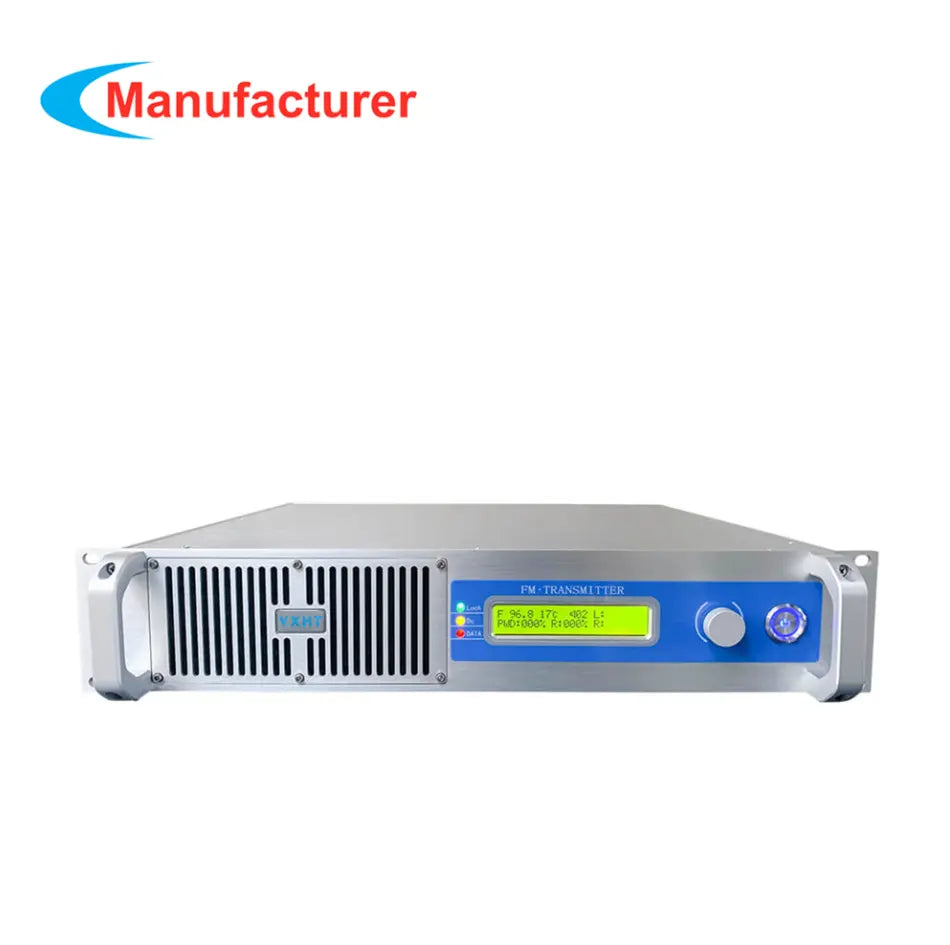

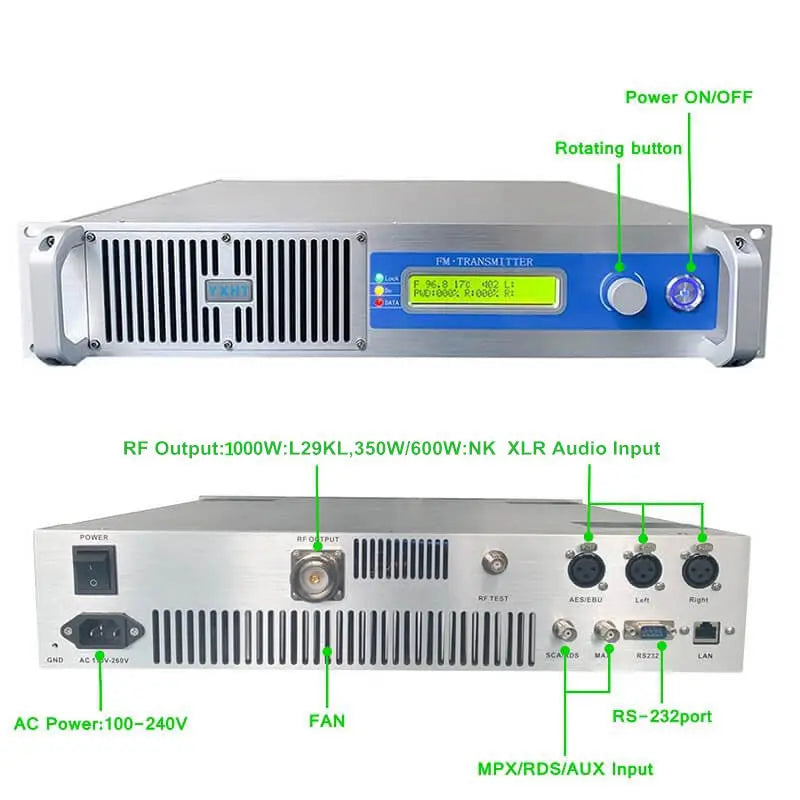

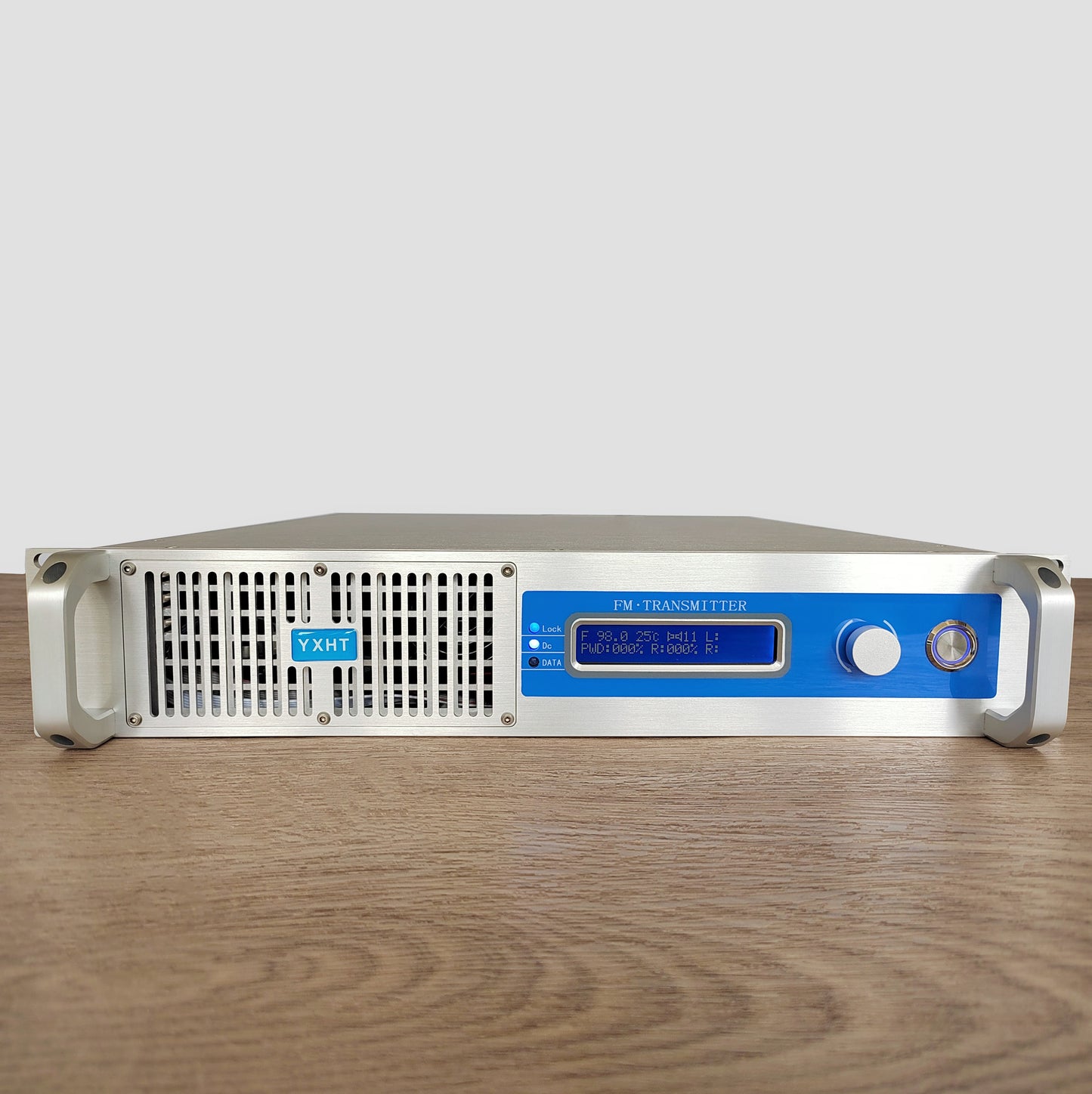

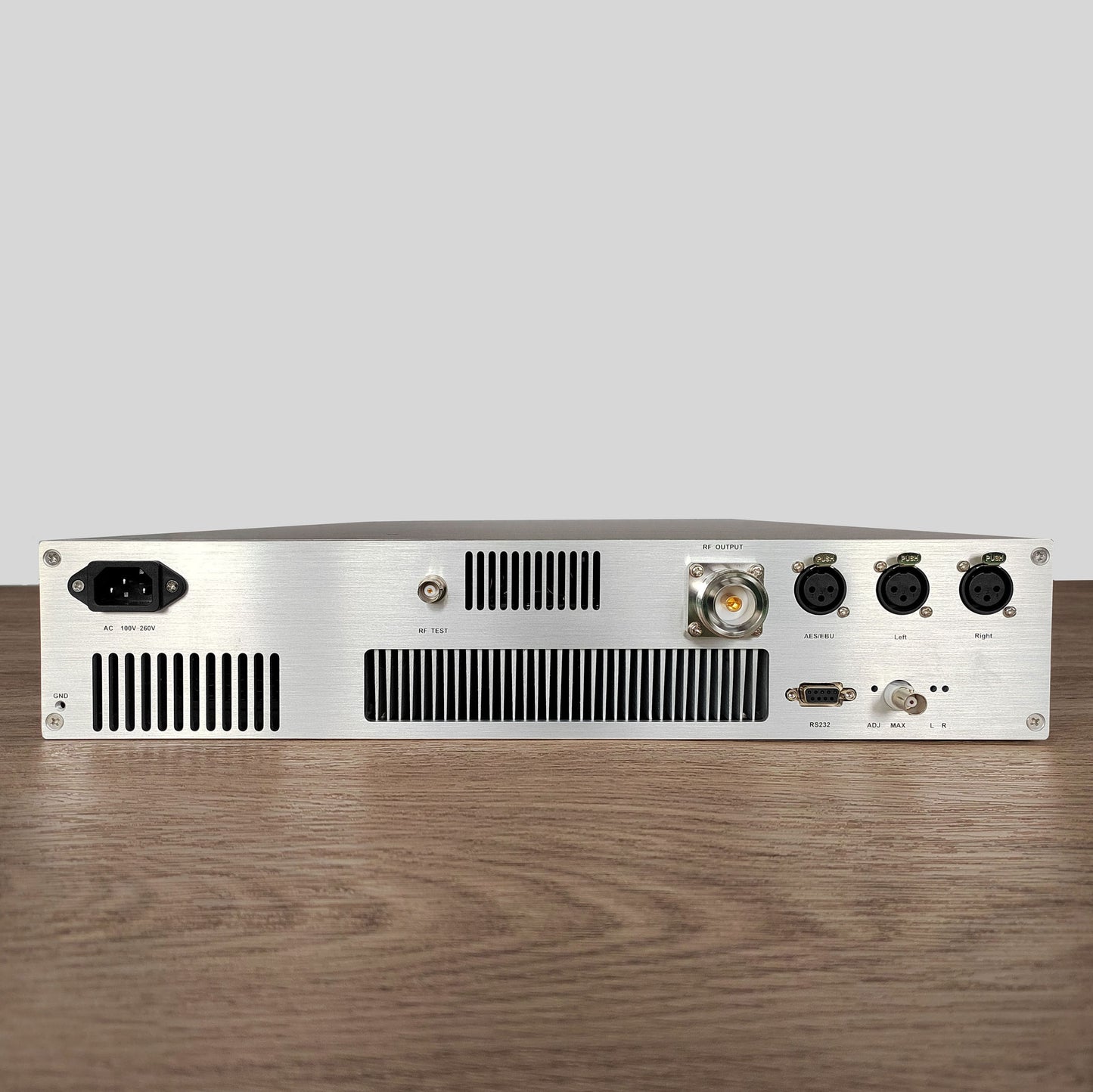

500W Broadcast Radio FM Transmitter

500W Broadcast Radio FM Transmitter

Regular price $1,500.00
Regular price $1,580.00 Sale price $1,500.00
Sale Sold out
Shipping calculated at checkout.
Product Attributes

Brandyxht

CertificationCe

Place Of OriginChina

Packaging & Delivery
Selling Units: Bag/Bags
Package Type: Carton Wooden Box
Picture Example:

Product Description


This 500W Fm Transmitter is designed in a compact 19 inch 2U chassis by integrating all modules inside, small in size and easy in operation and maintenance. It adopts the most advanced RF transistor of BL188 OR MRFE6VP61K25H, which ensures a high working efficiency of 72%, the power loss is reduced to the minimum value ever.

The DSP(Digital Sound Processing) technology makes FMUSER V3.0 600w FM Transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions.

As quality assurance, FMUSER Provides 5 YEAR warranty for this V5.0 professional broadcast transmitter, you’ll have no worries to use it for the radio station.

It can cover 20 to 25KM radius in ideal environment.

Quick Details

Frequency Range: 87.0MHz~108 MHz
Frequency Setting step: 10KHz
Carrier Frequency precision: ±200Hz
Residual Wave Radiation: ≥65dBc
Audio Input Impedance: 600Ω,Balance
Separation: 60dB Pilot Signal Modulation:8%~10%
Audio Input Level: ±10dBm,step 0.01dB
S/N: 75dB(30H~15kHz,100%).
Audio Harmonic Distortion: <0.05%
Audio response: ±0.05dB(30Hz~15KHz)
Certification: CNAS

Output Load Impedance: 50Ω
Output Power: 500W
Pre-emphasis: 0μS,50μS,75μS
Deviation: ±75kHz
Pilot Frequency: 19 kHz±1Hz
Sub-carrier Suppression: ≥65dB
RF Output Connector: 7/16'(female)or7/8'Flange
Size: 460mm*480mm*88mm
Weight: 15KG

Hf6327cf7875b4ada8489fd266017bcc7yFREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 500w Fm Transmitter is continuously adjustable from 0-500 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...500w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
