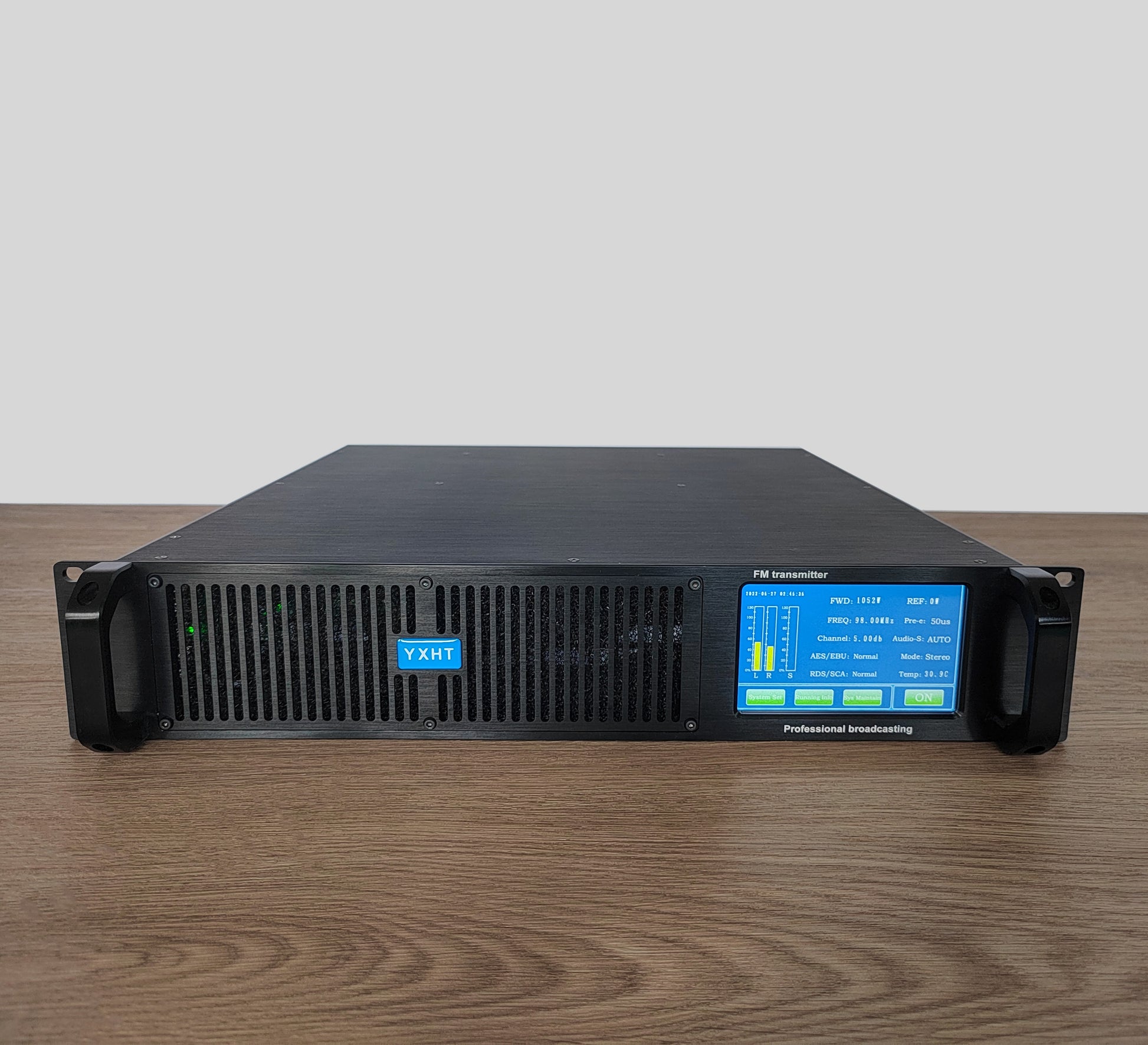

300W/350W FM Touch Screen Transmitter YXHY-2

300W/350W FM Touch Screen Transmitter YXHY-2

Regular price $1,480.00
Regular price $1,480.00 Sale price $1,480.00
Sale Sold out
Shipping calculated at checkout.
Product Attributes

Brandyxht

CertificationCe

Place Of OriginChina

Packaging & Delivery
Selling Units: Bag/Bags
Package Type: Carton Wooden Box
Picture Example:

Product Description

300W/350W FM Transmitter with U Disk TF Card

1. Overview

300W/350W LIGHT stereo FM radio transmitter is an integrated high-quality FM Transmitter that stereo-encodes the input left and right channel audio signals and adjusts the FM modulation to the broadcast band, then RF amplify to the 300W output power for wireless broadcasting. The transmitter adopts the most advanced software radio technology to achieve the international leading level of product performance indicators.

With a new large-scale field-programmable gate array (FPGA) and direct digital frequency synthesis (DDS) technology at up to 5G, the product achieves the highest technical specifications in the industry to date, providing listeners with a CD-like sound experience.

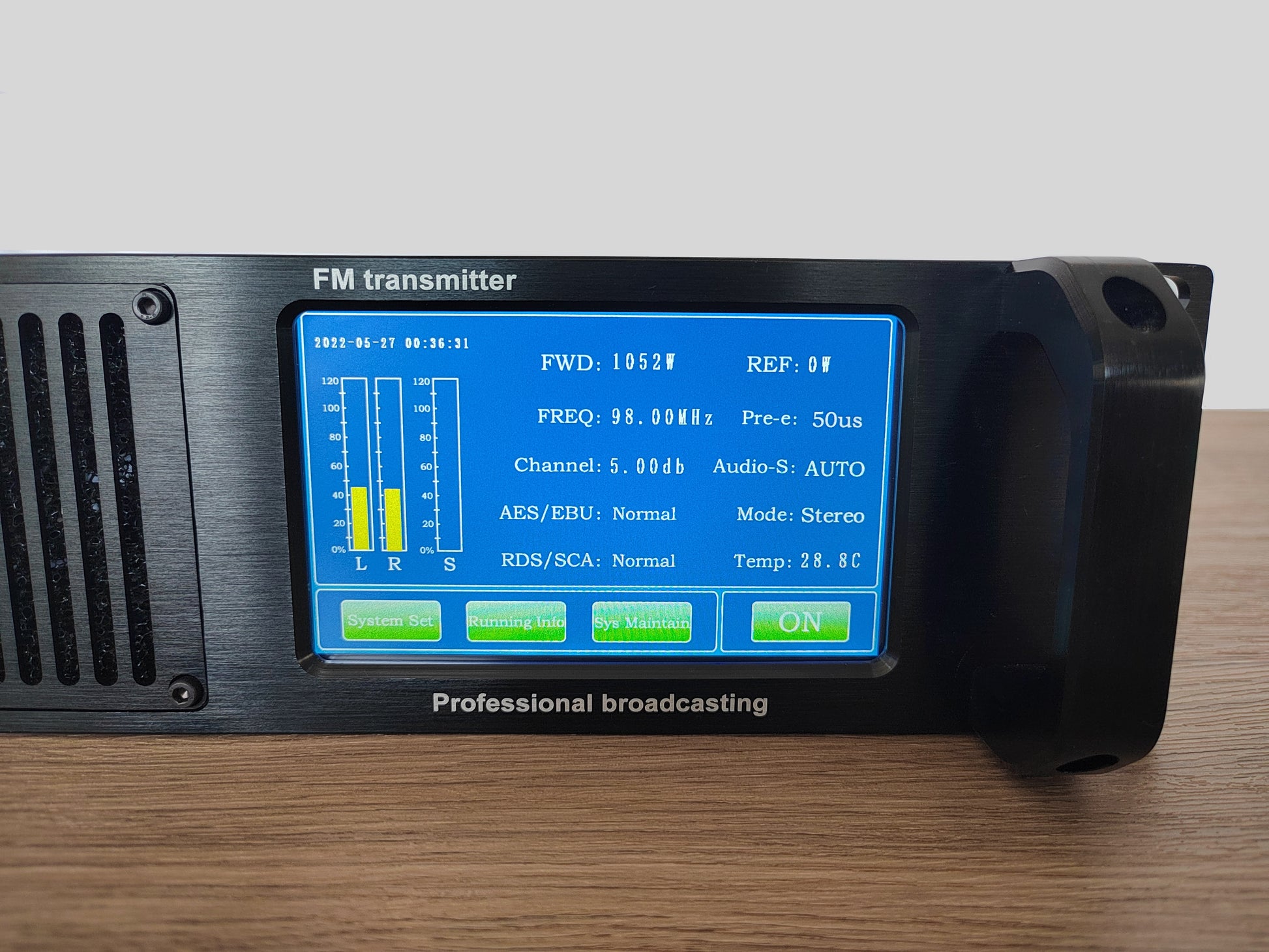

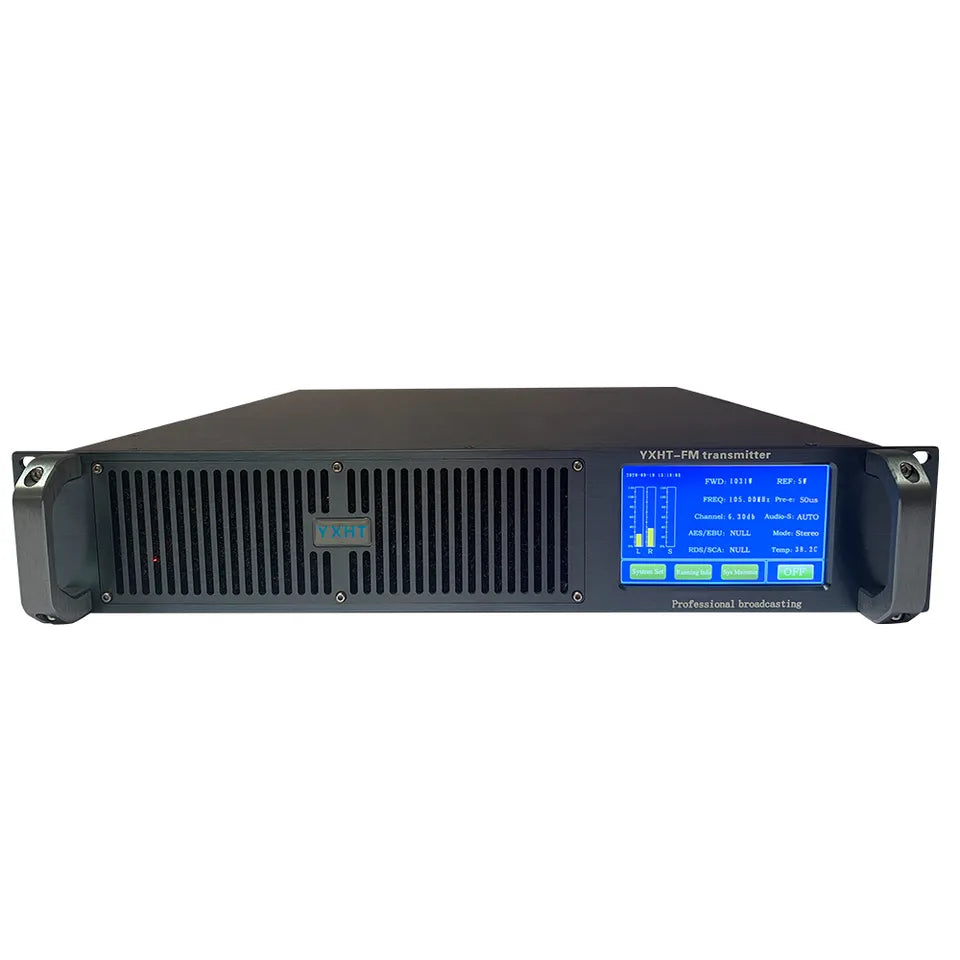

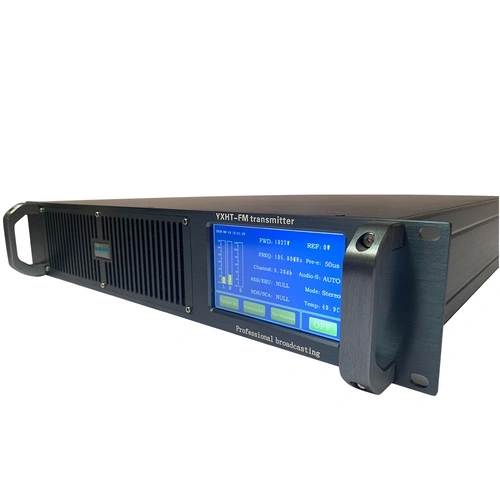

FM Transmitter Touch Screen

Technical specifications

1.Nominal emission frequency :87MHz~108MHz (other frequencies can be customized), stepping 10kHz
2.Carrier frequency tolerance : ±200Hz
3.Output power : 0~300W/350W continuously adjustable
4.Output power tolerance:±1dB
5.Output impedance :50Ω
6.RF output connector :7/16”or7/8”
7.Residual wave radiation :<-70dB
8.Parasitic amplitude modulation noise:<-50dB
9.Pilot frequency deviation: ±0.1Hz
10.38KHz residual component in the S signal:< -50dB
11.100% modulation frequency offset:±75KHz (maximum modulation frequency offset 112.5KHz)
12.Audio pre-emphasis :0μs/25μs/ 50μs/75μs optional
13.Distortion :<0.05% (30Hz ~ 15000Hz, 100% modulation)
14.Frequency response :±0.1dB (no emphasis, no de-emphasis); ±0.2dB (emphasis, de-emphasis)
15.Signal to noise ratio : ≥88dB (1kHz, 100% modulation)
16.Stereo resolution :≥70dB (L→R, R→L)
17.Left and right channel level difference: <0.05dB (100% modulation)
18.Analog audio input:-12dBm ~ +8dBm
19.Analog audio input impedance: 600Ω balance
20.AES input impedance :110Ω balance
21.AES input level:0.2~10Vpp
22.AES sampling rate:30kHz ~ 96kHz
23.Audio Level Gain : -15dB~+15dB Step 0.1dB
24. Heat dissipation method: Forced convection
25. Power supply voltage :100VAC~265VAC/ 47Hz~63Hz
26.Chassis Standard :19"
27.Operating environment temperature:-10 ° C ~ +45 ° C
28.Relative humidity :<95%
29.Altitude: <4500m

The product consists of audio interface unit, digital processing and frequency modulation unit, RF power amplifier unit, human-machine interface unit, communication interface unit, clock synchronization unit and power supply unit. The transmitter is installed in a 19-inch 2U standard chassis, intensive design, small size and light weight. The whole transmitter is designed with high reliability, which makes the product run continuously and stably for a long time.

2. Technical characteristics and principle block diagram

Product technology has the following technical features:
• Full process digital processing to achieve a perfect auditory effect of CD-like sound quality
• Full-scale digital processing with large-scale field-programmable gate array (FPGA) technology
• Direct digital frequency synthesis (DDS) technology at speeds up to 5G to peak transmitter specifications
• High reliability microprocessor (ARM) technology as the primary controller

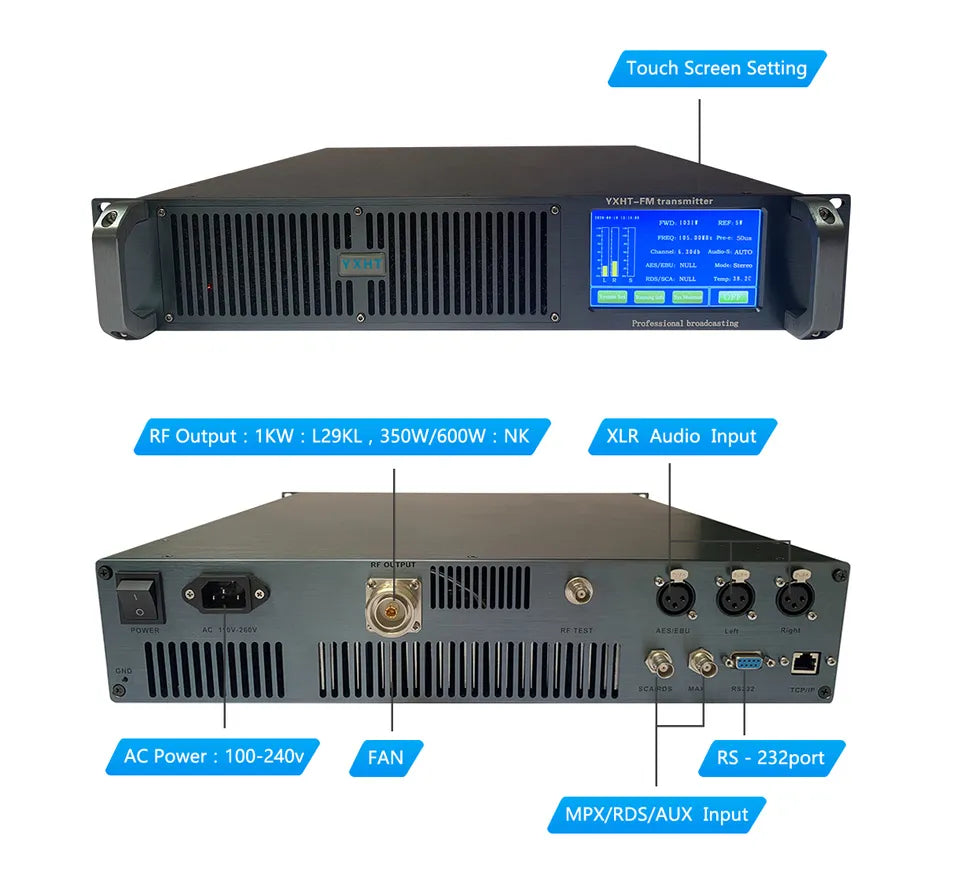

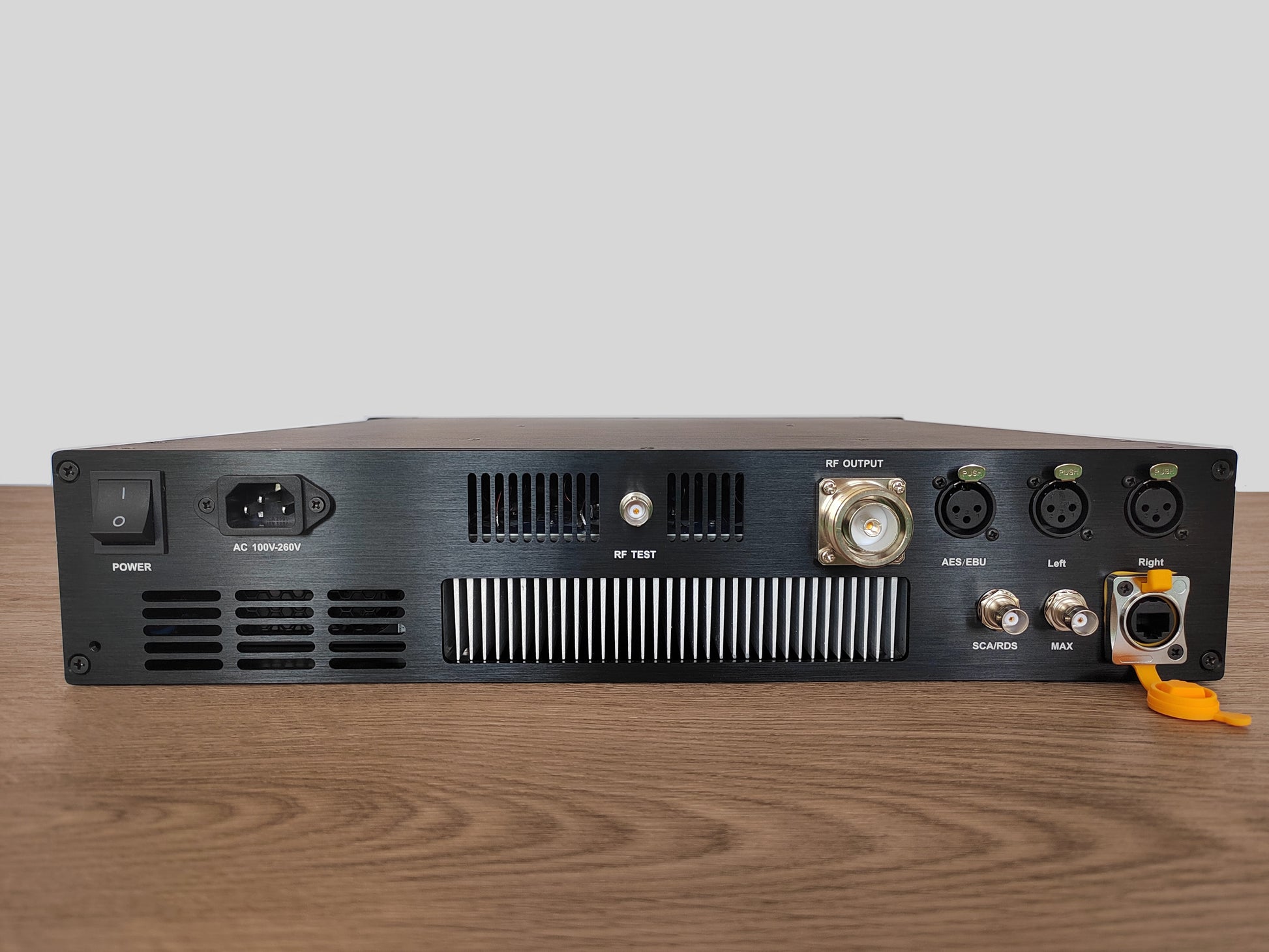

• Support for multiple audio source inputs (transmitters can be automatically selected by priority):
AES/EBU digital audio signal input (highest priority)
Analog stereo analog audio signal input (2nd priority)
MPX stereo composite signal input (3rd priority)
• Supports one RDS or SCA subcarrier input
• Upgradeable to FM synchronous broadcast transmitter
• Electronically controlled AGC controls output power zero drift
• Perfect over-current, over-voltage, over-temperature, over-power, standing wave ratio alarm and protection
• One-touch shuttle quick keyboard input
• Real-time display of operating parameters using OLED
• With TCP/IP, RS232 communication interface
• 19-inch standard chassis, height 2U

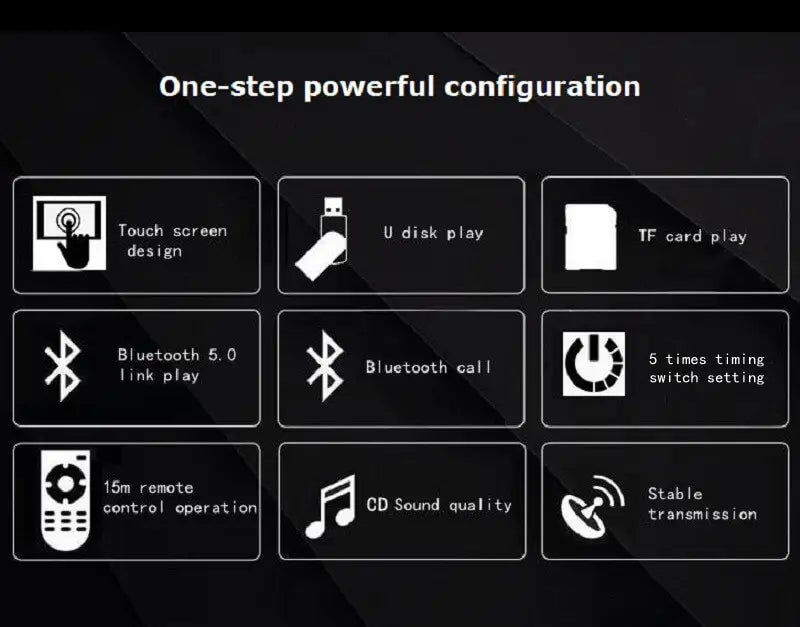

H83a66843aa154e6390e6cca47c143144L

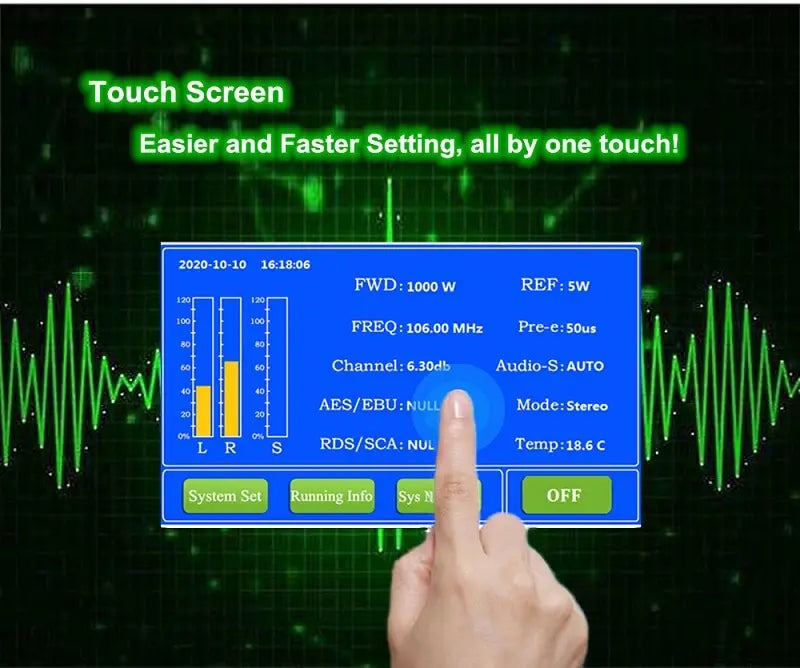

H226b7deebaa3499d8aeb7775a78f77d25

H6ddd2d14c2a94ed0b180bd6c7352935bN

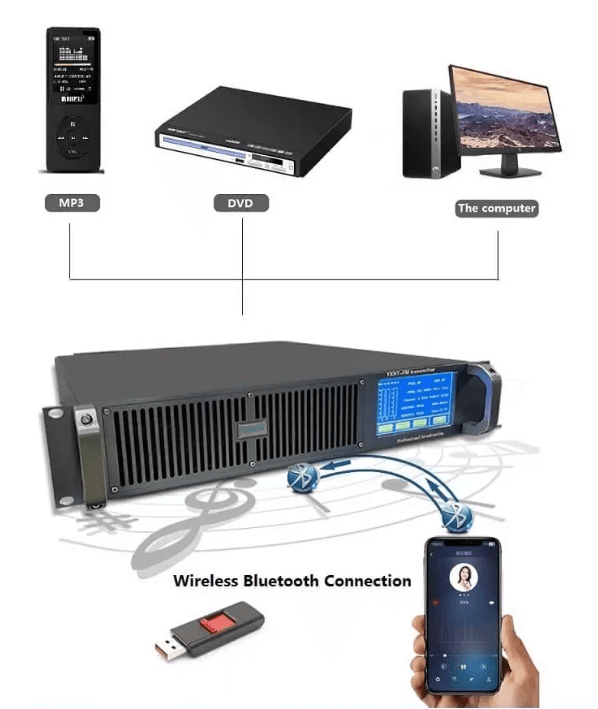

AI Smart 5.0 BT Audio Receiver / U Disk / FM playback / Computer Upgrade Wireless Module
5.0 BT + U disk TF card playback + FM + audio input + AI song + computer + MP3 player + mobile phone


H42feecb68f51465fabccb48d28b5923bo


How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W Fm Transmitter use in the city and hometown:
I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).
I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).
I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).
Below are the approximate range of different power FM Transmitters. ( The range is diameter )

80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM
