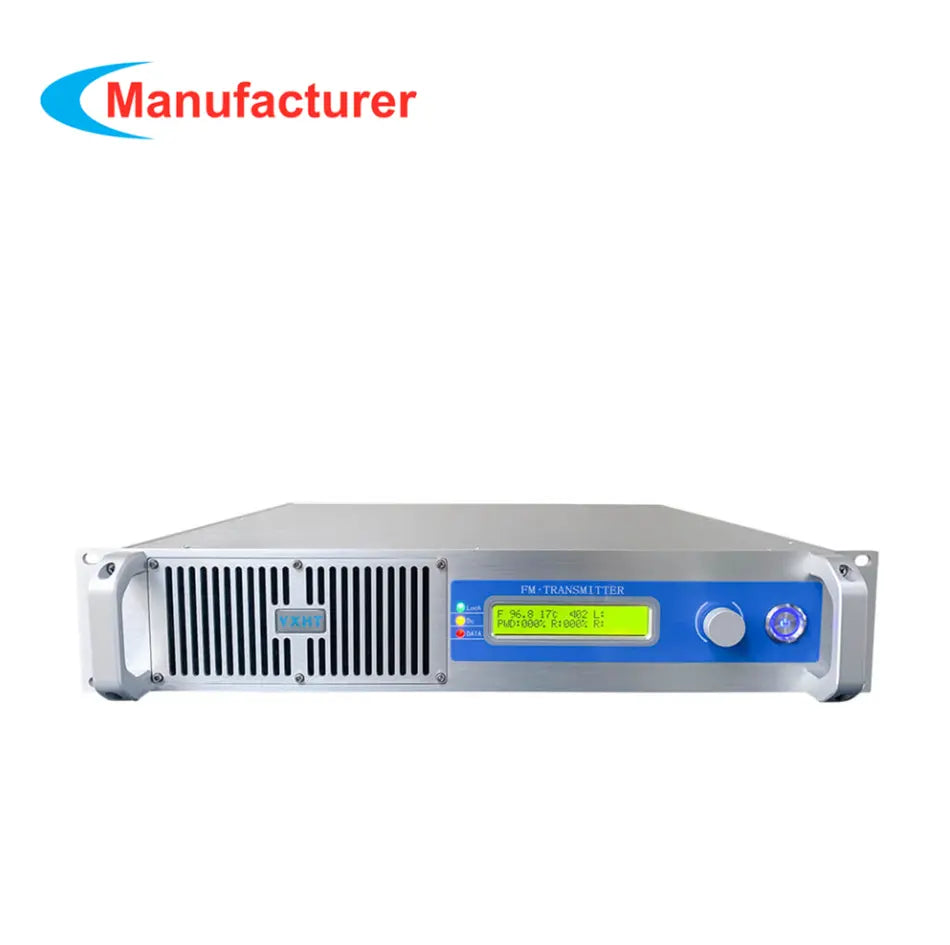

300W/350w Audio Broadcast Transmitter Station System

300W/350w Audio Broadcast Transmitter Station System

Regular price $1,300.00
Regular price $1,330.00 Sale price $1,300.00
Sale Sold out
Shipping calculated at checkout.
Product Attributes

Brandyxht

CertificationCe

Place Of OriginChina

Packaging & Delivery
Selling Units: Bag/Bags
Package Type: Carton Wooden Box

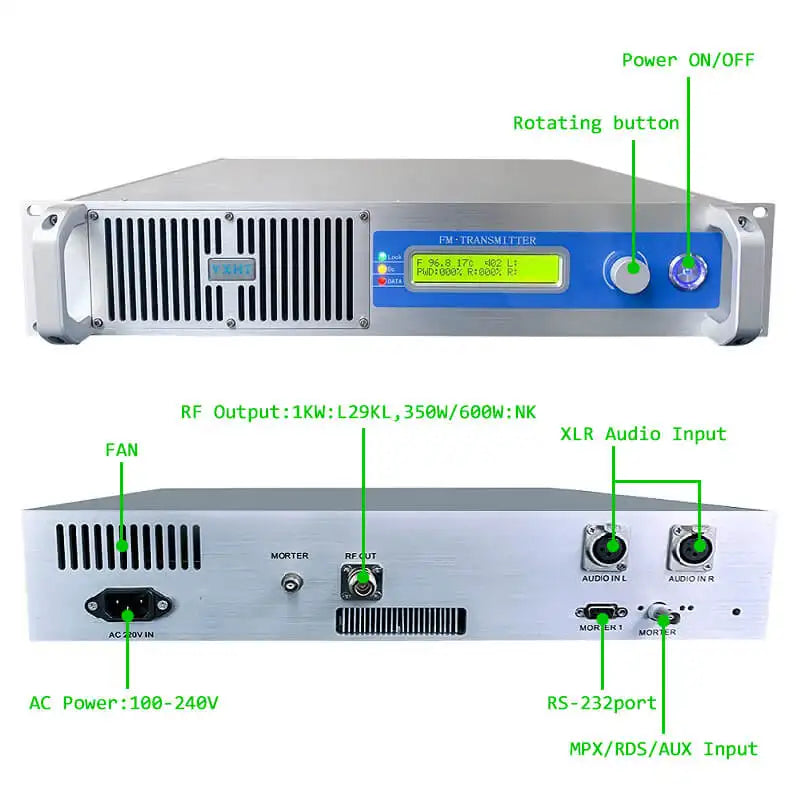

Picture Example:

Product details:
The DSP(Digital Sound Processing) technology makes the YXHT- 300W FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions. As quality assurance, YXHT Provides 6 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.
Warranty:The warranty of all transmitters in our factory is 6 years.

New Professional 300W/350W FM Broadcast Transmitter

The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
High performance and very good reliability has been proved by the large usage of YXHT-300/350 transmitters.Also it is low cost and small size.

FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

OUTSTANDING FEATURES:

1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range. 2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile. 3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen. 4) ADJUSTABLE POWER OUTPUT The RF out of this 300w FM transmitter is continuously adjustable from 0-300 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...300w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs

1. Frequency Range:
87.0MHz~108 MHz
2. Frequency Setting step:
10KHz
3. Carrier Frequency precision:
±200Hz
4. Residual Wave Radiation:
≥65dBc
5. Audio Input Impedance:
600Ω,Balance
6. Separation:
60dB Pilot Signal Modulation:8%~10%
7. Audio Input Level:
±10dBm,step 0.01dB
8. S/N:
≥75dB(30H~15kHz,100%)
9. Audio Harmonic Distortion:
<0.05%
10. Audio response:
±0.05dB(30Hz~15KHz)
11. Output Load Impedance:
50Ω
12. Output Power:
300W/350W
13. Pre-emphasis:
0μS,50μS,75μS
14. Deviation:
±75kHz
15. Pilot Frequency:
19 kHz±1Hz
16. Sub-carrier Suppression:
≥65dB
17.RF Output Connector:
7/16'(female)or7/8'Flange
18.Size:
460mm*480mm*88mm
19.Weight:
15KG
