5KW Fm Radio Broadcast Transmitter for Radio Station Free Shipping

Name: 5KW Fm Radio Broadcast Transmitter for Radio Station Free Shipping
Brand: yxhtfmtv
Price: 16990.0 USD
Availability: InStock

$16,990.00

~~$19,900.00~~ $16,990.00

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Product Attributes

Brand: yxht

Certification: CE, FCC, ISO

Place Of Origin: China

Packaging & Delivery

Selling Units:	Bag/Bags
Package Type:	Carton Wooden Box
Picture Example:

Products Description

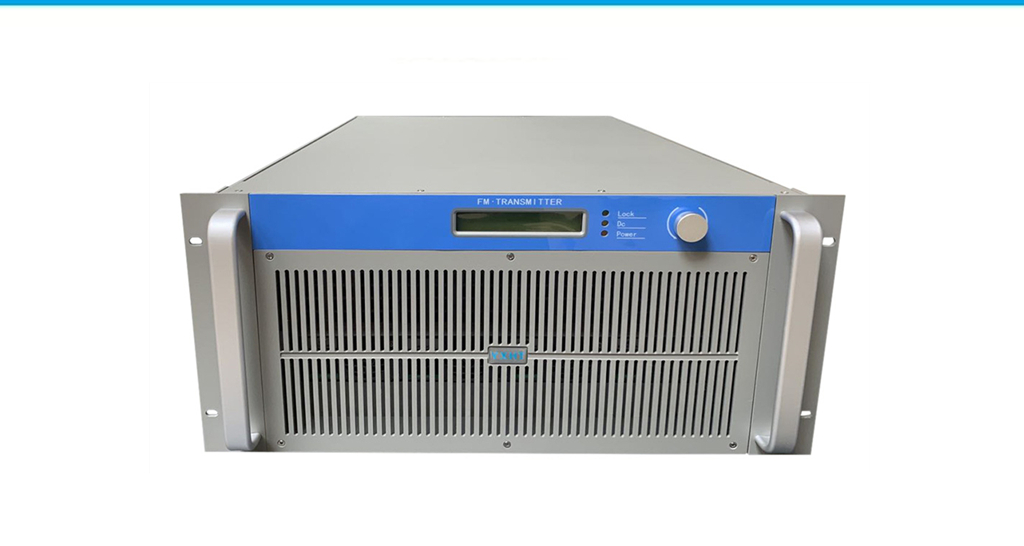

5000W FM Transmitter

General features:
* Professional stereo sound with excellent separation
* Standard 19″ 5H rack, clean design and high quality
* Low distortion and good Signal/Noise ratio
* Built-in CPU system for controlling and monitoring
* Advanced TEMP and SWR protection
* Frequency range: 87.5-108 MHz, 10 KHz/Step
* RF output impedance: 50 Ω

* RF output connector: 7/8" or 1-5/8" flange -female

* Audio input connector: XLR-female
* MPX and AUX input connector: BNC-female
* Pre-emphasis: 0 / 50 / 75 us
* Mains power supply requirements: 90~264VAC;127~370VDC
* Operating temperature range: -10 to 45 ℃
* Weight: 63 Kg
* Size：840mm*470mm*380mm

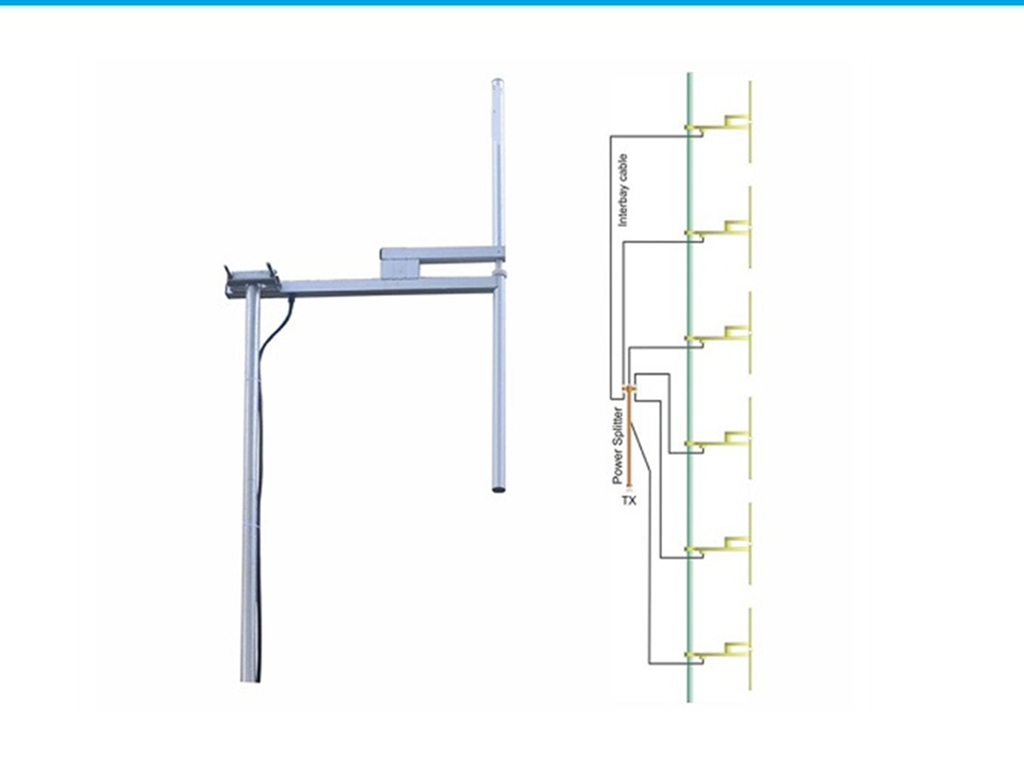

6-Bay Dipole Antenna

* Frequency Range: 87.5Mhz-108Mhz
* Impedance:50ohm
* Connector:NK
* VSWR:<1.35:1 MAX

* Polarization:Vertical
* Dimensions:930*280*50mm
* Weight:40kg with hardware mounting
* Gain:9.8dB
* Max handle power:5KW

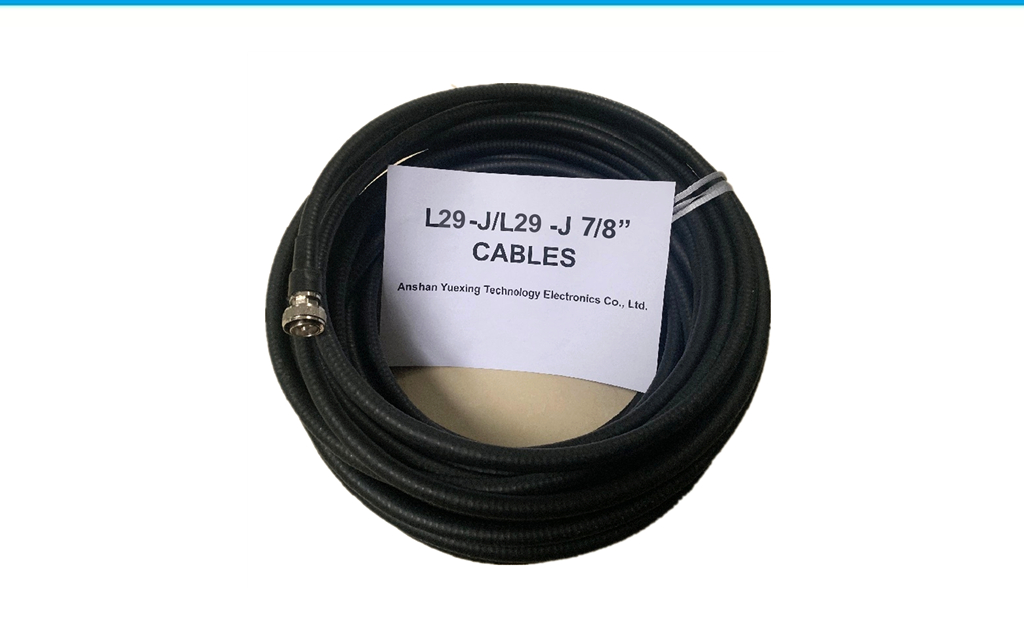

* 7/8" 60meters feeder cable

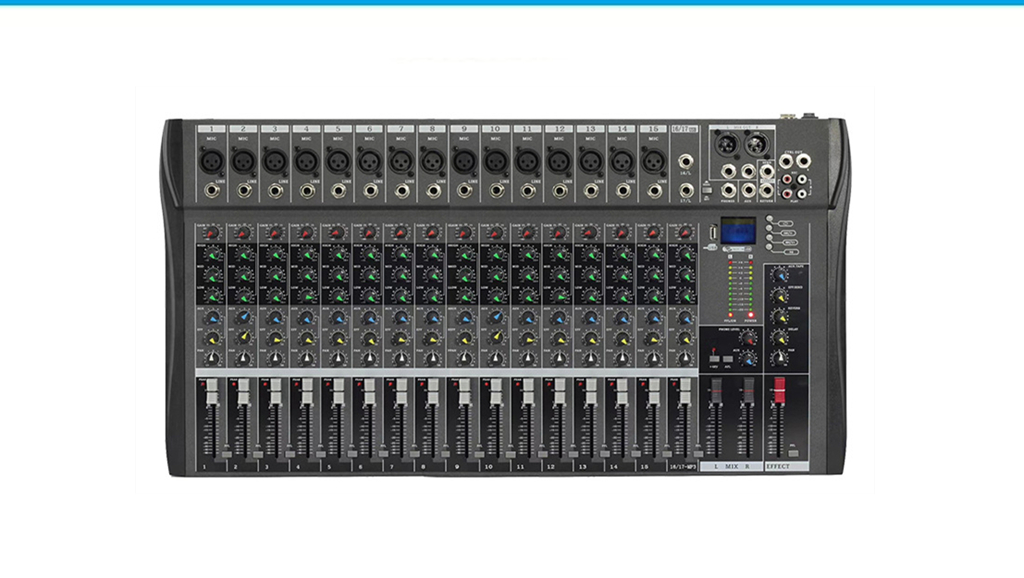

16-way Mixer

1.6/8/12/16channel mono MIC input
2.Provide high quality +48v phantom power
3.Each channel have high&low equalizer,optimized musical performance and adjusted indoor acoustic parameters
4.1 aux sending per channel for pre/post fader swithable for monitoring
5.Built in 10 effects which includes reverb,chorus,flanger,delay,pitch shifter,multieffects,tap function and storable parmeter settings
6.Built in high quality mp3(U-DISK MP3 INPUT)
7.All channel have peak signal indications and pre-fader monitor options
8.Idependent earphone monitor and level diaplay system.

Audio Processor

Feature
* Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated Dynamic Enhancer, De-Esser and Low Contour Filter
* Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
* Adjustable dynamic Enhancer with level meter for brilliant, lively audio even with heavy compression
* IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
* Switchable De-esser removes excessive sibilance from your vocal tracks
* IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
* Automatically or manually adjustable attack and release times

Monitor Speaker

Feature
* Bass is 5.25 inch magnetic steel tape
* 1-inch tweeter with magnetic
* Power 50w
* Peak power 70w

* Physical divider
* Treble independent regulation
* Bass independent regulation
* All wooden box 9mm thick planks
* Rated voltage 220v or 110V

Headphone

Feature
* Wear mode: wearing ear
* Headphones Type: Wired
* Whether the microphone: No
* Headset service: Genius
* Frequency response 18-20000Hz
* impedance of 32 Ohms

* SPL 115 dB SPL / V

* harmonic distortion: <1%, maximum
* input power of 200mW
* leather earmuffs, automatic adjustableand comfortable headset
* lightweight form factor
* Back retractable headphones
* excellent cost performance
