2KW FM Transmitter + 4 Bay Antenna + 30 Meters 7/8" Cable with Connectors

Name: 2KW FM Transmitter + 4 Bay Antenna + 30 Meters 7/8" Cable with Connectors
Brand: yxhtfmtv
Price: 6360.0 USD
Availability: InStock

$6,360.00

~~$6,650.00~~ $6,360.00

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Product Attributes

Brand: yxht

Certification: Ce

Place Of Origin: China

Packaging & Delivery

Selling Units:	Bag/Bags
Package Type:	Carton Wooden Box
Picture Example:

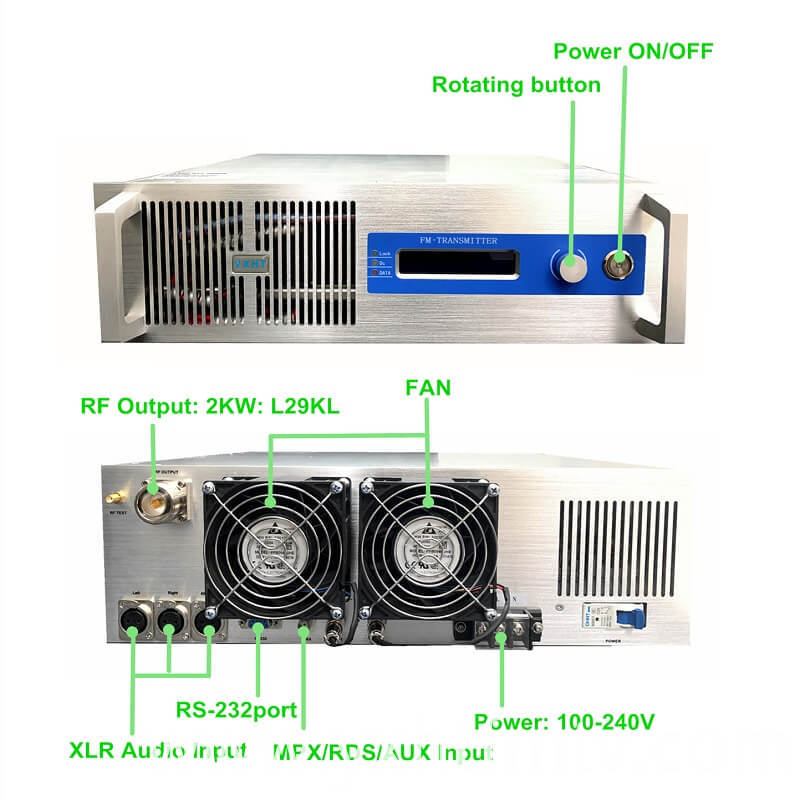

1. New Professional 2KW FM Broadcast Transmitter

The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
High performance and very good reliability has been proved by the large usage of YXHT-2000C transmitters.Also it is low cost and small size.

fm transmitter kit

OUTSTANDING FEATURES:

1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range. 2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile. 3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen. 4) ADJUSTABLE POWER OUTPUT The RF out of this 200w FM transmitter is continuously adjustable from 0-2000 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...2000w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs

1. Frequency Range:	87.0MHz~108 MHz
2. Frequency Setting step:	10KHz
3. Carrier Frequency precision:	±200Hz
4. Residual Wave Radiation:	≥65dBc
5. Audio Input Impedance:	600Ω,Balance
6. Separation:	60dB Pilot Signal Modulation:8%~10%
7. Audio Input Level:	±10dBm,step 0.01dB
8. S/N:	≥75dB(30H~15kHz,100%)
9. Audio Harmonic Distortion:	<0.05%
10. Audio response:	±0.05dB(30Hz~15KHz)
11. Output Load Impedance:	50Ω
12. Output Power:	200W
13. Pre-emphasis:	0μS,50μS,75μS
14. Deviation:	±75kHz
15. Pilot Frequency:	19 kHz±1Hz
16. Sub-carrier Suppression:	≥65dB
17.RF Output Connector:	7/16'(female)or7/8'Flange
18.Size:	460mm480mm88mm
19.Weight:	15KG

Warranty：The warranty of all transmitters in our factory is 6 years.

It can cover 30 to 60KM radius in ideal environment.

Quick Details

1. Frequency Range: 87.0MHz~108 MHz
2. Output Power: 0~2000W
3. Output power deviation: <± 10%
4. Output power stability: <± 3%
5. Output Load Impedance: 50Ω 20. LR channel level difference:<0.1dB (100% modulation)
6. RF Output Interface: 7/16"(female) or 7/8"Flange
7. SFDR: < -70dBM
8. High Harmonic: < -65dBM
9. Residual Amplitude Modulation: < -50dB
10.Carrier Frequency Precision: ±200Hz
11. Analog Audio Input: -12dBm~+8dBm
12. Audio Input Level Gain: -15dB~+15dB, step 0.1dB
13. Audio Input Impedance: 600Ω, Balance, XLR
14. AES / EBU input impedance: 110Ω, Balance, XLR
15. AES / EBU input level: 0.2 ~ 10Vpp
16. AES / EBU sample rate: 30kHz ~ 96kHz
17.SCA Input: Unbalance (optional) BNC connector
18.Pre-emphasis: 0μS, 50μS, 75μS (optional)
19.Audio Response: ±0.1dB (30Hz~15000Hz)
20.Stereo Separation: ≥50dB 30Hz ~ 15000Hz
21.Stereo S/N ratio: ≥70dB 1KHz, 100% modulation
22.Distortion: < 0.1% 30Hz~15000Hz
23.Cooling mode: Forced Convection
24.Temperature Range: -10°C~+45°C
25.Relative humidity: <95%
26.Working Altitude: <4500m
27.Power Consumption: 3300VA
28.Size: 460mm*480mm*88mm
29.Weight: 25KG

2. 4-Bay Dipole Antenna

Frequency Range:	87.5Mhz-108Mhz
Impedance:	50ohm
Connector:	NK
VSWR:	<1.35:1 MAX
Polarization:	Vertical
Dimensions:	140090050mm
Weight:	4kg with hardware mounting
Gain:	8dB
Max handle power:	5KW
