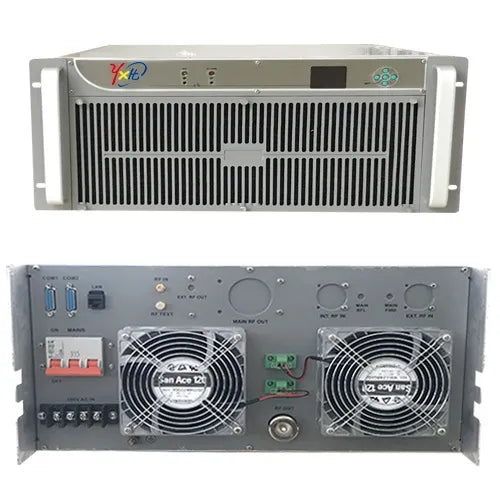

500W Digital TV Transmitter for TV Station
500W Digital TV Transmitter for TV Station
Regular price
$5,300.00
Regular price
$5,200.00
Sale price
$5,300.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Attributes
Brand: yxht
Certification: Ce
Place Of Origin: China
Packaging & Delivery
| Selling Units: | Bag/Bags |
| Package Type: | Carton Wooden Box |
| Picture Example: |
Product Description
500W Digital TV Transmitter
|
1. Working frequency
|
UHF 13-48 channel arbitrary choice
|
|
2. Output power
|
0~500W
|
|
3. Output impedance
|
50Ω
|
|
4. Channel bandwidth
|
8MHz
|
|
5. Output interface
|
Φ40
|
|
6. Output load return loss
|
Normal
|
|
7. operation
|
-32dB
|
|
8. Allowed operation
|
-20dB
|
|
9. Power input level
|
0dBm
|
|
10. Amplifier input impedance
|
50Ω
|
|
11.Amplifier input interface
|
L16
|
|
12. Useless transmission
|
≤-60dB
|
|
13. Band fluctuations
|
±0.5dB
|
|
14. Band shoulder
|
better than 36dB
|
|
15. MER
|
better than 30dB
|
|
16. Size
|
4U,19-inch standard
|
|
17. Weight
|
45KG
|
Overview:
This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the
single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias
(with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
The power amplifier and power supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.

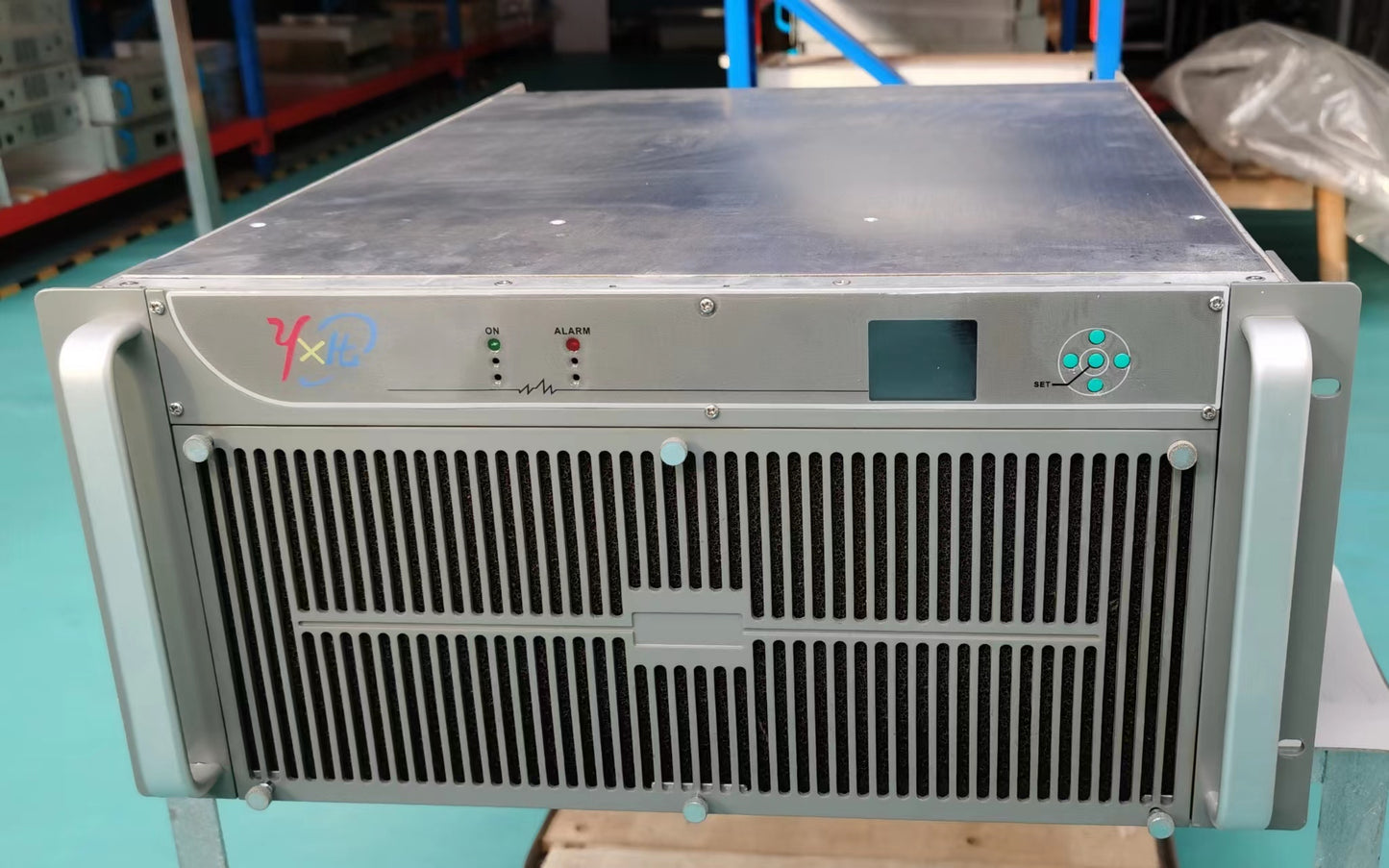

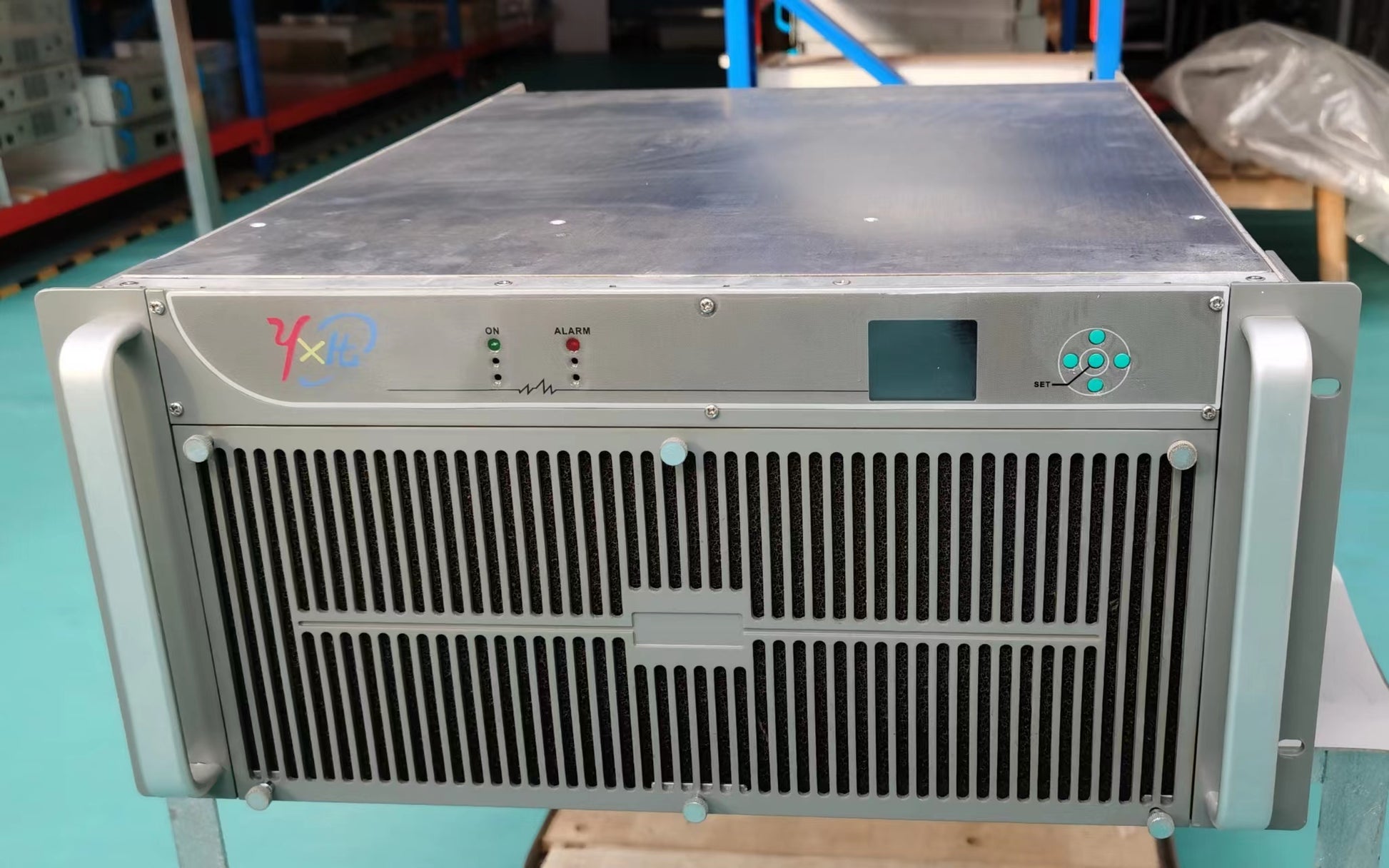

The 500W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.
single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias
(with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
The power amplifier and power supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.
The 500W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.
Warranty：The warranty of all transmitters in our factory is 6 years.
Quick Details
1. Working frequency: UHF 13-48 channel arbitrary choice
2. Channel bandwidth: 8MHz
3. Output power: 500W
4. Output impedance: 50Ω
5. Output interface: L27
6. Output load return loss:Normal operation: -32dB, Allowed operation: -20dB
7. Power input level: 0dBm
8. Amplifier input impedance: 50Ω
9. Amplifier input interface: L16
10.Useless transmission: ≤-60dB
11.Band fluctuations:±0.5dB
12.Band shoulder:better than 36dB
3. Output power: 500W
4. Output impedance: 50Ω
5. Output interface: L27
6. Output load return loss:Normal operation: -32dB, Allowed operation: -20dB
7. Power input level: 0dBm
8. Amplifier input impedance: 50Ω
9. Amplifier input interface: L16
10.Useless transmission: ≤-60dB
11.Band fluctuations:±0.5dB
12.Band shoulder:better than 36dB
Features:
Supported Standards DVB-T,DVB-T2,DVB-H,DTMB,ATSC,ISDB-T
All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
Pre-distortion correction, dual-exciters switch automatically.
High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency
transmitter.
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous
works.
All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
Pre-distortion correction, dual-exciters switch automatically.
High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency
transmitter.
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous
works.
