200w TV Transmitter Broadband

200w TV Transmitter Broadband

Regular price $4,200.00
Regular price $4,500.00 Sale price $4,200.00
Sale Sold out
Shipping calculated at checkout.
Product Attributes

Brandyxht

CertificationCe

Place Of OriginChina

Packaging & Delivery
Selling Units: Bag/Bags
Package Type: Carton Wooden Box

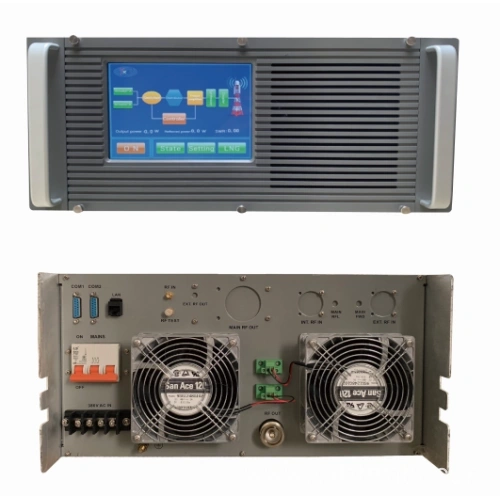

Picture Example:

Product Description

200W TV Transmitter Broadband

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

●All solid-state digital TV Transmitter, bandwidth is 8MHZ.
●Pre-distortion correction, dual-exciters switch automatically.
●High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency transmitter.
●Telemetry and remote control by computer, web-based interface and software.
●Good man-machine interface, full automatic switch the machine with one key.
●Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous works.

200W Tv Transmitter

1.Working frequency: VHF/UHF
2. Channel bandwidth:8MHz
3. Output power: 200W
4. Output impedance:50Ω
5. Output interface:L27
6. Output load return loss:Normal operation: -32dB, Allowed operation: -20dB
7. Power input level:0dBm
8. Amplifier input impedance:50Ω

Overview:

This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the
single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias
(with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
The power amplifier and power supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.

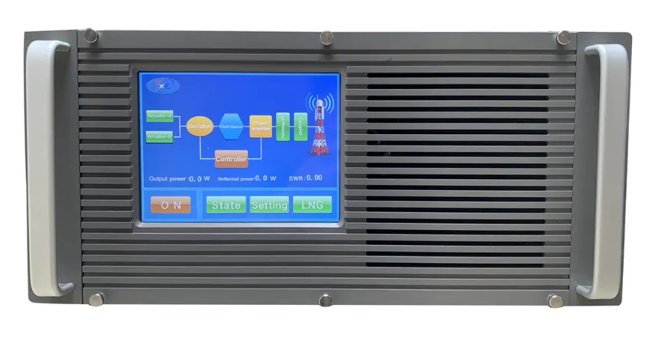

The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.
The 200W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.

200W Digital TV Transmitter

Features:
Supported Standards DVB-T,DVB-T2,DVB-H,DTMB,ATSC,ISDB-T
All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
Pre-distortion correction, dual-exciters switch automatically.
High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency
transmitter.
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous
works.

 Quick Details

1. Working frequency: VHF/UHF
2. Output power: 200W
3. Output impedance: 50Ω
4. Channel bandwidth: 8MHz
5. Output interface: L27
6. Output load return loss: Normal
7. operation: -32dB
8. Allowed operation: -20dB
9. Power input level: 0dBm
10. Amplifier input impedance: 50Ω
11.Amplifier input interface: 7/16"
12. Useless transmission: ≤-60dB
13. Band fluctuations: ±0.5dB
14. Band shoulder: better than 36dB
15. MER: better than 30dB
16. Size: 4U,19-inch standard
17. Weight: 35KG

FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
