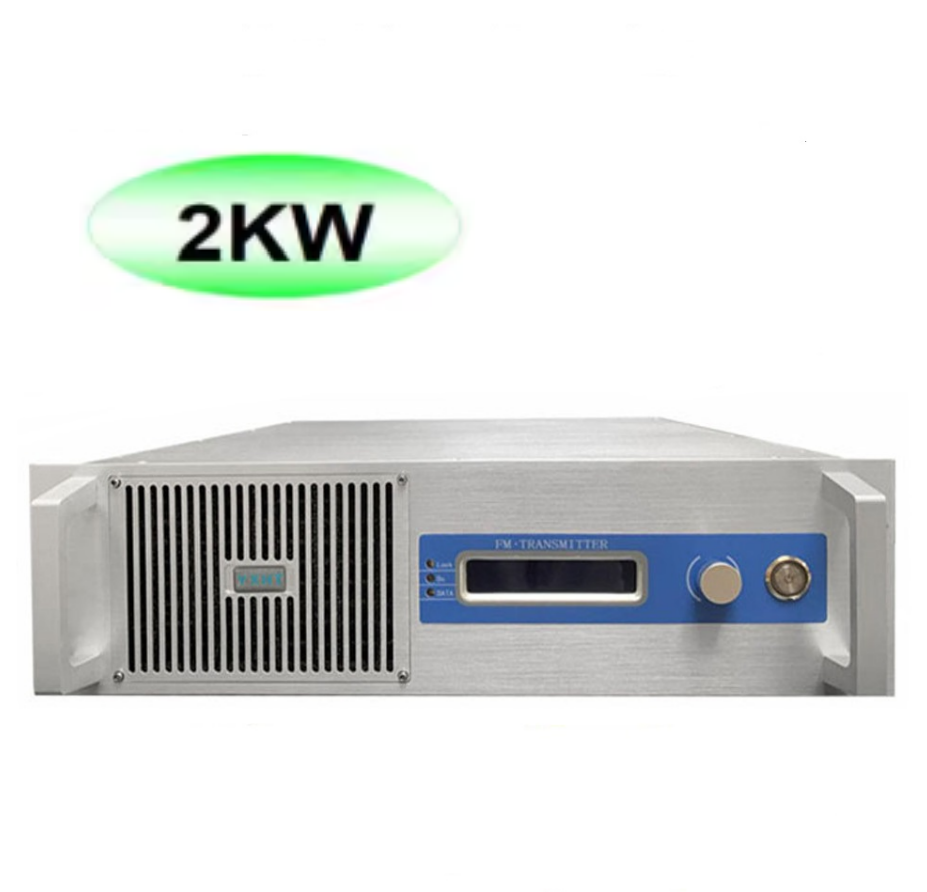

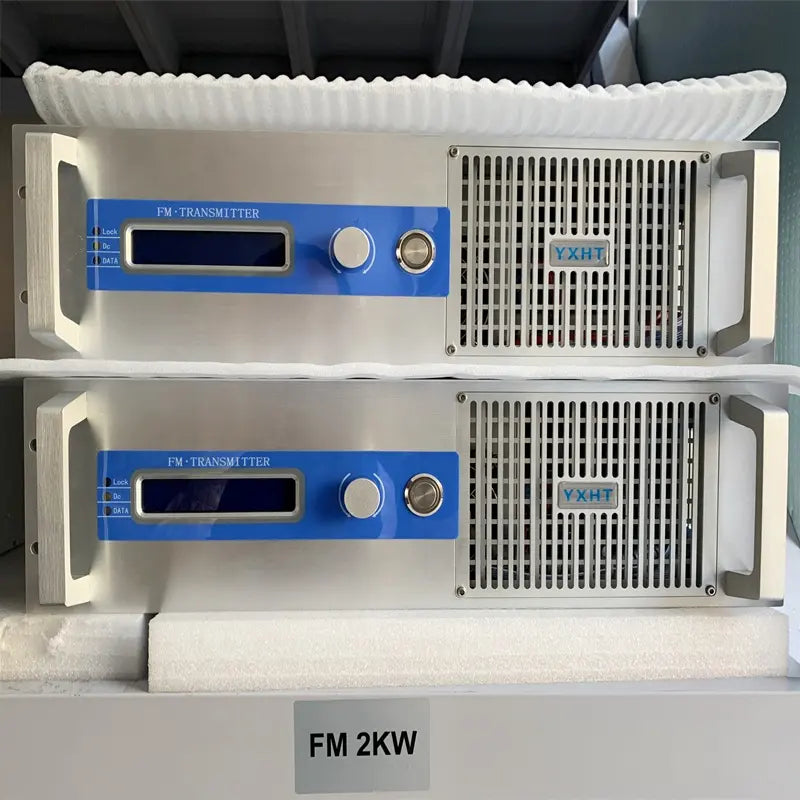

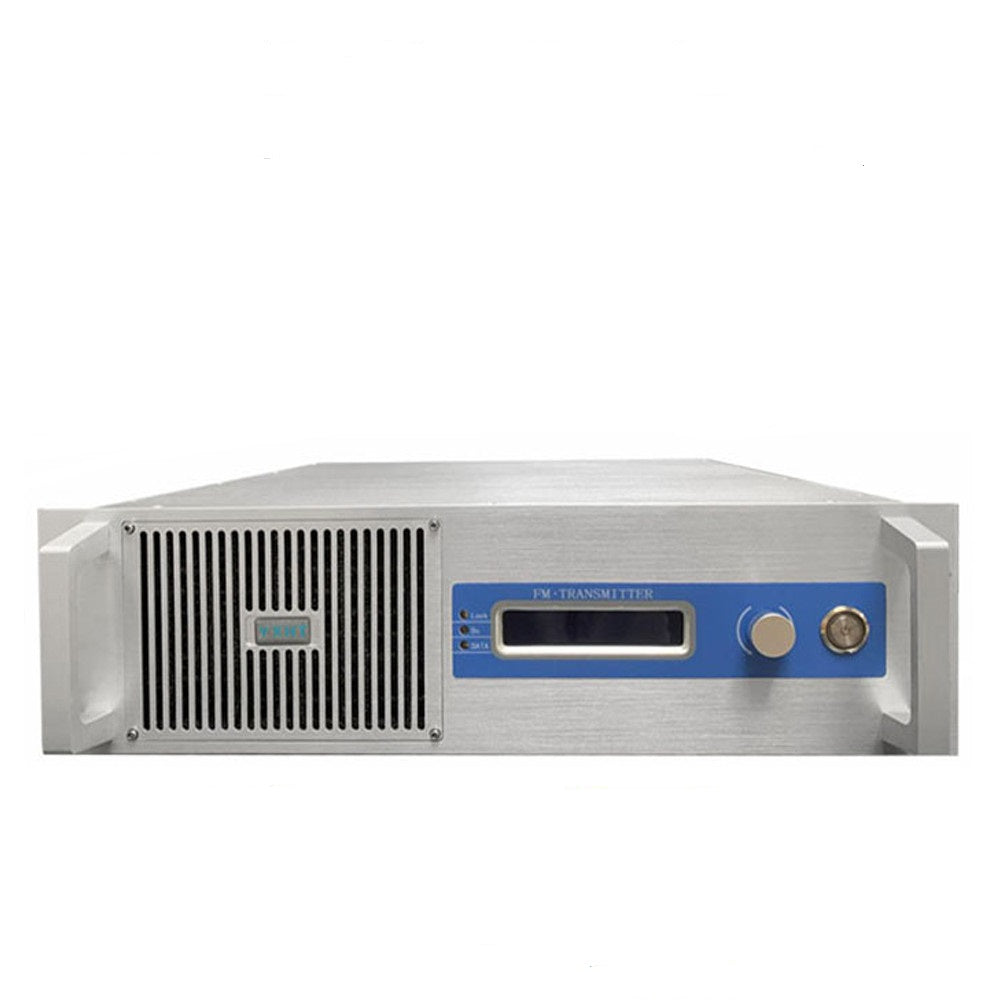

YXHT-1, 2KW FM Stereo Broadcast Transmitter 6 year warranty Free Shipping
YXHT-1, 2KW FM Stereo Broadcast Transmitter 6 year warranty Free Shipping
Couldn't load pickup availability
Brand: yxht
Certification: CE, FCC, ISO
Place Of Origin: China
| Selling Units: | Bag/Bags |
| Package Type: | Carton Wooden Box |
| Picture Example: |  |
2kW is a profesional FM stereo/Mono broadcasting transmitter. The advanced digital technologies,Digital Signal Processor(DSP), are used in the transmitters to get little size , high performance and high reliability. 2KW FM Transmitter widely used for professional radio stations to transmit high quality FM radio programs.
2KW FM transmitternewest generation of FM audio transmitter with low and medium power. It adopts advanced third generation of FM modulation technologies: digital signal processing (FPGA) and digital frequency synthesis technology (DAC). takes use of the advantage of digital audio processing technology to provide users a CD quality hearing experience with high linear and high gain LDMOS tube amplifier module.
It can cover 30 to 60KM radius in ideal environment.
|
1. Frequency Range:
|
87.0MHz~108 MHz
|
|
2. Frequency Setting step:
|
10KHz
|
|
3. Carrier Frequency precision:
|
±200Hz
|
|
4. Residual Wave Radiation:
|
≥65dBc
|
|
5. Audio Input Impedance:
|
600Ω,Balance
|
|
6. Separation:
|
60dB Pilot Signal Modulation:8%~10%
|
|
7. Audio Input Level:
|
±10dBm,step 0.01dB
|
|
8. S/N:
|
≥75dB(30H~15kHz,100%)
|
|
9. Audio Harmonic Distortion:
|
<0.05%
|
|
10. Audio response:
|
±0.05dB(30Hz~15KHz)
|
|
11. Output Load Impedance:
|
50Ω
|
|
12. Output Power:
|
200W
|
|
13. Pre-emphasis:
|
0μS,50μS,75μS
|
|
14. Deviation:
|
±75kHz
|
|
15. Pilot Frequency:
|
19 kHz±1Hz
|
|
16. Sub-carrier Suppression:
|
≥65dB
|
|
17.RF Output Connector:
|
7/16'(female)or7/8'Flange
|
|
18.Size:
|
460mm*480mm*88mm
|
|
19.Weight:
|
15KG
|
Features:
· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter

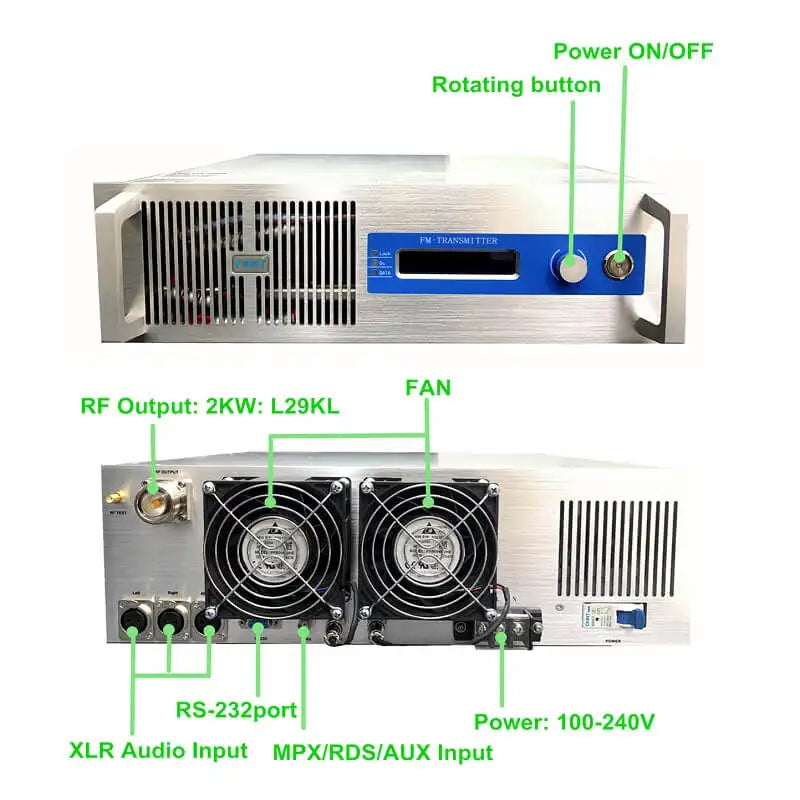

· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure
Warranty：The warranty of all transmitters in our factory is 6 years.
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 500W FM Transmitter is continuously adjustable from 0-500 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...500w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
