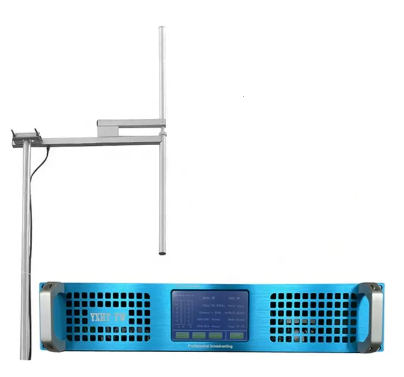

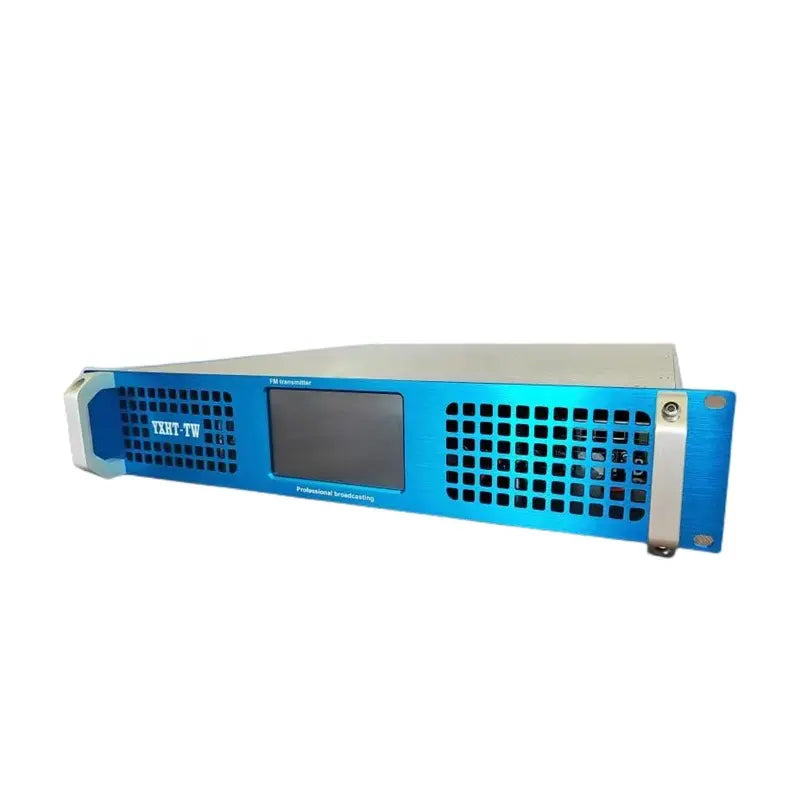

1KW Touch Screen Radio broadcast Transmitter + Dipole Antenna Free Shipping
1KW Touch Screen Radio broadcast Transmitter + Dipole Antenna Free Shipping
Regular price
$2,150.00
Regular price
$2,290.00
Sale price
$2,150.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Attributes
| Certification: CE,FCC,ISO | Place Of Origin: China |
| Package Type: Carton Wooden Box | Delivery Period:7-10 days |
| Brand: yxht |
It can cover 20 to 25KM radius in ideal environment.
|
1. Frequency Range:
|
87.5MHz~108 MHz
|
|
2. Frequency Setting step:
|
10KHz
|
|
3. Carrier Frequency precision:
|
±200Hz
|
|
4. Residual Wave Radiation:
|
≥65dBc
|
|
5. Audio Input Impedance:
|
600Ω,Balance
|
|
6. Separation:
|
60dB Pilot Signal Modulation:8%~10%
|
|
7. Audio Input Level:
|
±10dBm,step 0.01dB
|
|
8. S/N:
|
≥75dB(30H~15kHz,100%)
|
|
9. Audio Harmonic Distortion:
|
<0.05%
|
|
10. Audio response:
|
±0.05dB(30Hz~15KHz)
|
|
11. Output Load Impedance:
|
50Ω
|
|
12. Output Power:
|
1000W
|
|
13. Pre-emphasis:
|
0μS,50μS,75μS
|
|
14. Deviation:
|
±75kHz
|
|
15. Pilot Frequency:
|
19 kHz±1Hz
|
|
16. Sub-carrier Suppression:
|
≥65dB
|
|
17.RF Output Connector:
|
7/16'(female)or7/8'Flange
|
|
18.Size:
|
460mm*480mm*88mm
|
|
19.Weight:
|
16KG
|
|
20.Pilot Signal Modulation:
|
8%~10%
|
|

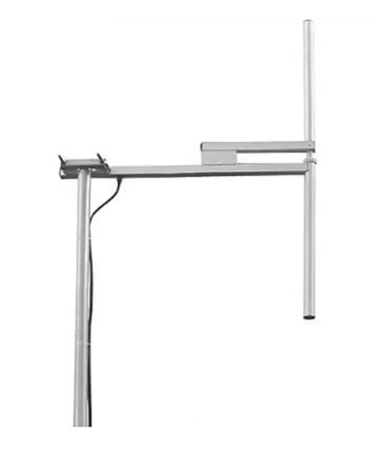

Frequency Range:
|
87.5Mhz-108Mhz
|
|
Impedance:
|
50ohm
|
|
Connector:
|
NK
|
|
VSWR:
|
<1.35:1 MAX
|
|
Polarization:
|
Vertical
|
|
Dimensions:
|
1400*900*50mm
|
|
Weight:
|
4kg with hardware mounting
|
|
Gain:
|
2.0dB
|
|
Max handle power:
|
2KW
|
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter

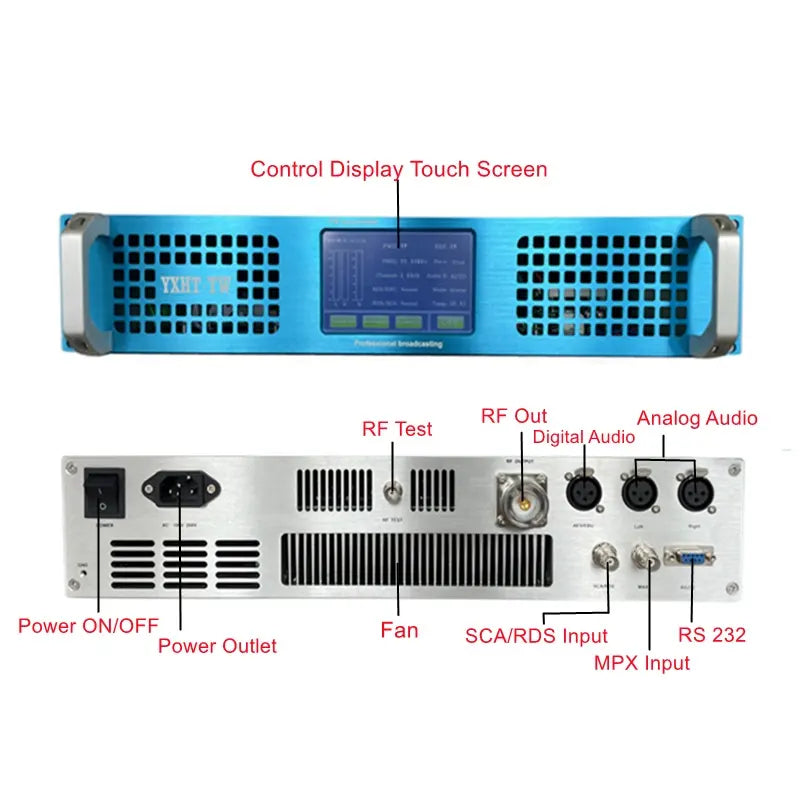

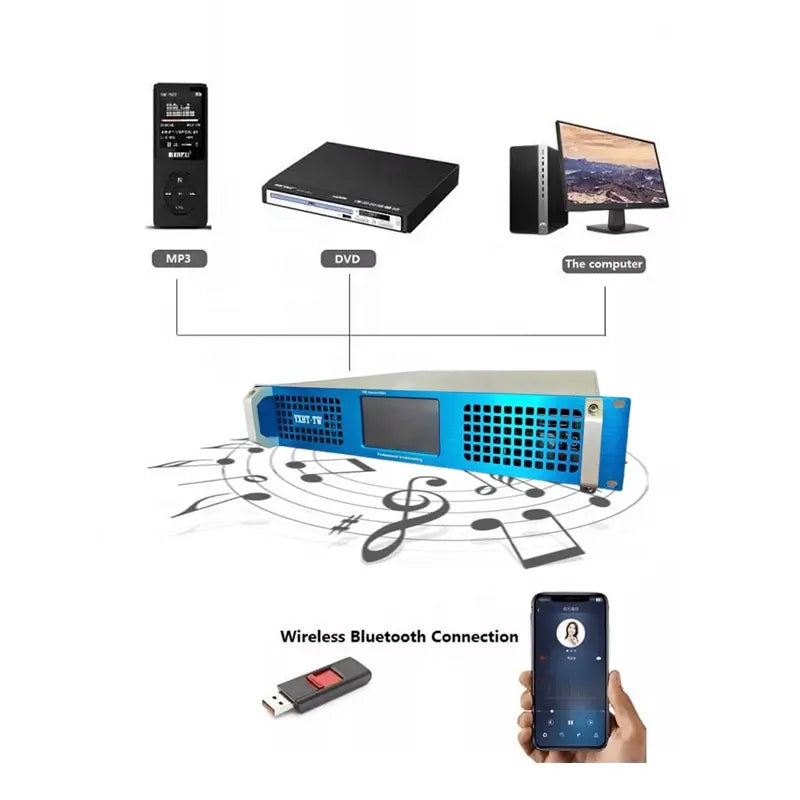

· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure
