1KW Radio Station Equipment Complete FM Transmitter 2 bay antenna

1KW Radio Station Equipment Complete FM Transmitter 2 bay antenna

Regular price $3,370.00
Regular price Sale price $3,370.00
Sale Sold out
Shipping calculated at checkout.
Product Attributes



Place Of OriginChina

Packaging & Delivery
Selling Units: Bag/Bags
Package Type: Carton Wooden Box
Picture Example:

Product Description

1KW Radio Station Equipment Complete FM Transmitter

>This is the 1000W transmitter cover range 20-30KM outside.It set for the people who want to build the fm station first time. It is widely used on the meeting ,village broadcasting,Speech ,concert .And alsoschools,supermarkets, factories, railway stations, conferences. You can build your own station easily.

>The LCD screen will show all the operation.It is easy to control with one Tuning button.
>It has TEMP protection - SWR protection. It will be warning when there is something wrong.
>The PLL funtion will let the transmitter in a very good singal and frequency.
>The stereo voice bring you nice trip of listening.
>This transmitter will come with English manual to tell you how to operate it .We also have the engineer to help you with all the problem online.
Broadcasters - experience the highest quality audio, always-on broadcasting, and the lowest total cost of ownership.

· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure

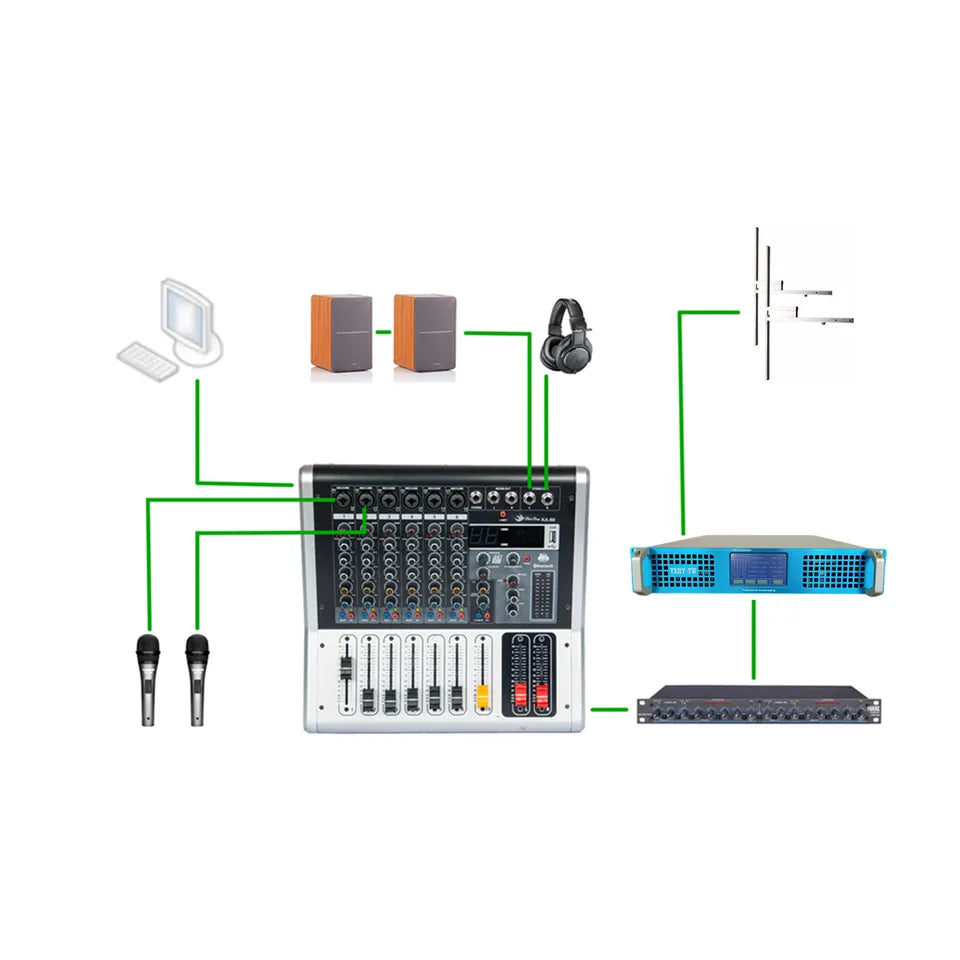

Equipments included:
1.One 1000W FM Transmitte
2.One Dipole Antenna
3.One 30M Coaxial Cable

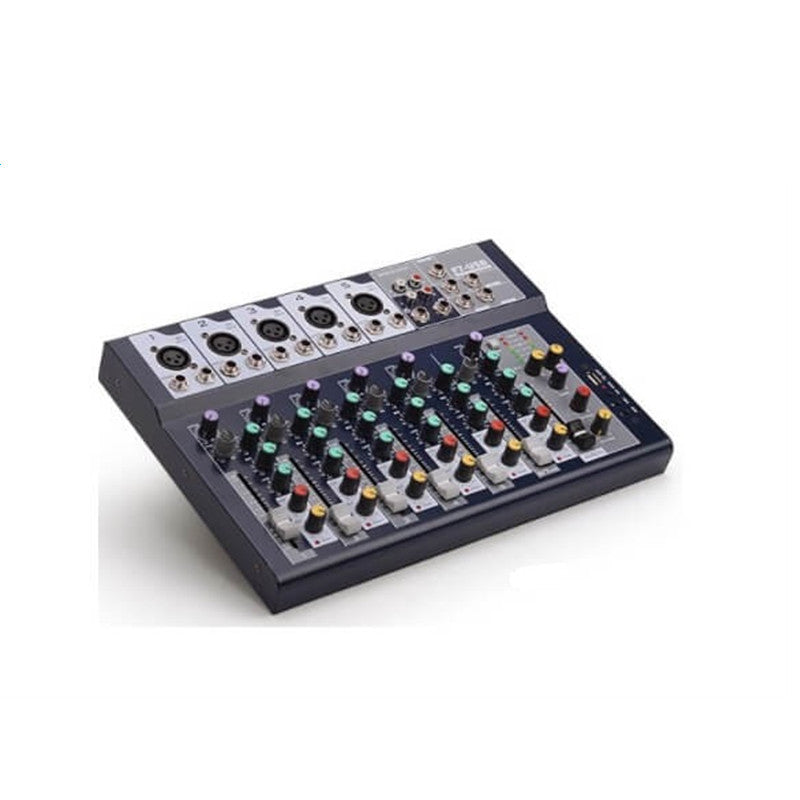

4.One 6-way Mixer

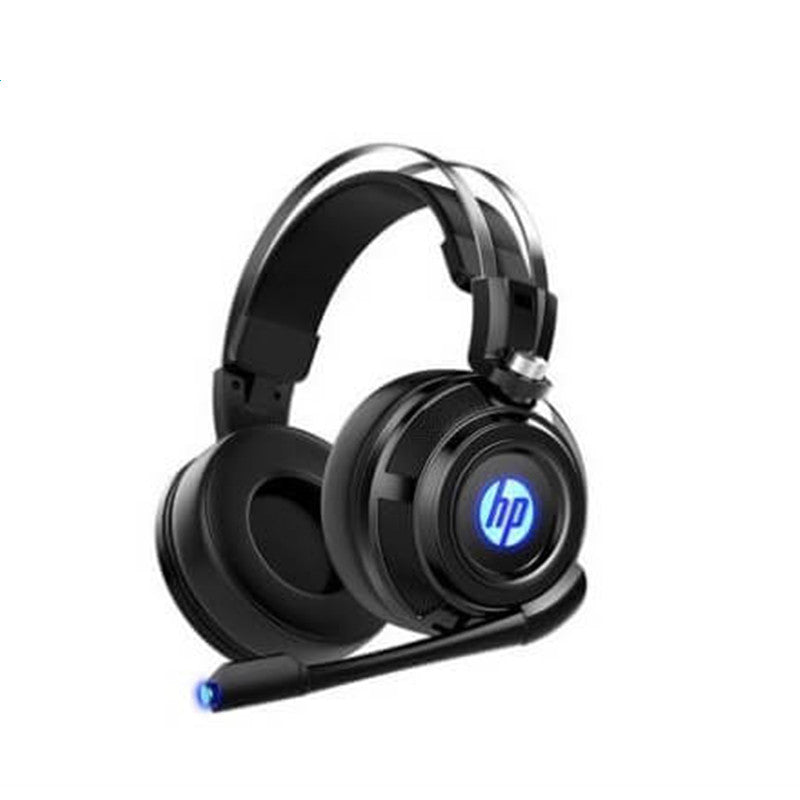

5.One Monitor Headphone

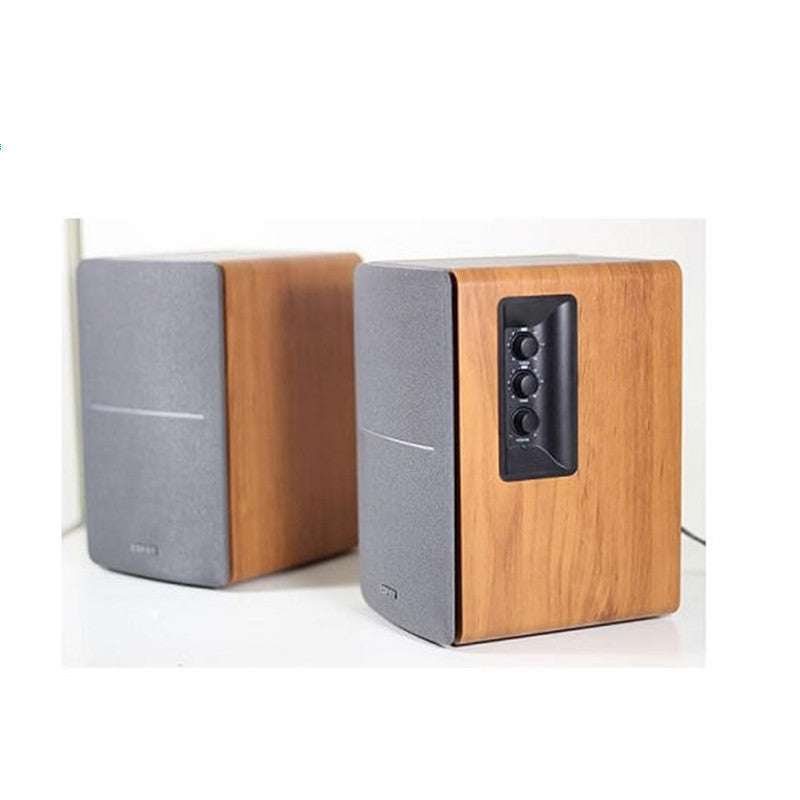

6.One Monitor Speaker

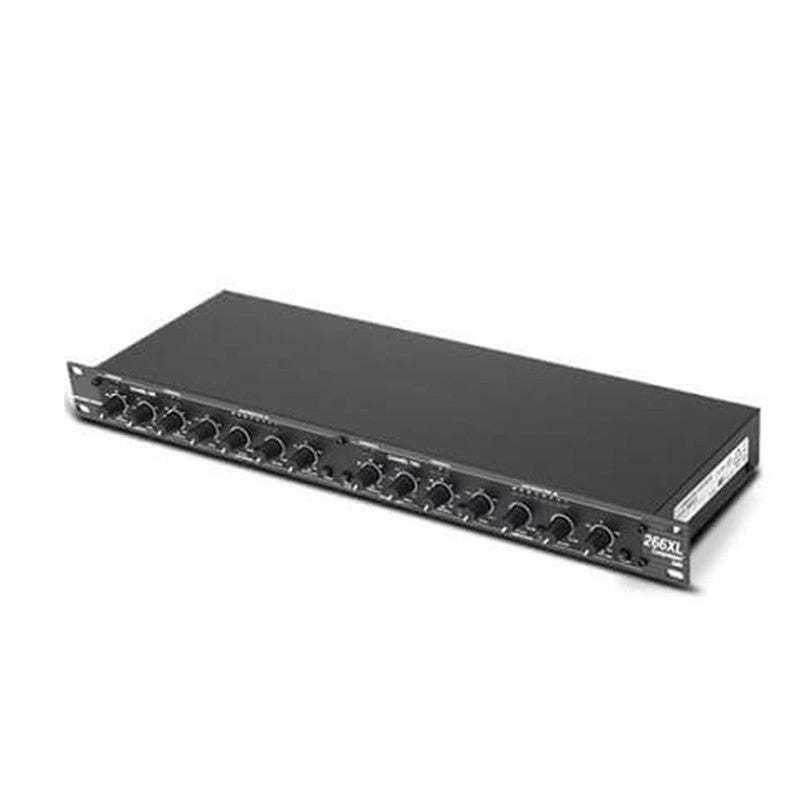

7.One Audio Processor

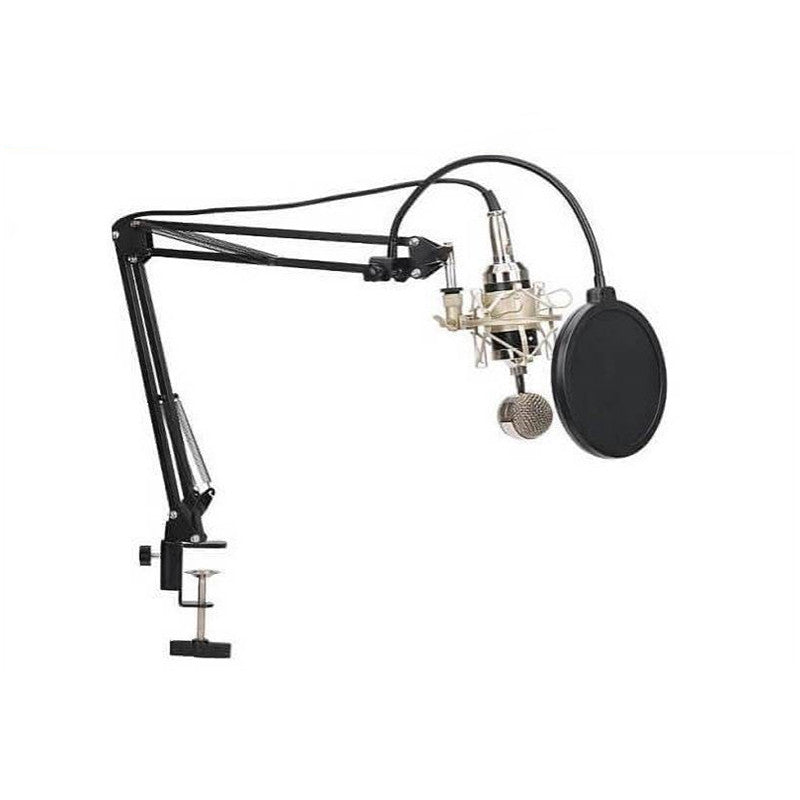

8.One Microphone
9.One Microphone Stand
10.One BOP cover

It can cover 20 to 25KM radius in ideal environment.

Quick Details

Frequency Range: 87.0MHz~108 MHz
Frequency Setting step: 10KHz
Carrier Frequency precision: ±200Hz
Residual Wave Radiation: ≥65dBc
Audio Input Impedance: 600Ω,Balance
Separation: 60dB Pilot Signal Modulation:8%~10%
Audio Input Level: ±10dBm,step 0.01dB
S/N: 75dB(30H~15kHz,100%).
Audio Harmonic Distortion: <0.05%
Audio response: ±0.05dB(30Hz~15KHz)
Certification: CNAS

Output Load Impedance: 50Ω
Output Power: 1000W
Pre-emphasis: 0μS,50μS,75μS
Deviation: ±75kHz
Pilot Frequency: 19 kHz±1Hz
Sub-carrier Suppression: ≥65dB
RF Output Connector: 7/16'(female)or7/8'Flange
Size: 460mm*480mm*88mm
Weight: 16KG

Pilot Signal Modulation: 8%~10%


1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

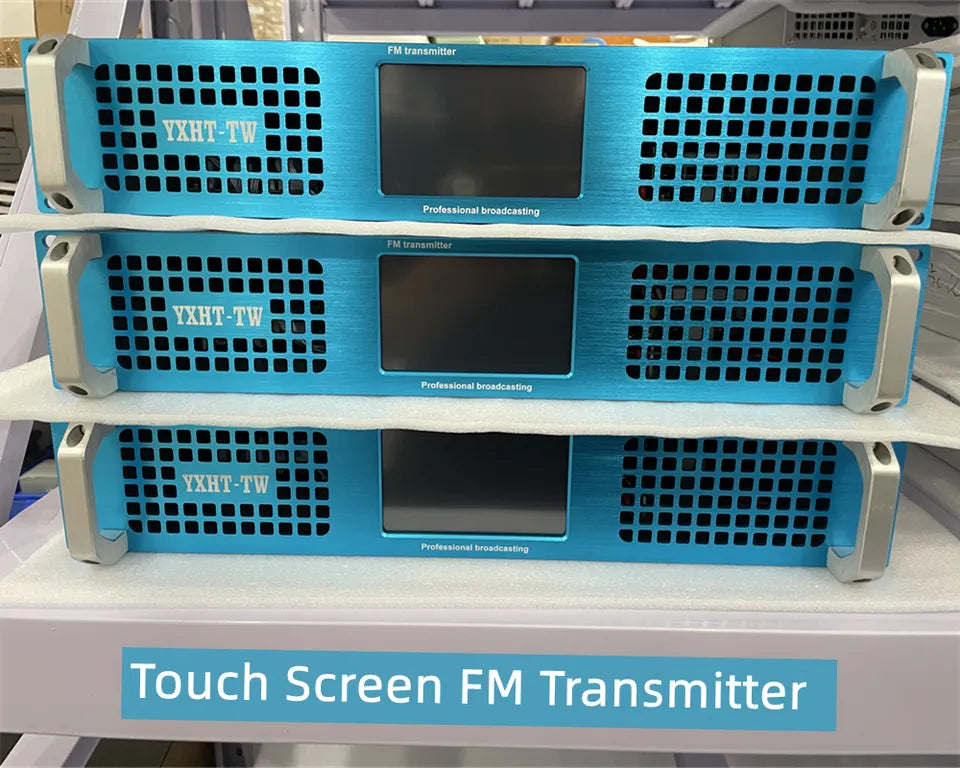

 1000W YXHT-TW FM Transmitter

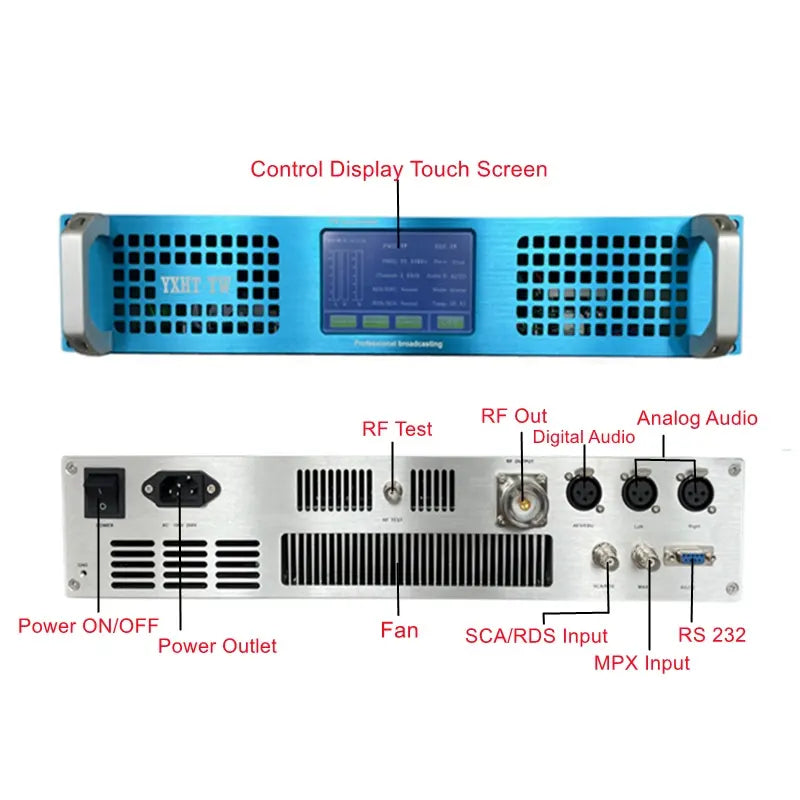

General features:
* Professional stereo sound with excellent separation
* Standard 19″ 2H rack, clean design and high quality
* Low distortion and good Signal/Noise ratio
* Built-in CPU system for controlling and monitoring
* Advanced TEMP and SWR protection
* Frequency range: 87.5-108 MHz, 10 KHz/Step
* RF output impedance: 50 Ω
* RF output connector: L29 type -female
* Audio input connector: XLR-female
* MPX and AUX input connector: BNC-female
* Pre-emphasis: 0 / 50 / 75 us
* Mains power supply requirements: 90~264VAC;127~370VDC
* Operating temperature range: -10 to 45 ℃
* Weight: 13 Kg
* Size:460mm*480mm*88mm

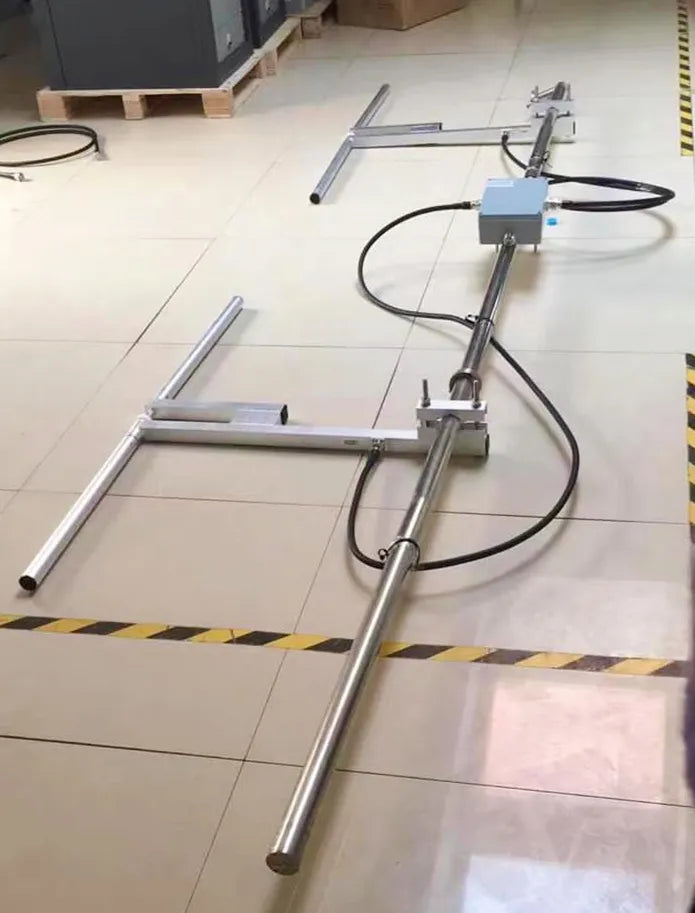

2 Bay Dipole Antenna

Electrical specification:
* Frequency Range: 87.5Mhz-108Mhz
* Impedance:50ohm
* Connector:NK
* VSWR:<1.35:1 MAX
* Polarization:Vertical
* Dimensions:1400*900*50mm
* Weight:8kg with hardware mounting
* Gain:5.0dB
* Max handle power:2KW

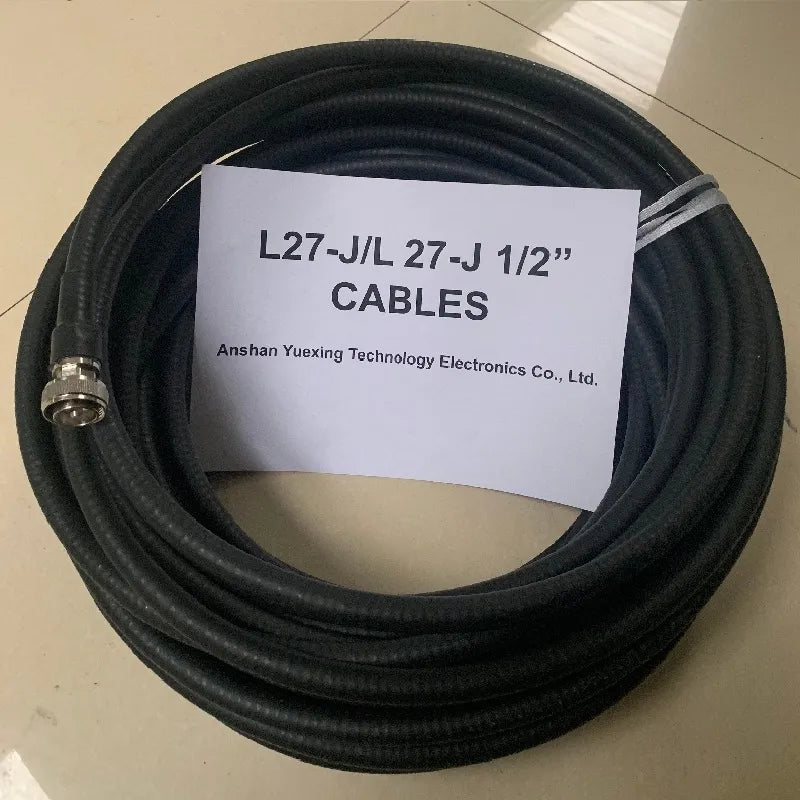

1/2" 30meters feeder cable

1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 500W FM Transmitter is continuously adjustable from 0-500 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...500w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
