YXHT 1000w FM Radio Broadcasting Transmitter Free Shipping

YXHT 1000w FM Radio Broadcasting Transmitter Free Shipping

Regular price $1,860.00
Regular price $1,960.00 Sale price $1,860.00
Sale Sold out
Shipping calculated at checkout.
Product Attributes
Selling Units: Bag/Bags
Brandyxht Package Type: Carton Wooden Box
CertificationCE, FCC, ISO Place Of OriginChina

Product Description

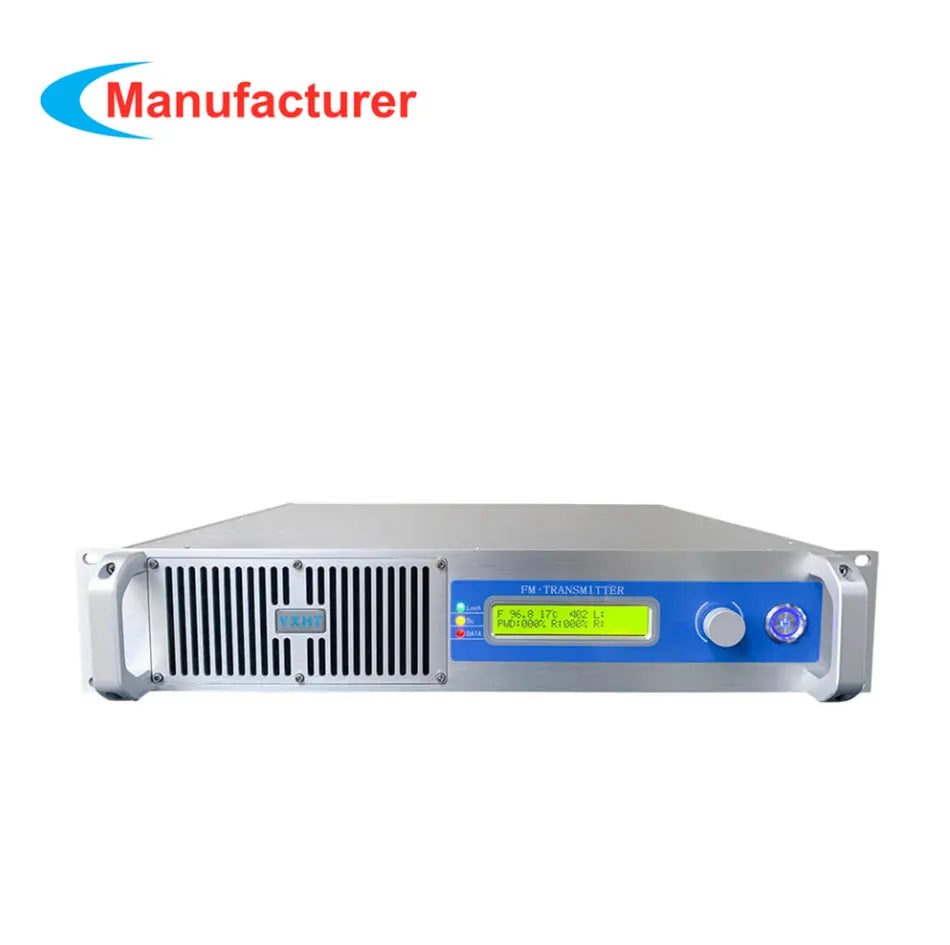

1KW FM Broadcast Transmitter

The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.

· High performance and very good reliability has been proved by the large usage of YXHT-1000C transmitters.Also it is low cost and small size.
Features:
· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter

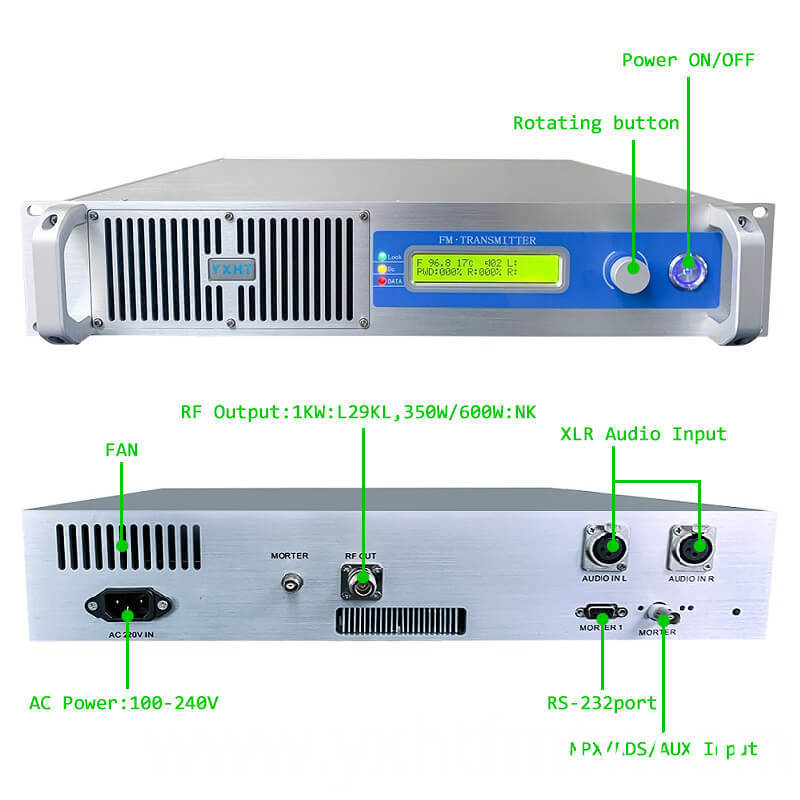

· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.

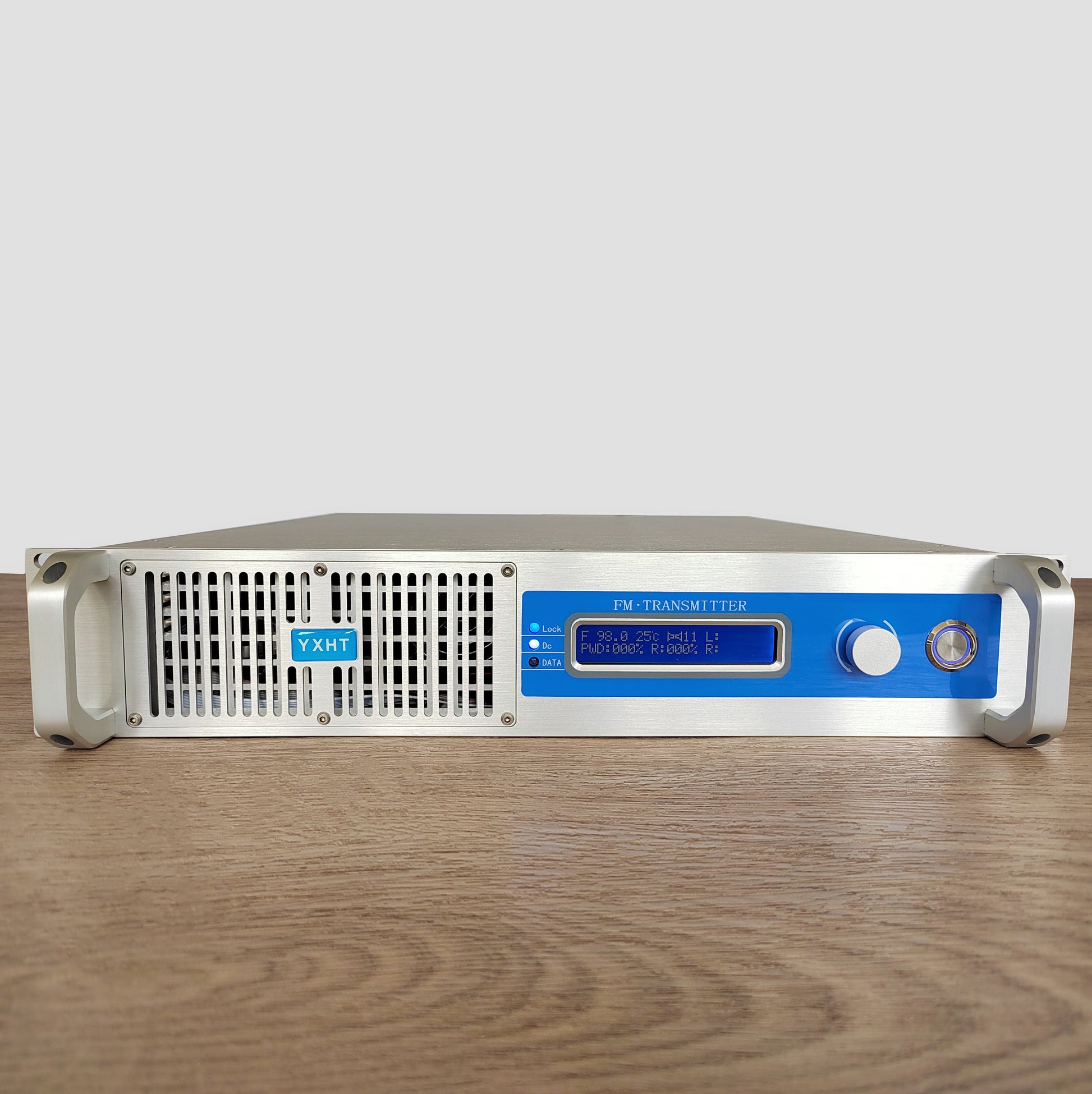

· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security

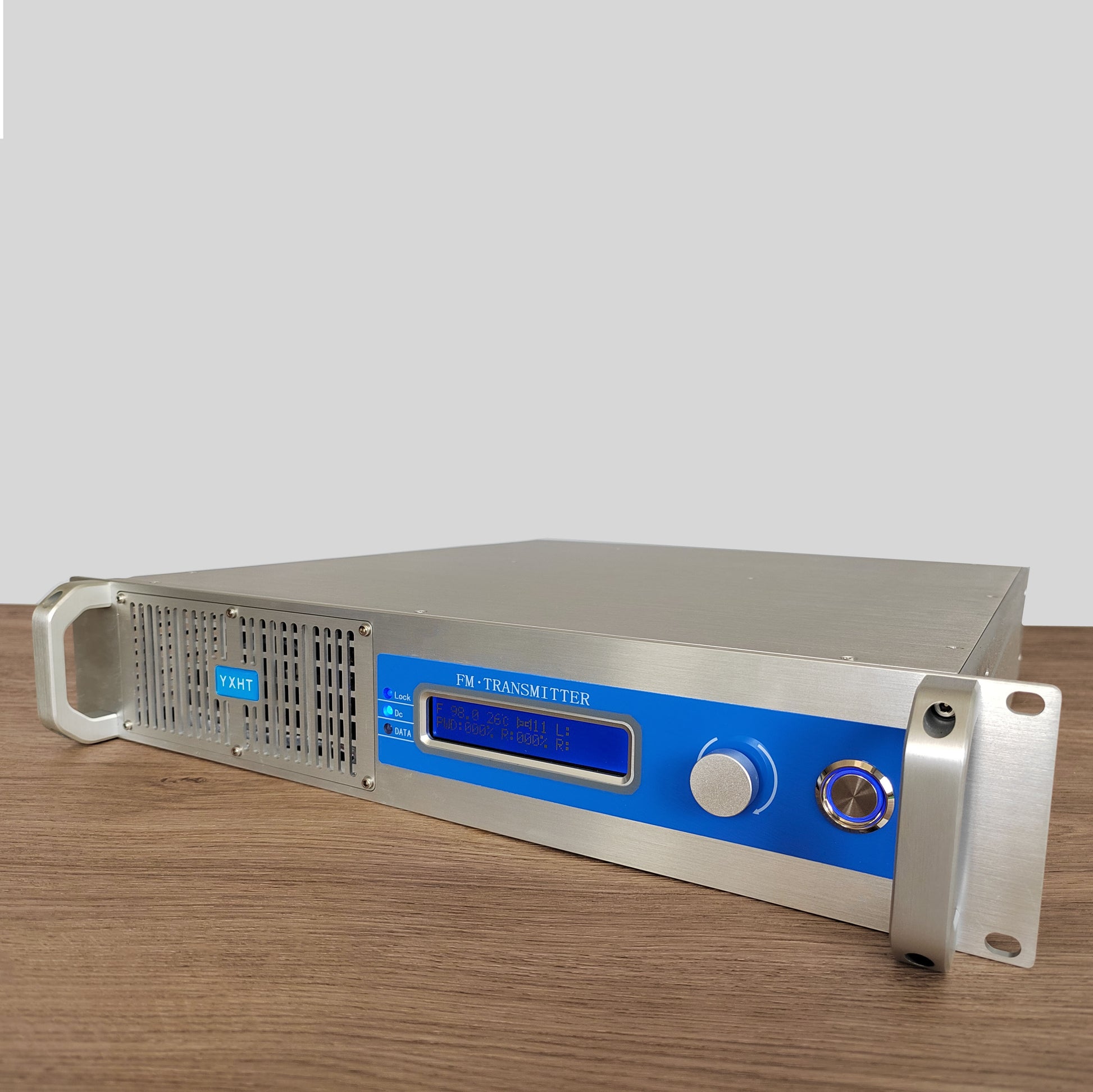

· Compact structure

It can cover 20 to 25KM radius in ideal environment.

Quick Details

Frequency Range: 87.0MHz~108 MHz
Frequency Setting step: 10KHz
Carrier Frequency precision: ±200Hz
Residual Wave Radiation: ≥65dBc
Audio Input Impedance: 600Ω,Balance
Separation: 60dB Pilot Signal Modulation:8%~10%
Audio Input Level: ±10dBm,step 0.01dB
S/N: 75dB(30H~15kHz,100%).
Audio Harmonic Distortion: <0.05%
Audio response: ±0.05dB(30Hz~15KHz)
Certification: CNAS

Output Load Impedance: 50Ω
Output Power: 1000W
Pre-emphasis: 0μS,50μS,75μS
Deviation: ±75kHz
Pilot Frequency: 19 kHz±1Hz
Sub-carrier Suppression: ≥65dB

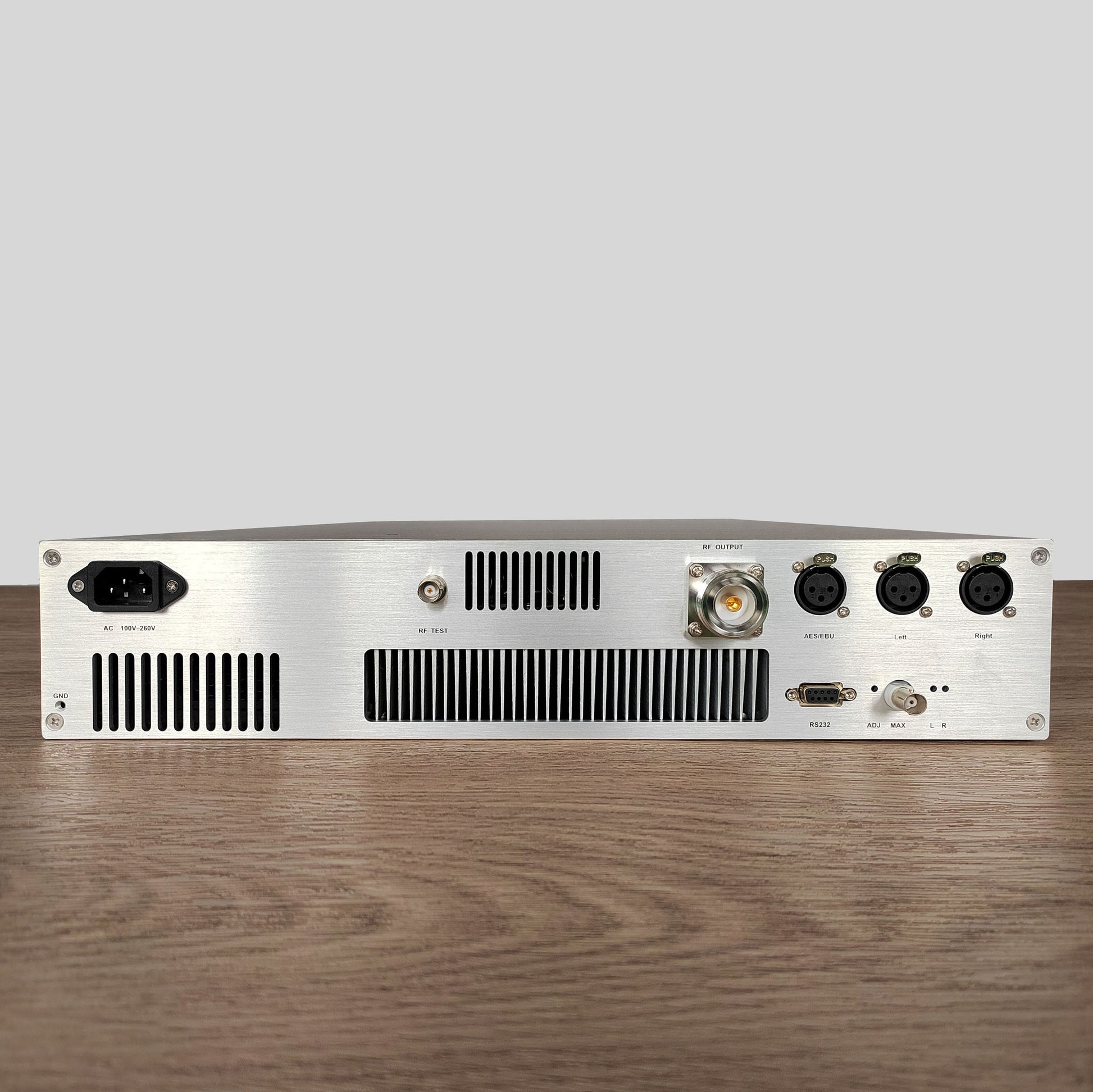

RF Output Connector: 7/16'(female)or7/8'Flange
Size: 460mm*480mm*88mm
Weight: 16KG

Pilot Signal Modulation: 8%~10%

Hf6327cf7875b4ada8489fd266017bcc7y

 FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 500W FM Transmitter is continuously adjustable from 0-500 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...500w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
