50W Stereo FM Broadcasting Transmitter 6 year warranty Free Shipping
50W Stereo FM Broadcasting Transmitter 6 year warranty Free Shipping
Impossible de charger la disponibilité du service de retrait
Brand: yxht
Certification: CE, FCC, ISO
Place Of Origin: China
| Selling Units: | Bag/Bags |
| Package Type: | Carton Wooden Box |
| Picture Example: |

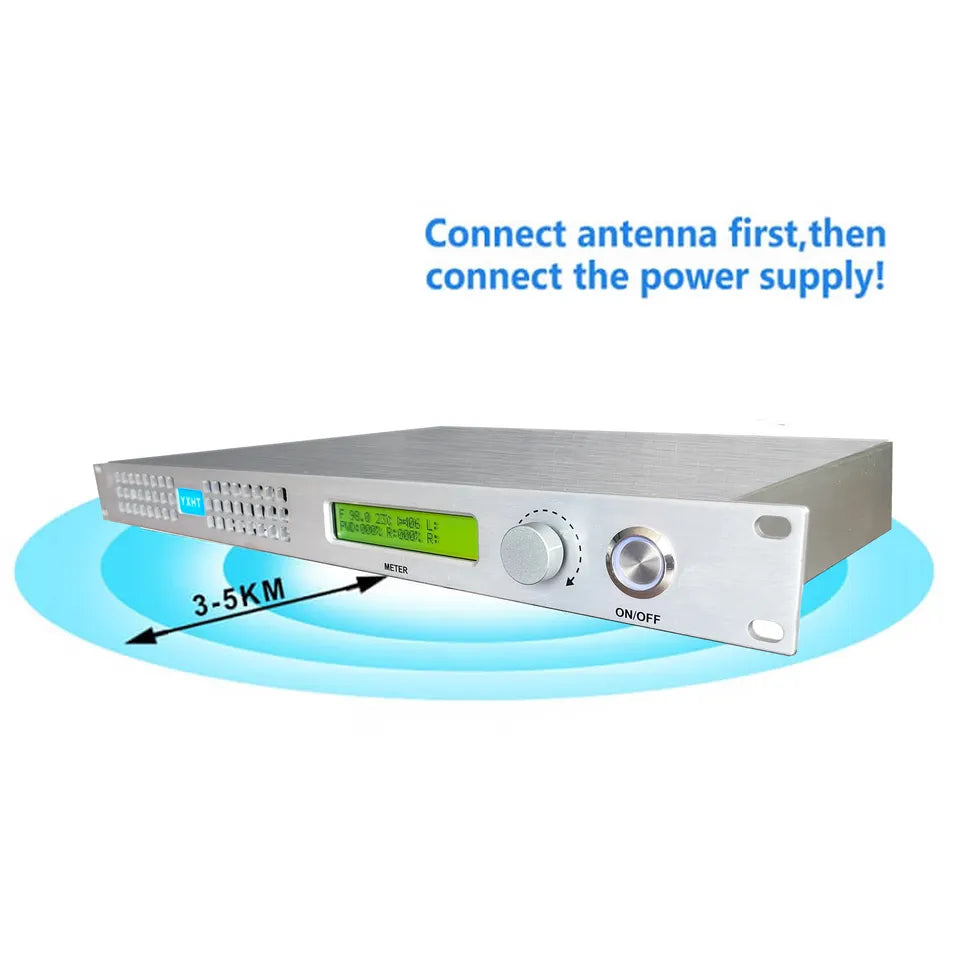

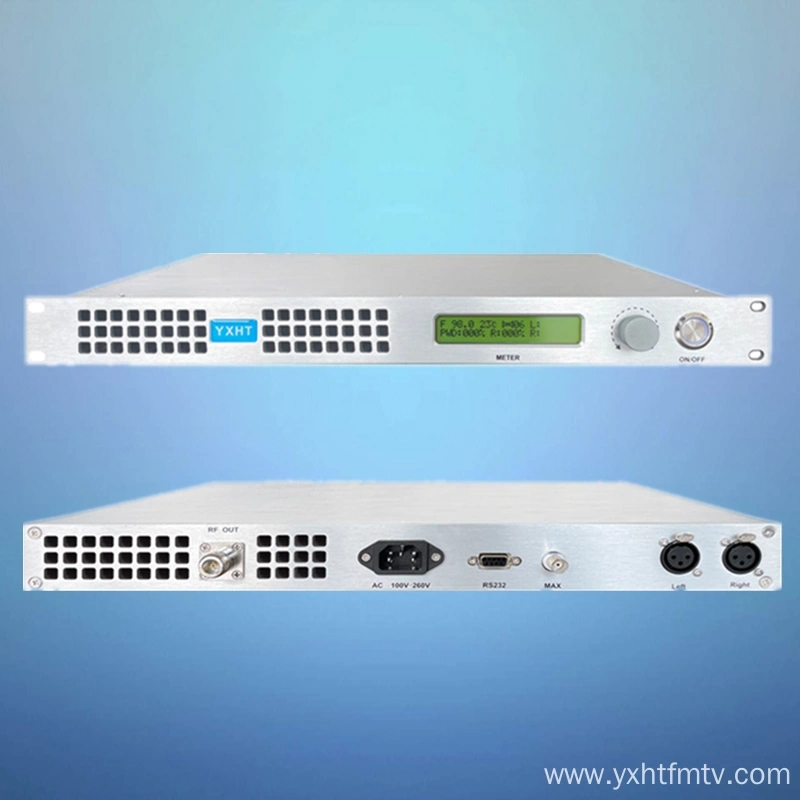

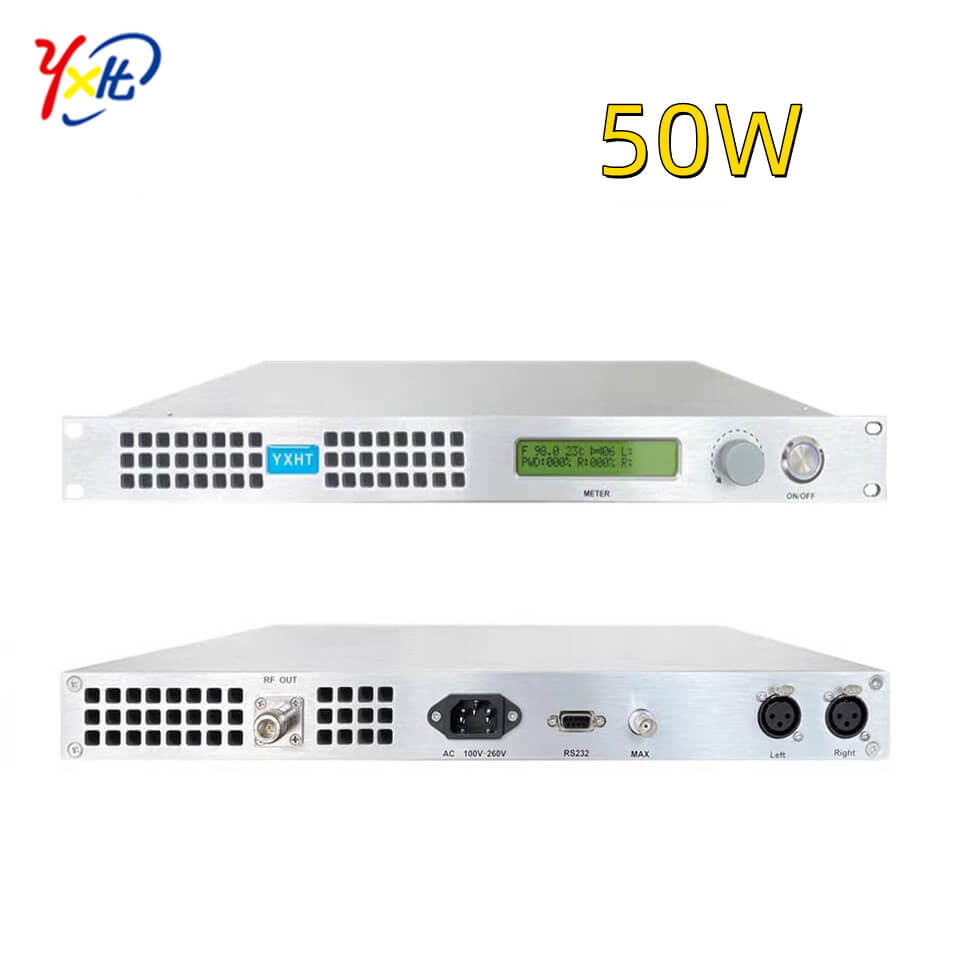

50W Stereo FM Broadcasting Transmitter
50W/100W/300W is a professional FM stereo/Mono broadcasting transmitter. The advanced digital technologies, Digital Signal Processor (DSP) and Digital Direct Synthesizer (DDS), are used in the transmitters to get little size, high performance and high reliability. They are widely used for professional radio stations to transmit high quality FM radio programs.
Professional FM Transmitter(Exciter) with CD-quality broadcasting.
All digital technology executes analog FM broadcast. DSP(Digital Signal processor)+DDS(Direct Digital Synthesis frequency) .

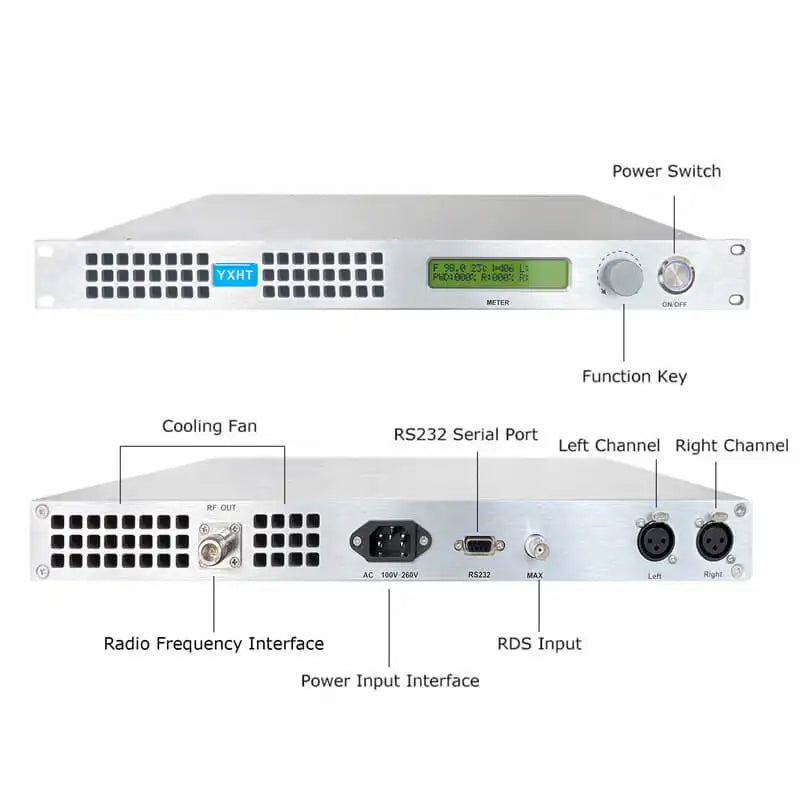

Analog and digital (AES/EBU) audio signal input directly.
AGC circuit can keep the Output Power stability.
Big LCD display all the parameters in real time.
Communication Interface by RS232 for remote
Five kinds of protections for the security
Stainless steel cabinet
Features:
· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure

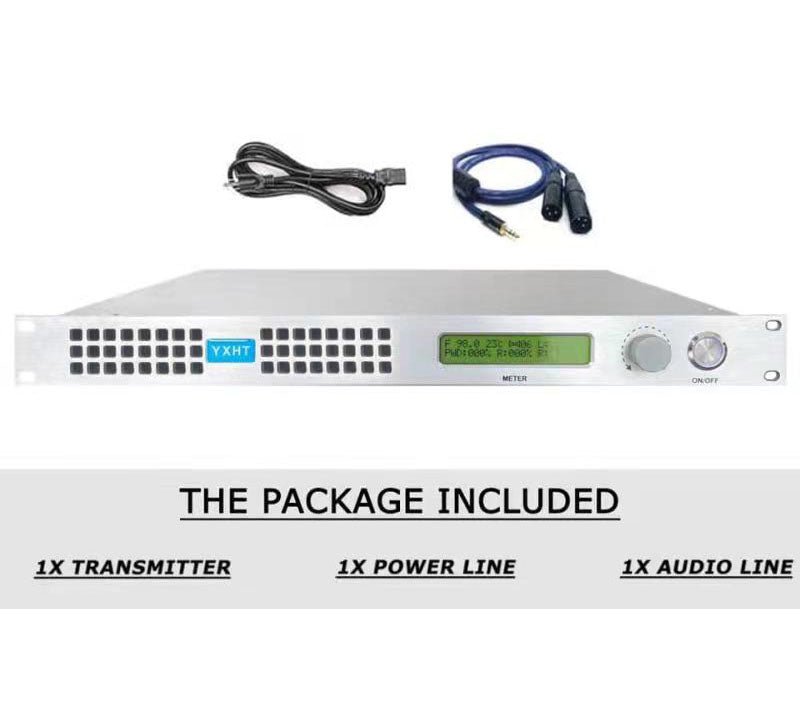

Equipments included
|
1. Frequency Range |
87.5MHz~108 MHz |
|
2. Frequency Setting step |
10KHz |
|
3. Carrier Frequency precision |
±200Hz |
|
4. Residual Wave Radiation |
≥65dBc |
|
5. Audio Input Impedance |
600Ω,Balance |
|
6. Separation |
60dB Pilot Signal Modulation |
|
7. Audio Input Level |
±10dBm,step 0.01dB |
|
8. S/N |
≥75dB(30H~15kHz,100%) |
|
9. Audio Harmonic Distortion |
<0.05% |
|
10. Audio response |
±0.05dB(30Hz~15KHz) |
|
11. Output Load Impedance |
50Ω |
|
12. Output Power |
50W |
|
13. Pre-emphasis |
0μS,50μS,75μS |
|
14. Deviation |
±75kHz |
|
15. Pilot Frequency |
19 kHz±1Hz |
|
16. Sub-carrier Suppression |
≥65dB |
|
17.RF Output Connector |
7/16'(female)or7/8'Flange |
|
18.Size |
460mm*480mm*88mm |
|
19.Weight |
7KG |
|
20.Pilot Signal Modulation |
8%~10% |
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
Warranty: 6 years for all transmitters in our factory.
OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 50W FM Transmitter is continuously adjustable from 0-50 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
