yxhtfmtv

2KW FM Transmitter Complete Set Equipment

Name: 2KW FM Transmitter Complete Set Equipment
Brand: yxhtfmtv
Price: 7460.0 USD
Availability: InStock

$7,460.00

~~$8,360.00~~ $7,460.00

Vente Épuisé

Frais d'expédition calculés à l'étape de paiement.

Variantes de produits

Quantité

Product Attributes

Brand: yxht

Certification: Ce

Place Of Origin: China

Packaging & Delivery

Selling Units:	Bag/Bags
Package Type:	Carton Wooden Box
Picture Example:

Warranty：The warranty of all transmitters in our factory is 6 years.

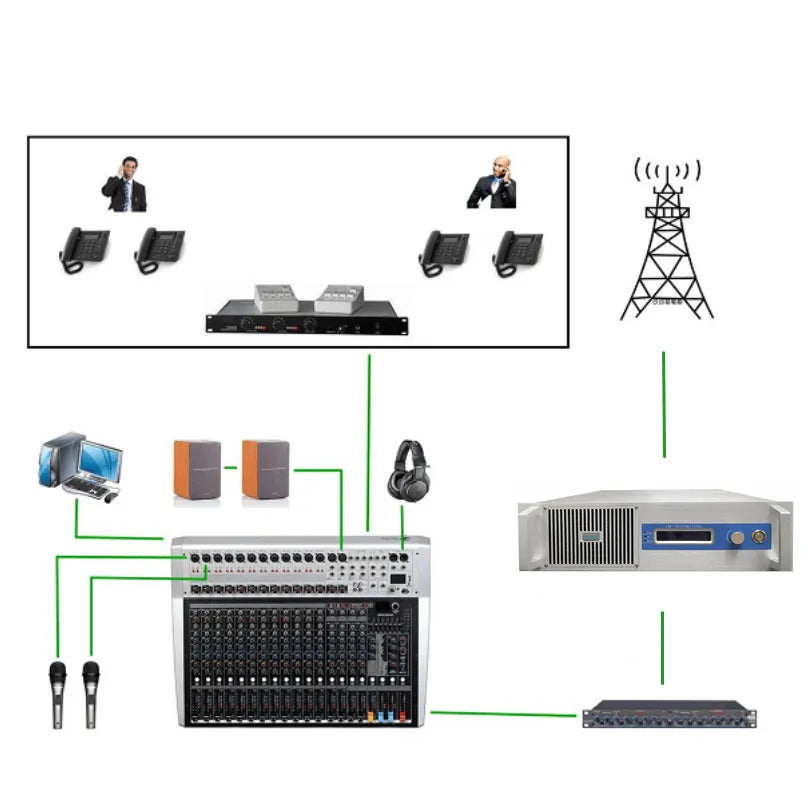

Equipments included:

1.One 2000W FM Transmitte
2. 4 bay Dipole Antenna

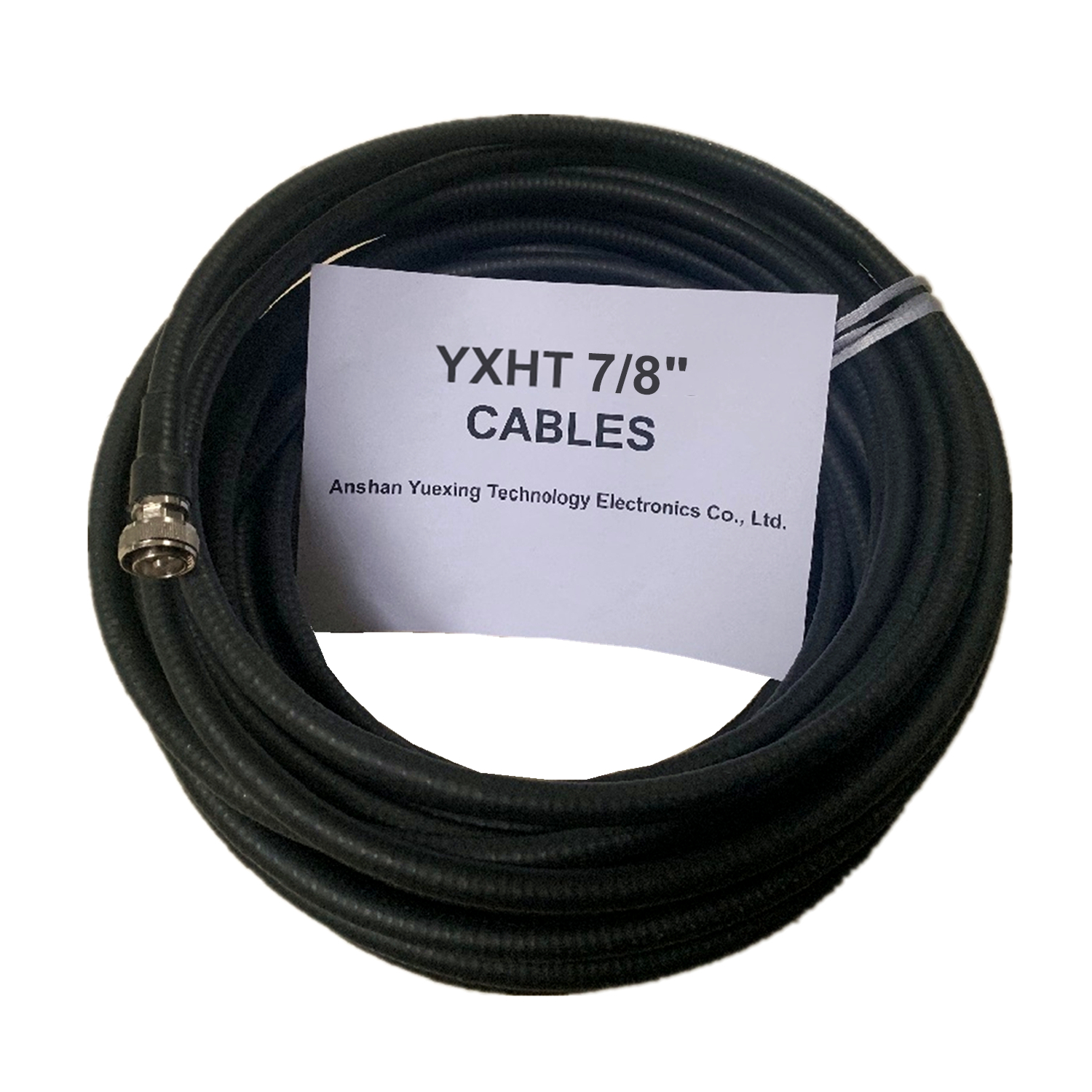

3.One 30M Coaxial Cable 7/8"
4.One 6-way Mixer
5.One Monitor Headphone
6.One Monitor Speaker
7.One Audio Processor
8.One Microphone
9.One Microphone Stand
10.One BOP cover

It can cover 30 to 60KM radius in ideal environment.

Products Description

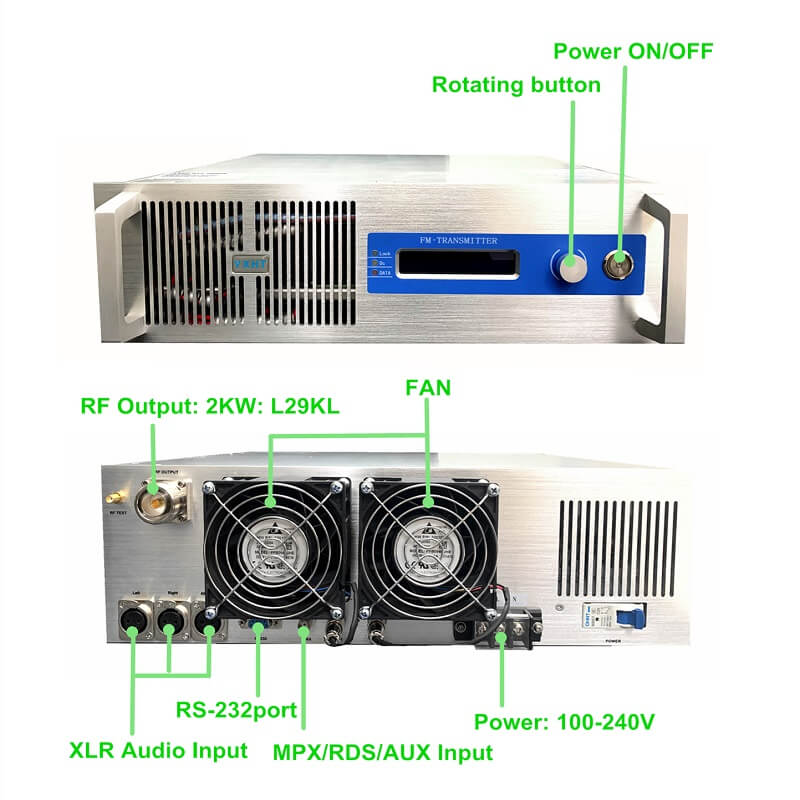

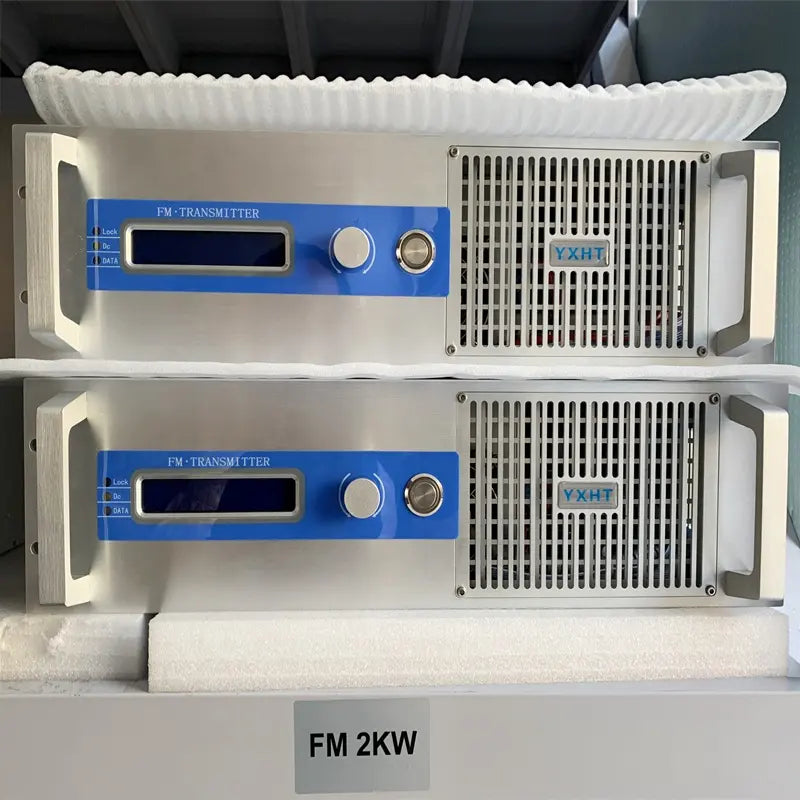

2000W FM Transmitter

General features:
* Professional stereo sound with excellent separation
* Standard 19″ 2H rack, clean design and high quality
* Low distortion and good Signal/Noise ratio
* Built-in CPU system for controlling and monitoring
* Advanced TEMP and SWR protection
* Frequency range: 87.5-108 MHz, 10 KHz/Step
* RF output impedance: 50 Ω

* RF output connector: L29 type -female

* Audio input connector: XLR-female
* MPX and AUX input connector: BNC-female
* Pre-emphasis: 0 / 50 / 75 us
* Mains power supply requirements: 90~264VAC;127~370VDC
* Operating temperature range: -10 to 45 ℃
* Weight: 22 Kg
* Size：460mm*480mm*88mm

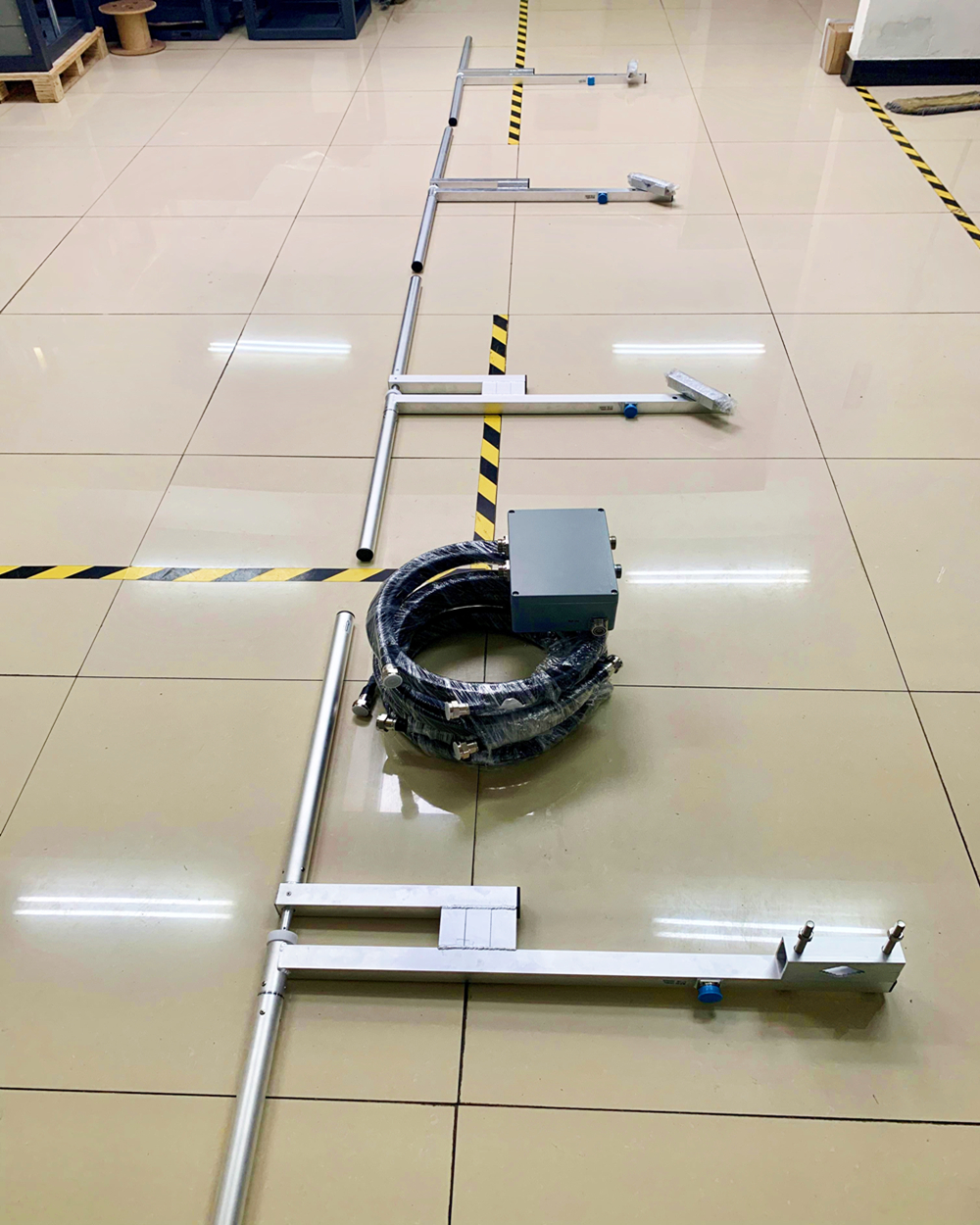

4-Bay Dipole Antenna

Electrical specification:
* Frequency Range: 87.5Mhz-108Mhz
* Impedance:50ohm
* Connector:NK
* VSWR:<1.35:1 MAX

* Polarization:Vertical
* Dimensions:1400*900*200mm
* Weight:22kg with hardware mounting
* Gain:8.0dB
* Max handle power:5KW

*7/8" 30 meters feeder cable

6-way Mixer

1.6/8/12/16channel mono MIC input
2.Provide high quality +48v phantom power
3.Each channel have high&low equalizer,optimized musical performance and adjusted indoor acoustic parameters
4.1 aux sending per channel for pre/post fader swithable for monitoring
5.Built in 10 effects which includes reverb,chorus,flanger,delay,pitch shifter,multieffects,tap function and storable parmeter
settings
6.Built in high quality mp3(U-DISK MP3 INPUT)
7.All channel have peak signal indications and pre-fader monitor options
8.Idependent earphone monitor and level diaplay system.

Audio Processor

Feature
* Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated Dynamic Enhancer, De-Esser and Low Contour
Filter
* Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and
soft-knee characteristics
* Adjustable dynamic Enhancer with level meter for brilliant, lively audio even with heavy compression
* IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible
protection against signal peaks
* Switchable De-esser removes excessive sibilance from your vocal tracks
* IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
* Automatically or manually adjustable attack and release times

Monitor Speaker

Feature
* Bass is 5.25 inch magnetic steel tape
* 1-inch tweeter with magnetic
* Power 50w
* Peak power 70w

* Physical divider
* Treble independent regulation
* Bass independent regulation
* All wooden box 9mm thick planks
* Rated voltage 220v or 110V

Headphone

Feature
* Wear mode: wearing ear
* Headphones Type: Wired
* Whether the microphone: No
* Headset service: Genius
* Frequency response 18-20000Hz
* impedance of 32 Ohms

* SPL 115 dB SPL / V

* harmonic distortion: <1%, maximum
* input power of 200mW
* leather earmuffs, automatic adjustableand comfortable headset
* lightweight form factor
* Back retractable headphones
* excellent cost performance
