10KW FM Transmitter for Radio Station
10KW FM Transmitter for Radio Station
Prix habituel
$21,000.00
Prix habituel
Prix soldé
$21,000.00
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Product Attributes
Brand: yxht
Certification: Ce
Place Of Origin: China
Packaging & Delivery
| Selling Units: | Bag/Bags |
| Package Type: | Carton Wooden Box |
| Picture Example: |

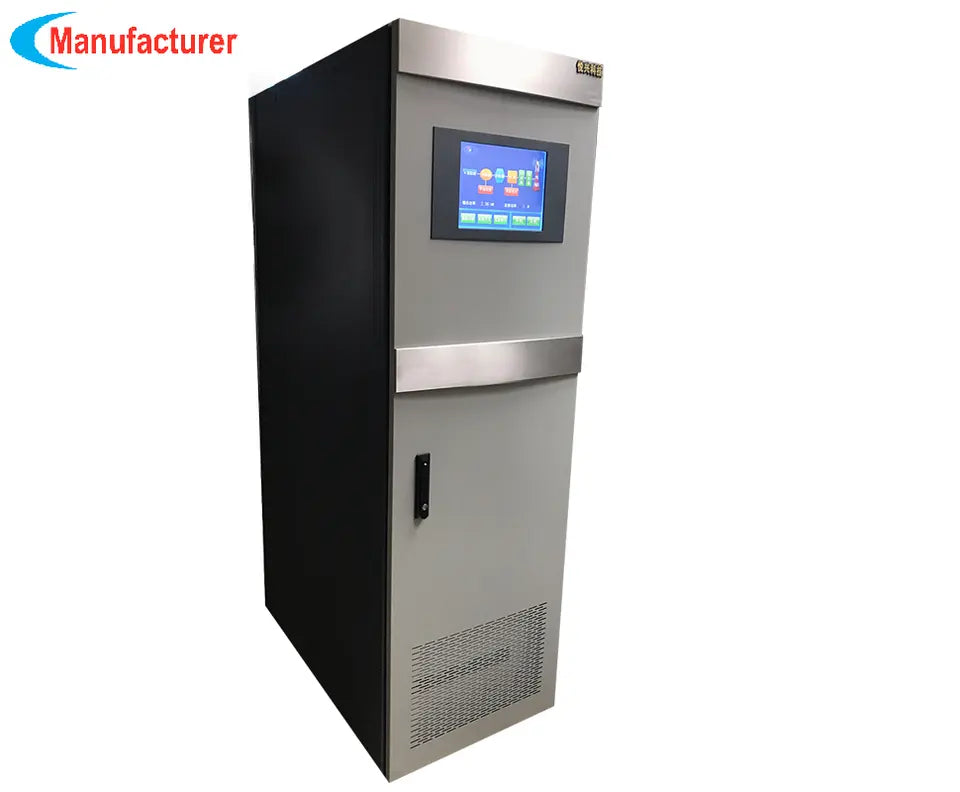

10KW FM Broadcast Transmitter

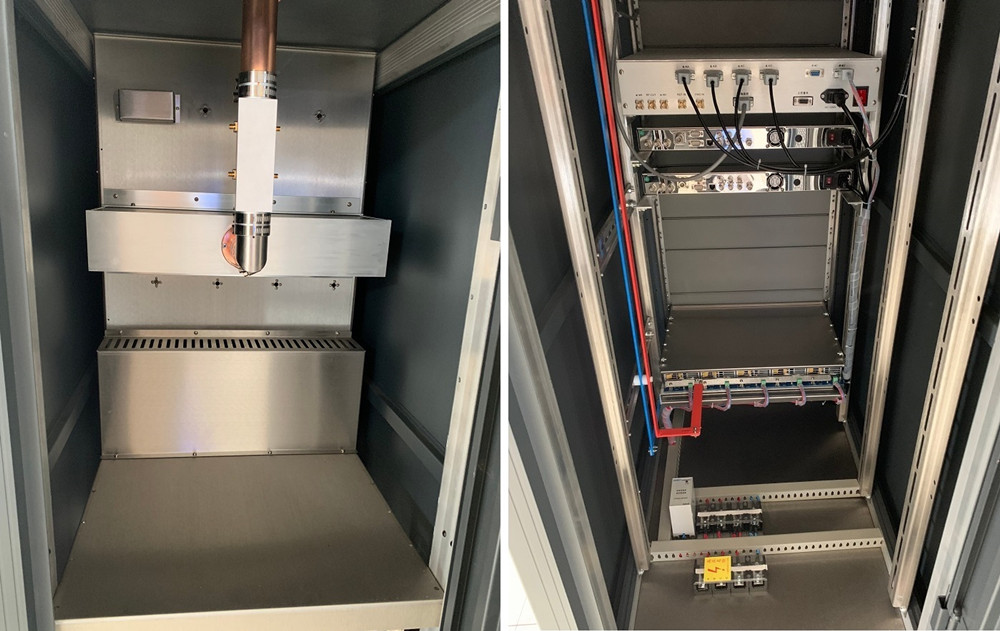

Details Images
The DSP(Digital Sound Processing) technology makes the YXHT- 10000W FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions. As quality assurance, YXHT Provides 6 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.
Warranty：The warranty of all transmitters in our factory is 6 years.
Product Description

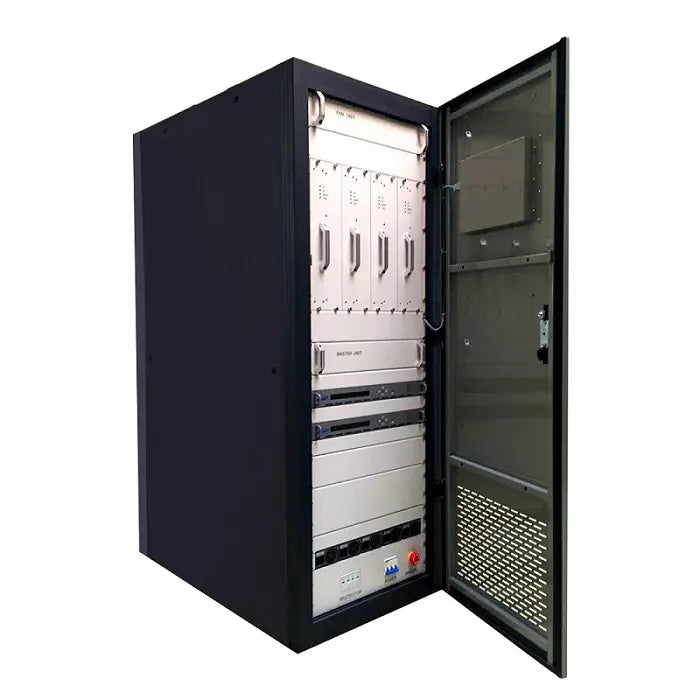

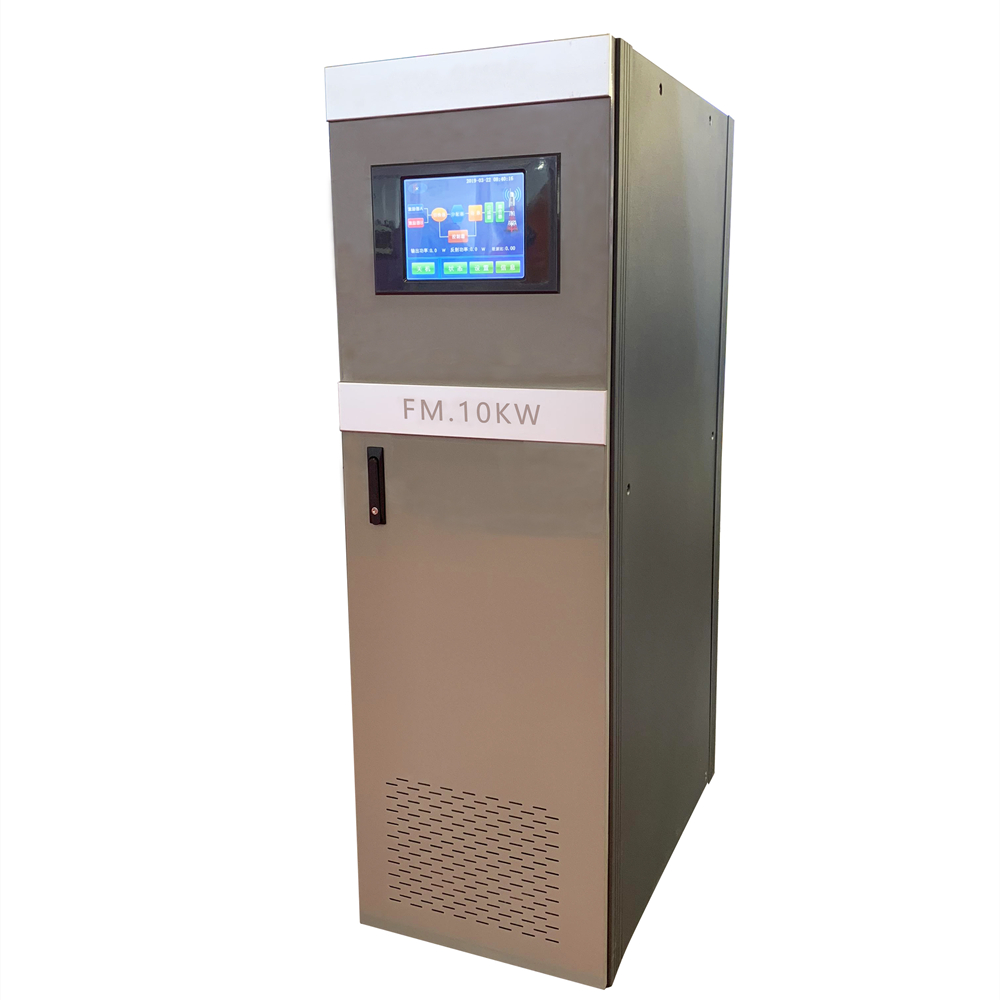

10KW FM Broadcast Transmitter
1. 12 Units 1KW hotplug RF power modules.Total output power is extremely stable thanks to AGC(Automatic Gain Control).
2. 102.5KVA switched power supply modules working parallel.
3. 12-way High efficiency combiner with patent technology.
4. TwoTwo All-digital 30W exciters with switcher used to drive each module directly.
5. Analog and digital(AES/EBU) audio signal input directly.
6. 12.1-inch Color LCD with touch panel displys all the parameters in real time.
7. Five kinds of protect method by MCU, like over Pf,over SWR,over Temp,Voltage,Current.

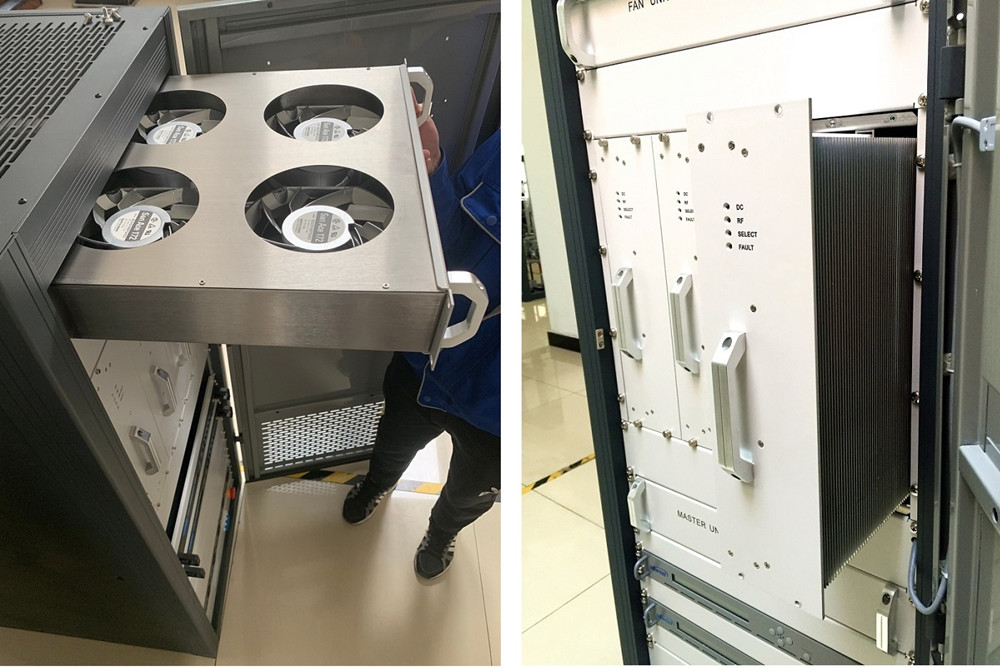

8. Real hot-plug structure,the modules can be repairing at non-stop condition.
9. RS232/RS485 Communication interface ready for remote system.
2. 102.5KVA switched power supply modules working parallel.
3. 12-way High efficiency combiner with patent technology.
4. TwoTwo All-digital 30W exciters with switcher used to drive each module directly.
5. Analog and digital(AES/EBU) audio signal input directly.
6. 12.1-inch Color LCD with touch panel displys all the parameters in real time.
7. Five kinds of protect method by MCU, like over Pf,over SWR,over Temp,Voltage,Current.
8. Real hot-plug structure,the modules can be repairing at non-stop condition.
9. RS232/RS485 Communication interface ready for remote system.
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range. 2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile. 3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
|
1. Frequency Range:
|
87.0MHz~108 MHz
|
|
2. Frequency Setting step:
|
10KHz
|
|
3. Carrier Frequency precision:
|
200Hz
|
|
4. Residual Wave Radiation:
|
75dBc
|
|
5. AnalogaudioInputImpedance:
|
600Ω,Balance AES/EBU digital audio input impedance: 110Ω, Balance
|
|
6. Separation:
|
>50dB,30Hz~15KHz
|
|
7. Audio Input Level:
|
±10dBm,step 0.01dB
|
|
8. S/N:
|
>75dB(1kHz,100%modulation)
|
|
9. Audio Harmonic Distortion:
|
<0.1%
|
|
10. Audio response:
|
±0.1dB(10Hz~15KHz)
|
|
11. Output Load Impedance:
|
50Ω
|
|
12. Output Power:
|
0W~10KW
|
|
13. Pre-emphasis:
|
0μS,50μS,75μS
|
|
14. Deviation:
|
±75kHz
|
|
15. Pilot Frequency:
|
19 kHz; 1Hz
|
|
16. RF Output Connector:
|
3+1/8'
|
|
17.Size:
|
586mm*1860mm*1000mm
|
|
18.Weight:
|
300KG
|
