10KW FM Transmitter Complete Package of FM Radio Station

10KW FM Transmitter Complete Package of FM Radio Station

Prix habituel $29,999.00
Prix habituel Prix soldé $29,999.00
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Product Attributes

Brandyxht

CertificationCe

Place Of OriginChina

Packaging & Delivery
Selling Units: Bag/Bags
Package Type: Carton Wooden Box
Picture Example:

Products Description

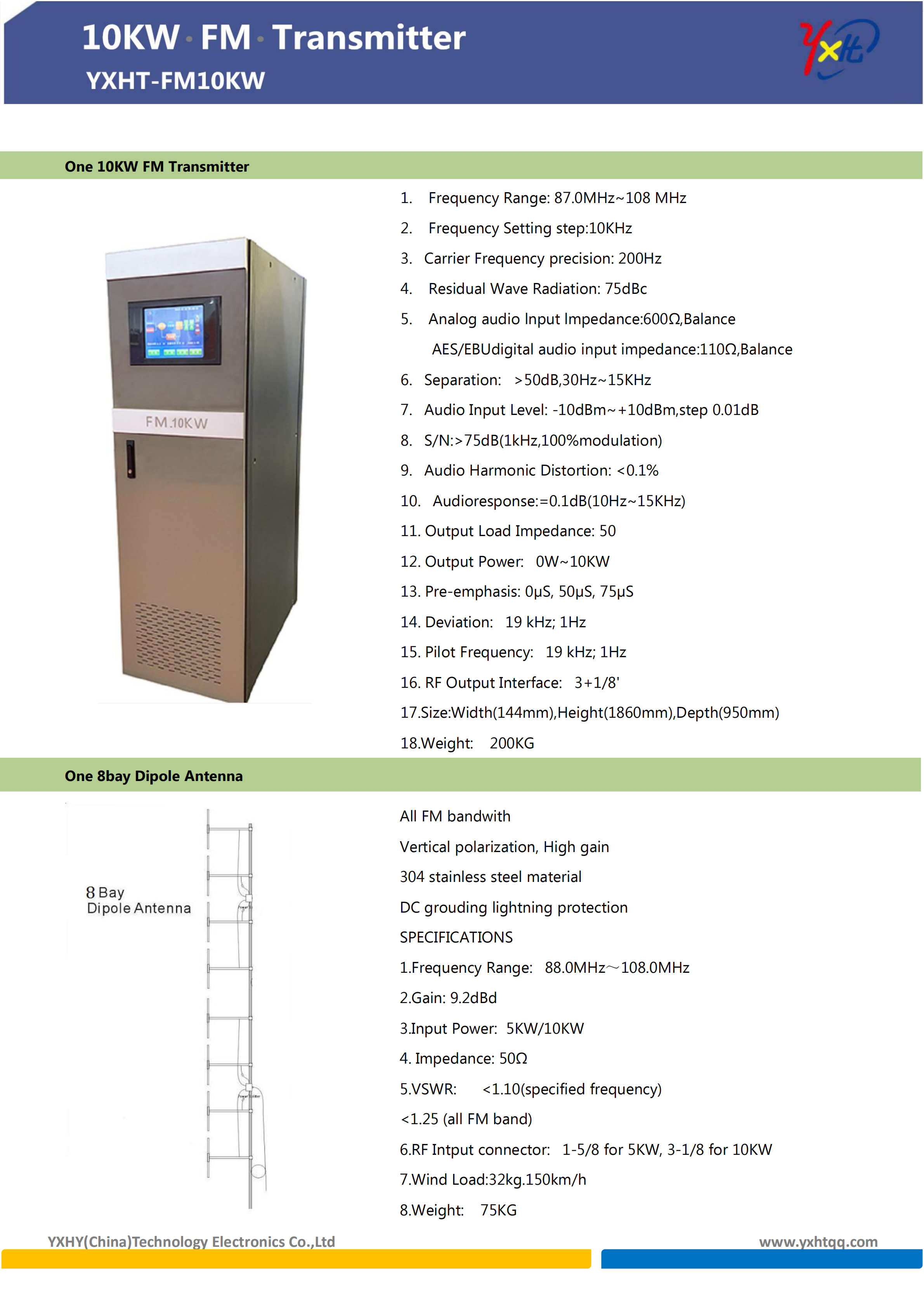

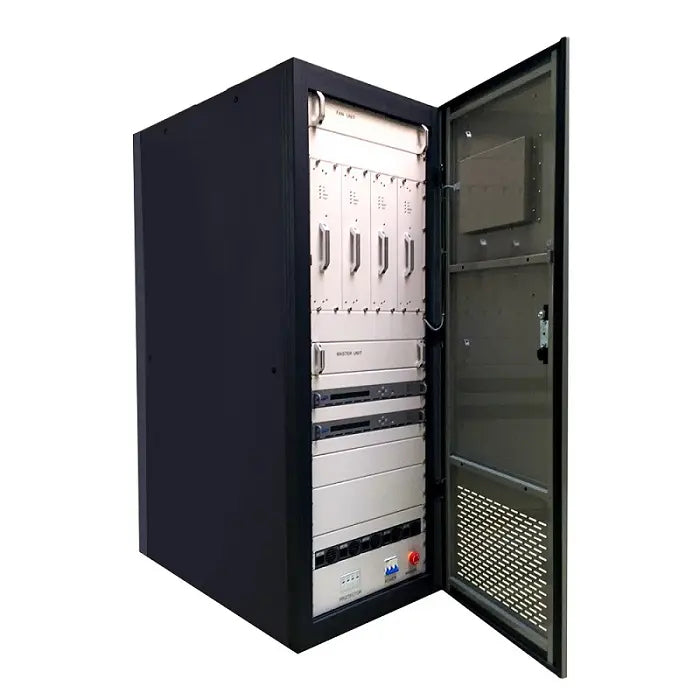

10KW FM Broadcast Transmitter
1. 12 Units 1KW hotplug RF power modules.Total output power is extremely stable thanks to AGC(Automatic Gain Control).
2. 102.5KVA switched power supply modules working parallel.
3. 12-way High efficiency combiner with patent technology.
4. TwoTwo All-digital 30W exciters with switcher used to drive each module directly.​
5. Analog and digital(AES/EBU) audio signal input directly.
6. 12.1-inch Color LCD with touch panel displys all the parameters in real time.
7. Five kinds of protect method by MCU, like over Pf,over SWR,over Temp,Voltage,Current.
8. Real hot-plug structure,the modules can be repairing at non-stop condition.
9. RS232/RS485 Communication interface ready for remote system.

FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

Certifications

Hf6a8958593e543c296e6adf4256583dee



Hbdd860162d4d41a4a98ad924e872abf9U
