1000w Fm Radio Transmitter complete radio station package

1000W Professional Fm Broadcast Transmitter with Player

1kw FM Transmitter features by its human-friendly touch screen operation interface, highly stable and reliable performance and near CD quality stereo sound effect, which make it a remarkable improvement in the whole market, and leads to its high popularity in using for the most of radio stations.
Engineered to meet the needs of the most demanding network operators and stations, it combines reliable performance, efficiency, and state-of-the-art innovation into a compact, yet modular 3U chassis design.
Benefit from a robust design, easy maintenance, a multitude of onboard features and the first patented Artificial Intelligence for FM radio, SmartFM.
This advanced broadcasting solution is the result of decades of experience and a mission to bring to market the best FM transmitters in terms of quality, total cost of ownership, and audio quality.
Features:
· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.

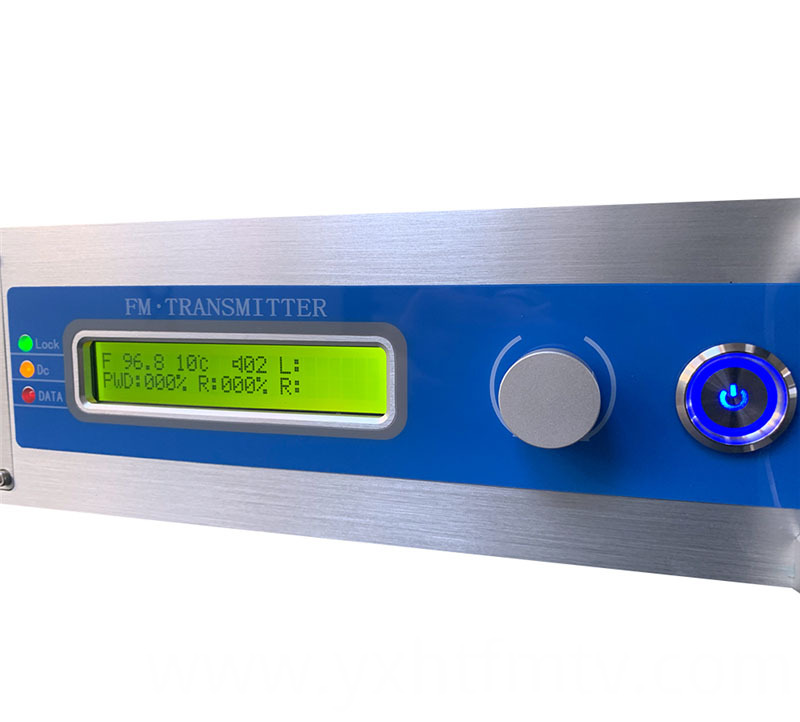

· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure

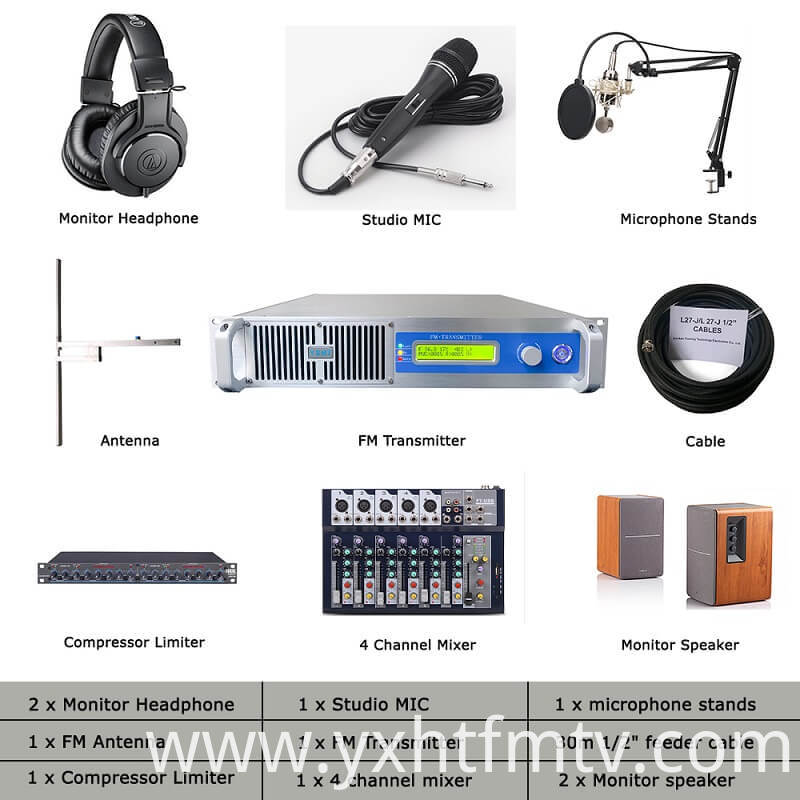

 Equipments included:
1.One 1000W FM Transmitte
2.One Dipole Antenna
3.One Coaxial Cable
4.One 6-way Mixer
5.One Monitor Headphone
6.One Monitor Speaker
7.One Audio Processor
8.One Microphone
9.One Microphone Stand
10.One BOP cover

It can cover 20 to 25KM radius in ideal environment.

 Quick Details

Frequency Range: 87.0MHz~108 MHz
Frequency Setting step: 10KHz
Carrier Frequency precision: ±200Hz
Residual Wave Radiation: ≥65dBc
Audio Input Impedance: 600Ω,Balance
Separation: 60dB Pilot Signal Modulation:8%~10%
Audio Input Level: ±10dBm,step 0.01dB
S/N: 75dB(30H~15kHz,100%).
Audio Harmonic Distortion: <0.05%
Audio response: ±0.05dB(30Hz~15KHz)
Certification: CNAS

Output Load Impedance: 50Ω
Output Power: 1000W
Pre-emphasis: 0μS,50μS,75μS
Deviation: ±75kHz
Pilot Frequency: 19 kHz±1Hz
Sub-carrier Suppression: ≥65dB
RF Output Connector: 7/16'(female)or7/8'Flange
Size: 460mm*480mm*88mm
Weight: 16KG

Pilot Signal Modulation: 8%~10%

FREQUENTLY APPLICABLE USES:

1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations

 OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 500W FM Transmitter is continuously adjustable from 0-500 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...500w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
